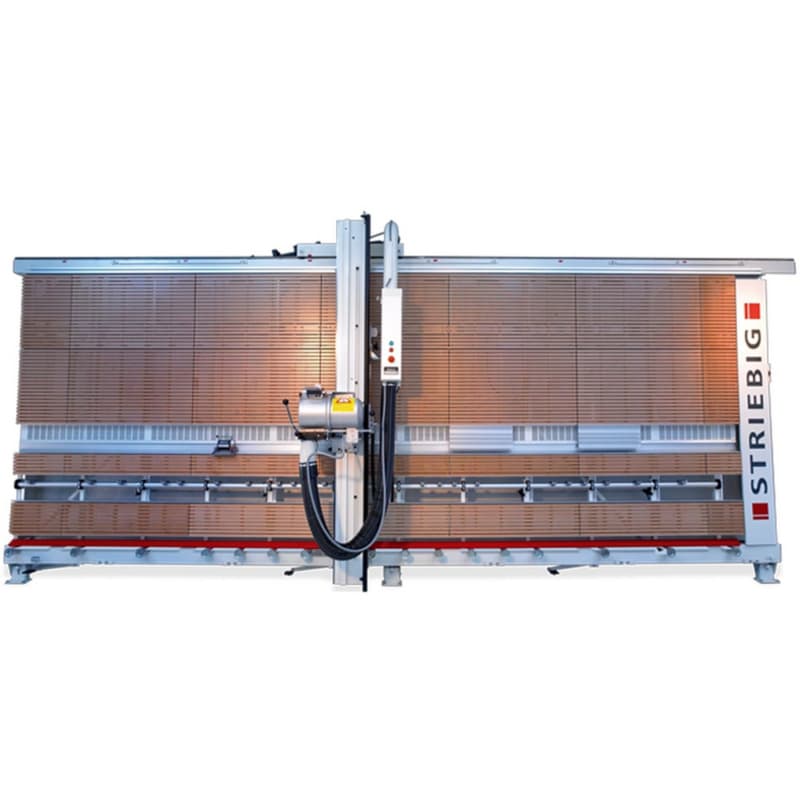

The Striebig 80 mm Vertical Panel Saw STANDARD embodies the legacy of STRIEBIG, delivering proven technology and modern innovations for unparalleled precision and ease of use. Designed for hand-guided sawing, it offers two versatile versions (TRK1 and TRK2) and an attractive Comfort Package, opening up a world of possibilities in wood processing. With a solid, self-supporting welded frame, high-torque 5.5 kW (7.5 HP) motor, and comprehensive standard equipment, it guarantees long-term cutting precision and maximum investment security. Experience the perfect blend of performance, versatility, and comfort that has made this saw a global success.

Key Features & Benefits

Unrivaled Stability & Precision Consistent Quality in Every Cut

• The robust, self-supporting welded frame is the heart of the STANDARD S, ensuring unmatched structural stability.
• Upper guide rail, central support, and roller support are perfectly parallel, guaranteeing precise, repeatable cuts over many years.
• High-quality saw beam steel construction with robust bearing of the motor carriage maintains cutting accuracy and minimizes maintenance.

Advanced Performance & Versatility Adapted to Every Production Need

• Powered by a high-torque 5.5 kW (7.5 HP) motor, it delivers consistent, powerful performance for high production demands.
• Offers two versions (TRK1 with wooden support wall and TRK2 with aluminum slatted frame), providing flexible solutions for different applications.
• The optional Comfort Package, featuring pneumatic clamping, digital measuring systems, and pneumatically braked support rollers, expands functionality and simplifies operation.

Enhanced Safety & User Comfort Designed for Seamless Operation

• Integrated TRK dust extraction and super-silent noise insulation create a clean, quiet workspace, reducing downtime and operator fatigue.
• Electromagnetic motor brake and ProLock easy-fix tool clamping system ensure safe, reliable operation, protecting both the operator and the machine.
• Additional features such as the laser-supported display for horizontal cuts and integrated cutting gauge ensure precise material handling and optimal productivity.
• Compressed Air Connection: 6-10 Bar
• Cutting Depth: 80 mm
• Extraction Connection: 140 mm
• Mains Connection: 3 x 400 V / 50 Hz
• Saw Blade Bore: 30 mm
• Saw Blade Diameter: 300 mm
• Saw Blade Speed: 4800 RPM
• Wattage: 7.3 kW
