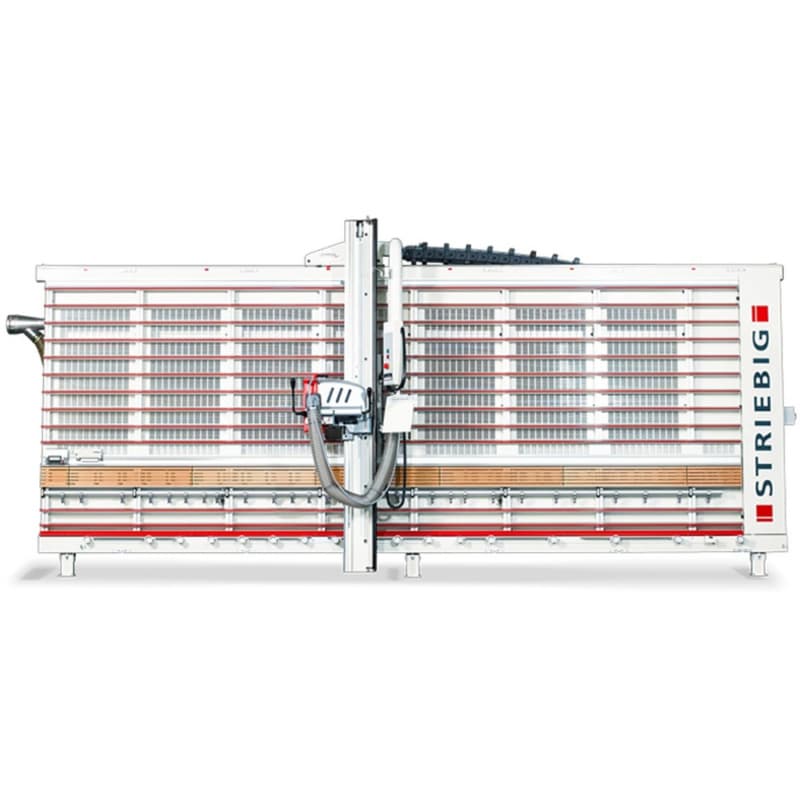

The Striebig 60 mm Vertical Panel Saw COMPACT PLUS is a flexible and economical entry into high-precision wood processing. Offering a comprehensive size grid that covers cutting areas from 3100 x 1644 mm to 5350 x 2200 mm, it adapts to a wide range of production needs. Built with a robust steel saw beam featuring a twin interlocking mechanism, it guarantees flawless angular accuracy and lasting durability. Powered by a reliable 3.9 kW (5.3 HP) motor with low-vibration performance and advanced TRK dust extraction, the COMPACT PLUS ensures consistent, precise cuts with minimal downtime.
Key Features & Benefits
Unmatched Cutting Precision Achieve Flawless, Consistent Cuts
• The heavy-duty steel saw beam with twin interlocking mechanism ensures perfect angular accuracy, delivering consistent precision.
• A solid, self-supporting welded frame provides optimal stability, minimizing vibration and ensuring repeatable results.
• High-quality components work together seamlessly, reducing the need for frequent adjustments and maintenance.
Powerful and Reliable Operation Engineered for Efficiency
• The robust 3.9 kW (5.3 HP) motor offers strong, low-vibration performance, ensuring smooth, efficient cutting.
• Advanced motor integration maximizes power usage, leading to enhanced productivity and reduced energy consumption.
• Backlash-free operation and precise motor carriage bearings guarantee long-term reliability, even under heavy production loads.
Advanced Support and Safety Optimized for Your Workflow
• A wide sliding table and up to 17 support rollers on ball bearings deliver excellent workpiece support, ensuring accurate alignment.
• Divided central support and integrated small workpiece support maintain optimum cutting height, enhancing overall stability.
• Integrated TRK dust extraction with super-silent noise insulation creates a cleaner, safer work environment, reducing post-cut cleanup and improving operator comfort.
- Cutting Depth: 60 mm
- Mains Connection: 3 x 400 V / 50 Hz
- Saw Blade Bore: 30 mm *1
- Saw Blade Diameter: 250 mm
- Saw Blade Speed: 5250 RPM
- Wattage: 5.9 kW
