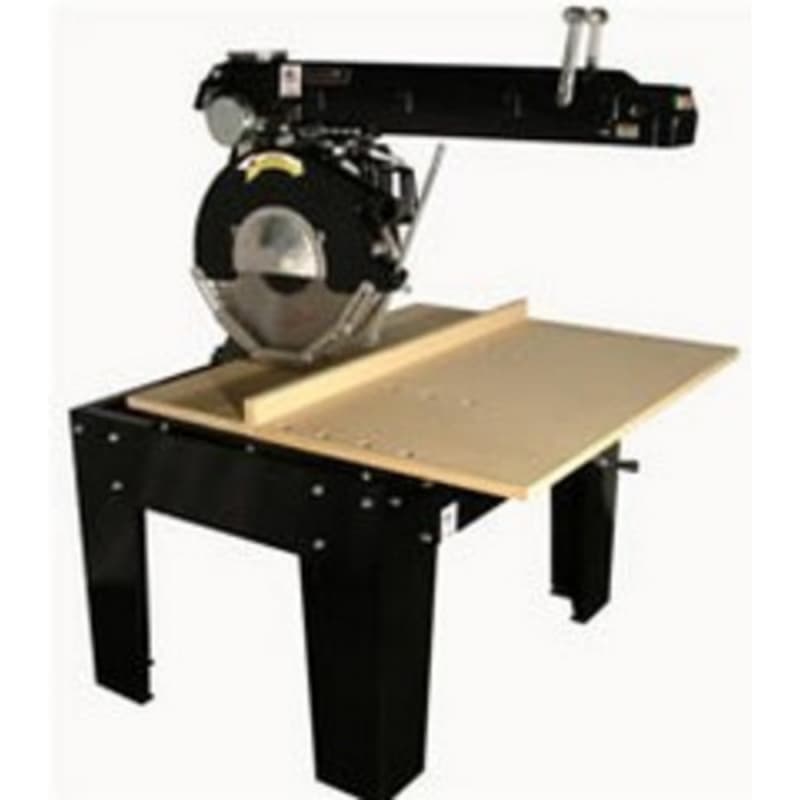

Original Saw Company, known for its heritage of American-made industrial cutting equipment, delivers power and durability with the 3554 Super Duty Radial Arm Saw. Featuring a massive 22.5” blade and a powerful 7.5 HP motor, this saw is built for the heaviest-duty woodcutting jobs. With the ability to make 8" deep cuts in one pass and handle wide crosscuts up to 24.75”, it's engineered for precision and endurance. Whether in manufacturing, timber framing, or truss assembly, this saw is a workhorse for high-output environments.
- Cuts up to 8" deep in a single pass, ideal for large beams and dense materials.
- Crosscut range from 17.75" to 24.75", covering wide-format panels and framing lumber.
- Supports compound miter, bevel, and standard miter cuts, maximizing versatility for all job types.
- Features cast and ductile iron components that reduce vibration and improve cut stability.
- The powder-coated steel frame resists corrosion and maintains structural integrity under pressure.
- Proudly manufactured in the USA, ensuring consistent quality and dependable performance.
- Manual hand crank provides refined control for custom or intricate cuts.
- Optional semi-automatic electronic crossfeed improves efficiency in repetitive operations.
- Blade returns to home position automatically in semi-auto mode, reducing manual handling.
- E-Stop button instantly shuts off power for quick emergency response.
- Variable Frequency Drive (VFD) smooths blade start-up and controlled braking to protect components.
- A full HDPE lower guard shields the operator during active cuts.
- TEFC (Totally Enclosed Fan Cooled) motor ensures durability in dusty industrial settings.
- VFD technology improves energy efficiency while minimizing wear.
- Compatible with 208V, 230V, 460V, or 575V 3-phase power, for versatile installation.
- T-slot extruded metal table offers solid support and secure clamping.
- Optional HDPE inserts provide a long-lasting, low-friction surface.
- Bolt-on enclosed guard with dust port and clamps enhances safety and debris control.
- Standard manual clamps glide smoothly through T-slot channels.
- Optional two-front pneumatic clamps allow for quick material securing.
- Four-point pneumatic system delivers high hold strength for irregular or oversized stock.
- Front-located lower elevation system simplifies blade height adjustments.
- Reduces operator fatigue and streamlines job setup.
- Ideal for quick shifts between dado, bevel, and crosscut tasks.
- Arm: Medium
- Max Crosscut: 16" Wide
- Max Miter at 3/4": 12-1/2", 22"
- Blade Size: 22.5"
- Max Depth of Cut: 8"
- Table Height: 33"
