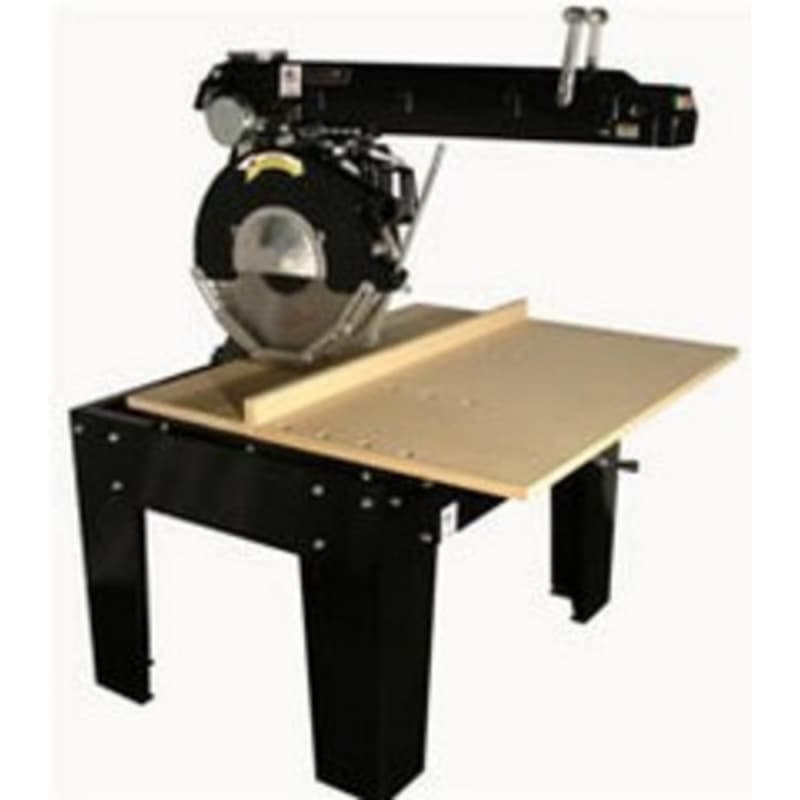

The Original Saw 1 Phase Super Duty Radial Arm Saw 3556 is an industrial workhorse built for rigorous production environments. This 16" saw delivers a 4 3/8" depth of cut and a crosscut range from 24" to 32". Its 850-pound heavy-duty construction provides exceptional stability. Made in the USA, it reflects Original Saw Company's commitment to quality, innovation, and reliability.

• Cutting Performance: Handles crosscuts, bevel cuts, miter cuts, compound miter cuts, dado operations, and rip cuts (with optional Rip Kit). The Rip Kit enables safe lengthwise cuts with an integrated anti-kickback assembly. Works on wood, wood products, and plastics.
• Capacity: 4 3/8" depth of cut for thick materials. Crosscut range from 24" to 32" for large panels, doors, and structural components.
• Construction: Heavy cast iron arms and ductile iron components for vibration-free operation. Powder-coated, heavy-gauge steel frame and legs withstand harsh industrial environments. Precision carriage rides on 8 wide-contact, double-row ball bearings.
• Safety Features: Integrated E-Stop cuts power immediately. HDPE lower blade guard provides full blade coverage. Automatic blade braking system rapidly stops the blade after operation.
• Work Surface: Standard 33" MDF table top with routed-in aluminum T-slots for secure material clamping. Upgrade options include T-slot extruded metal tables and T-slot tables with HDPE inserts. Bolt-on enclosed table guard restricts blade access.
• Clamping & Feed: Manual clamps glide in aluminum T-slots. Optional pneumatic clamping systems available (two-front pushing or four-point clamping). Feed system options: manual pull handle, hand crank operation, or semi-automatic electronic cross feed.
• Motor: 7.5 HP VFD motor configured as 5 HP for precise speed control and energy efficiency. 1 phase operation. Available voltages: 208V, 230V, 460V, and 575V.
