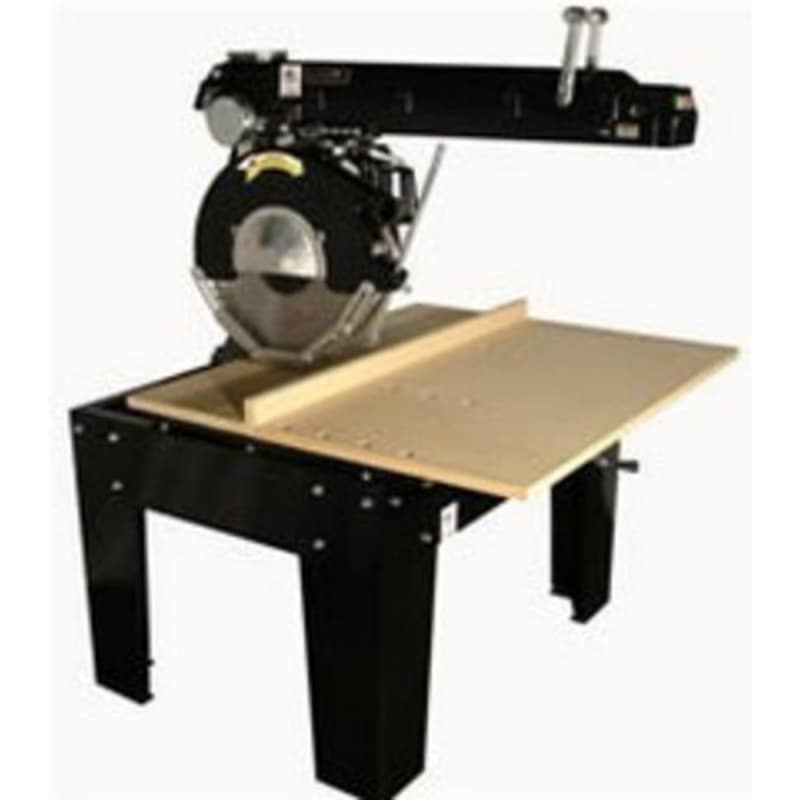

The Original Saw 3558 Super Duty Radial Arm Saw is built for serious industrial woodcutting in high-volume environments. It delivers precision, consistency, and long-lasting performance with a massive 7" depth of cut, 23" to 31" crosscut capacity, and a rugged 850-lb build. Proudly manufactured in the USA, it reflects the Original Saw Company's legacy of engineering excellence and industrial-grade reliability.

• Cutting Power: Handles crosscuts, bevels, miters, and compound miter cuts. Depth of cut reaches 7". Crosscut capacity ranges from 23" to 31".
• Durable Construction: Made with heavy cast and ductile iron to reduce vibration and enhance cut accuracy. Powder-coated, heavy-gauge steel frame resists wear. Weighs 850 lbs for unbeatable stability.
• Smooth Carriage Travel: Precision carriage rides on 8 wide-contact, double-row ball bearings for smooth, controlled blade movement and repeatable, professional results.
• Blade Height Adjustment: Front lower elevation system allows operator-friendly blade height adjustments, reducing setup time and operator fatigue.
• Safety Features: Emergency stop button immediately halts operation and engages blade brake. Automatic blade braking system improves response time. Complete upper and lower blade guards prevent accidental contact.
• Clamping Options: Standard manual clamps fit into aluminum T-slots. Optional pneumatic systems (2-point and 4-point) offer faster, hands-free clamping suitable for irregular materials and repetitive cutting tasks.
• Feed Systems: Manual pull handle allows precision control. Optional hand crank improves leverage for thicker materials and metal. Semi-automatic feed option with push-button control boosts production speed.
• Motor: 7.5 HP TEFC motor for reliable performance in harsh environments. VFD (Variable Frequency Drive) provides soft start over 8 seconds to reduce wear. Available in 3-phase power: 208V, 230V, 460V, or 575V.
• Work Surface: Standard MDF tabletop with T-slots for strong clamping. Optional T-slot extruded metal or HDPE-insert tables available. Optional bolt-on enclosed table guard includes clamps and dust port.
