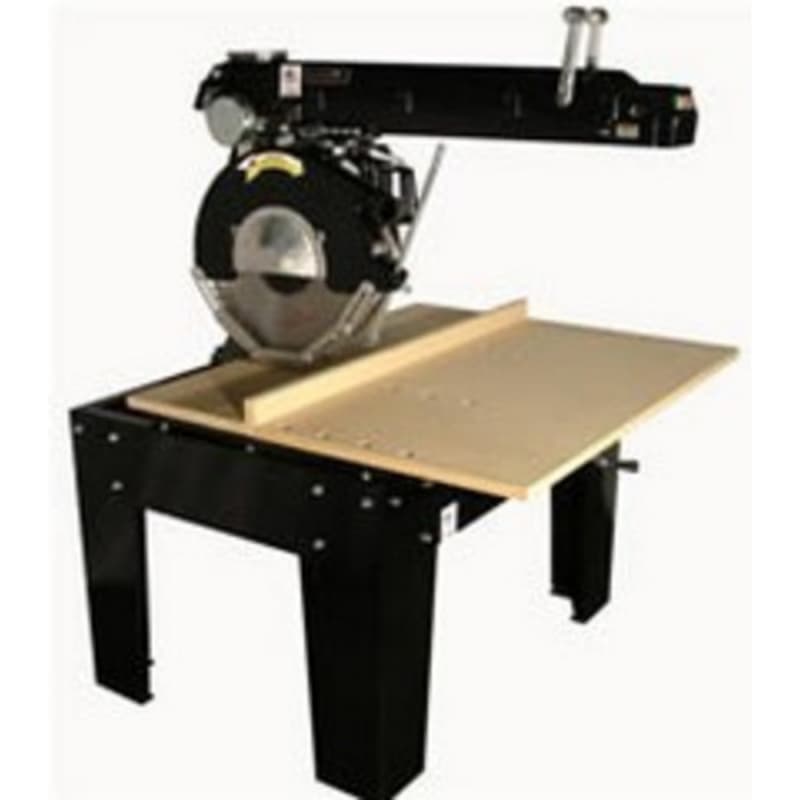

The Original Saw 3559 Super Duty Radial Arm Saw is built for demanding industrial woodcutting environments. Outfitted with a 22.5" blade and a robust 7.5 HP TEFC motor, it effortlessly handles high-volume production tasks. Whether you're working with large beams or structural components, this saw ensures clean, powerful cuts with accuracy. Proudly made in the USA, it's a testament to Original Saw Company's commitment to long-lasting performance and safety.
Key Features & Benefits
Cut More in Less Time with Industrial-Grade Cutting Capacity
• Cuts up to 8" deep in a single pass, ideal for thick beams and structural woodwork.
• Offers a wide crosscut range from 17-3/4" to 24-3/4" for large panels and components.
• Performs bevel, miter, and compound cuts with precision and consistency.
Engineered for Longevity with Heavy-Duty American Construction
• Built with cast and ductile iron components to minimize vibration and ensure stable cuts.
• Heavy-gauge, powder-coated steel frame resists corrosion and wear.
• Proudly manufactured in the USA, reflecting high-quality craftsmanship.
Precise Feed Control for All Workloads
• Manual hand crank gives operators control for intricate and consistent cutting.
• Optional semi-automatic crossfeed system increases speed and productivity.
• Designed to support both small-batch precision work and repetitive tasks.
Built-in Safety to Keep Operators Protected
• E-Stop safety switch cuts power instantly during emergencies.
• Variable Frequency Drive (VFD) smooths blade acceleration and braking.
• Full HDPE blade guard shields the cutting area without obstructing visibility.
Powerful Motor with Smart Efficiency
• 7.5 HP TEFC motor stays protected from dust and debris for long-lasting use.
• Integrated VFD system reduces energy consumption and mechanical stress.
• Available in multiple voltages: 208V, 230V, 460V, or 575V (3-phase).
Durable Work Table for Heavy Materials
• T-slot extruded metal table provides unmatched stability during cutting.
• Optional HDPE inserts deliver a smooth, long-lasting surface.
• Add-on enclosed table guard includes clamps and a dust port for cleaner operations.
Versatile Clamping Options for Safer Cutting
• Standard manual clamps glide smoothly in the T-slots to hold materials firmly.
• Upgrade to a two-front pneumatic system for faster repetitive work.
• Four-point pneumatic clamps offer maximum stability for large or irregular pieces.
Easy Height Adjustments with Front Lower Elevation
• Front-positioned lower elevation system allows fast and ergonomic height adjustments.
• Reduces strain on the operator during setup or height changes.
• Ensures precision in various applications, including bevels and dado cuts.
Industries That Trust the 3559 Super Duty Radial Arm Saw
• Manufacturing Plants – For continuous, high-volume cuts.
• Timber Construction – Ideal for prefabricated homes and beam cutting.
• Truss & Door Plants – Precision-cutting for frame production.
• Crating & Packaging – Efficiently builds large wooden crates.
• Woodworking Shops – Reliable for detailed and demanding cuts.
- Capable of Rip Cuts: No
- Cuttable Material: Plastic, Wood
- Max Crosscut: 24" Wide
- Phases of Voltage Available: 3 Phase
- Recommended Usage: Capable of Running 2-3 Shifts Per Day
- Voltage Options: 230, 460
- Arm: Long
- Max Miter at 3/4": 12-1/2", 22"
- Pneumatic Clamping Ability: Yes (Add on)
- Powerfeed Option: Yes (Add On)
- Blade Size: 22.5" /571 mm
- Hertz: 50/60
- Max Depth Cut: 8" Deep
- Motor: 7.5 HP
- Shipping Dimensions: 72" x 52" x 48"
- Shipping Weight: 1000 lbs
- Table Height: 33" / 838 mm
