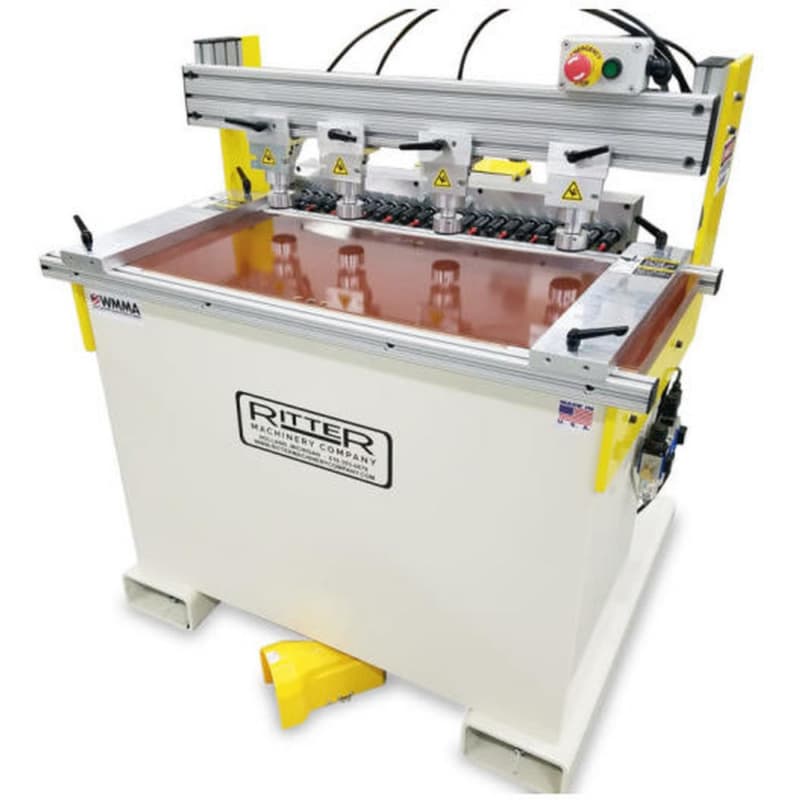

The RITTER R823 is a powerful 23-spindle horizontal boring solution, ideal for supplementing CNC nested-based routers and point-to-point operations. With adjustable depth and height, secure pneumatic clamping, and a robust spindle configuration, the R823 ensures fast, accurate boring for wood components in cabinetry and furniture production.
Key Features & Benefits
Efficient High-Volume Drilling
• 23-spindle gear-driven drill head on 32mm centers for uniform shelf and dowel hole spacing
• (12) right-hand and (11) left-hand spindles deliver balance and flexible drilling configurations
• 10mm bored female collets with set screw lock ensure stability and tool security
Fully Adjustable for Diverse Boring Needs
• Adjustable boring depth from 0–2" accommodates varying component thicknesses
• Height adjustment range of 0–3" enables greater customization for different applications
• Carriage adjusting jack provides precise setup and repeatable alignment
Secure and Smooth Operation
• (4) 2.00" bore pneumatic clamping cylinders hold the workpiece firmly during the cycle
• (2) end boring fences improve drilling accuracy with consistent hole placement
• Foot-actuated boring cycle offers hands-free functionality, improving operator safety and efficiency
Designed for Operator Control and Safety
• Integrated emergency stop button allows immediate shutdown in case of issues
• Pneumatic clamps provide firm, vibration-free holding throughout the boring process
• Simple, intuitive controls streamline operations for maximum output
- Max. Panel Thickness: 2.125"
- No. Of Spindles: 23
- Spindle Spacing: 32 mm
- HP: 3
- Working Height: 33.5"
- Spindle Speed: 3450 RPM
- Work Table Dimensions: 20" X 42"
- Shipping Dimensions: 53" X 52" X 53"
- Electrical: 230 V, 3 , 60 Hz, 60 Amp or 460 V, 3 , 60 Hz, 30 Amp
- Footprint: 48" x 49"
- Shipping Weight: 1485 lbs
- Air Consumption: 2 CFM at 80 – 100 PSI
