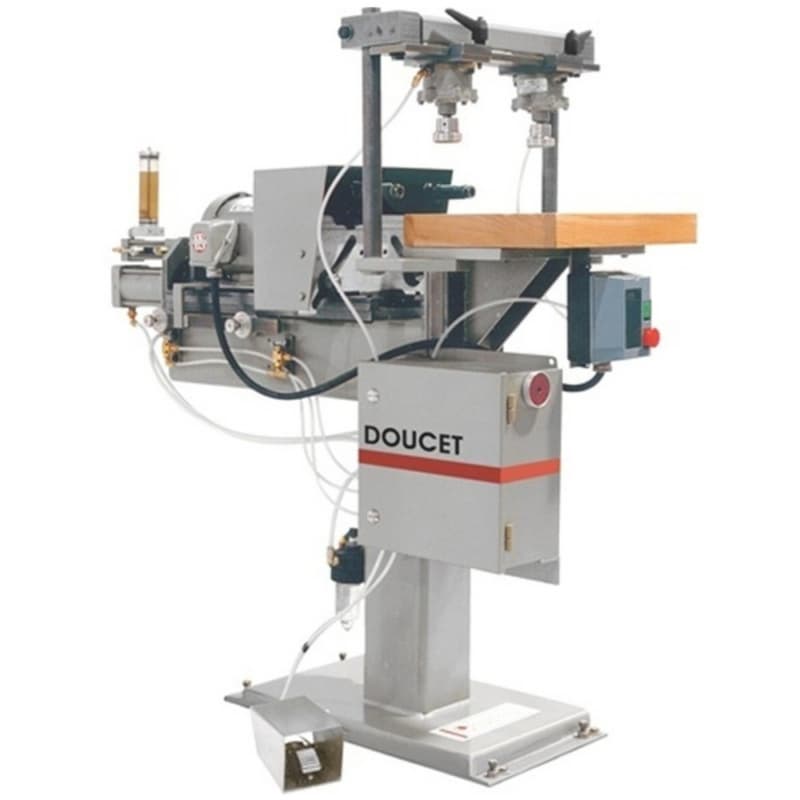

The Doucet T-1050 Sicotte Horizontal Boring Machine is a high-performance solution for precision boring applications, designed to handle demanding tasks such as dowel assembly. Equipped with a sturdy hardwood table and advanced air-operated systems, it ensures reliability and accuracy in every operation. This machine is perfect for both small and large-scale projects, offering enhanced flexibility with its adjustable spindles and air/oil feed system. Whether you're looking to improve your production speed or achieve superior precision, the T-1050 is engineered to meet your needs.
Key Features & Benefits
Powerful Precision for Demanding Applications
• 2-spindle carriage with 4" horizontal stroke for precise and consistent boring operations
• 1 HP drive group ensures reliable power for continuous high-performance use
• Air-operated controls allow for smooth operation and easy adjustment between tasks
Versatile and Adjustable for Maximum Flexibility
• Adjustable 3" diameter air-operated hold-downs securely position materials for accurate drilling
• Spindles are 1-1/2" in diameter with 1/2" spring collets, offering compatibility with a variety of bits for different applications
• Air/oil feed system promotes optimal performance and reduces wear, extending the machine's lifespan
User-Friendly Design for Safe and Easy Operation
• Foot switch operation gives operators hands-free control for faster workflow and safety
• Safety guard ensures safe operation, protecting users from moving parts during operation
• Idler pulley contributes to smooth spindle movement, reducing friction for long-lasting performance
- Capacity, Per Drive Group: Capable of Boring 2 Holes, 11/4" in diameter per 1 HP motor
- Dimensions: 50" x 22" x 56"
- Guard: Metal safety guard around spindle carriage
- Hold Downs: 2 Air Operated
- Idler: Pulley
- Drive Group: 1 HP, 208-220/440 V
- Spindle Carriage: 2 Spindles, 1-1/4"
- Boring Centers: 4" Stroke
- Table Size: 12" x 16"
- Table Adjustment: 2-1/2" Vertical
- HP: 1
- Air Requirement: 80 PSI
- Weight: 550 lbs
