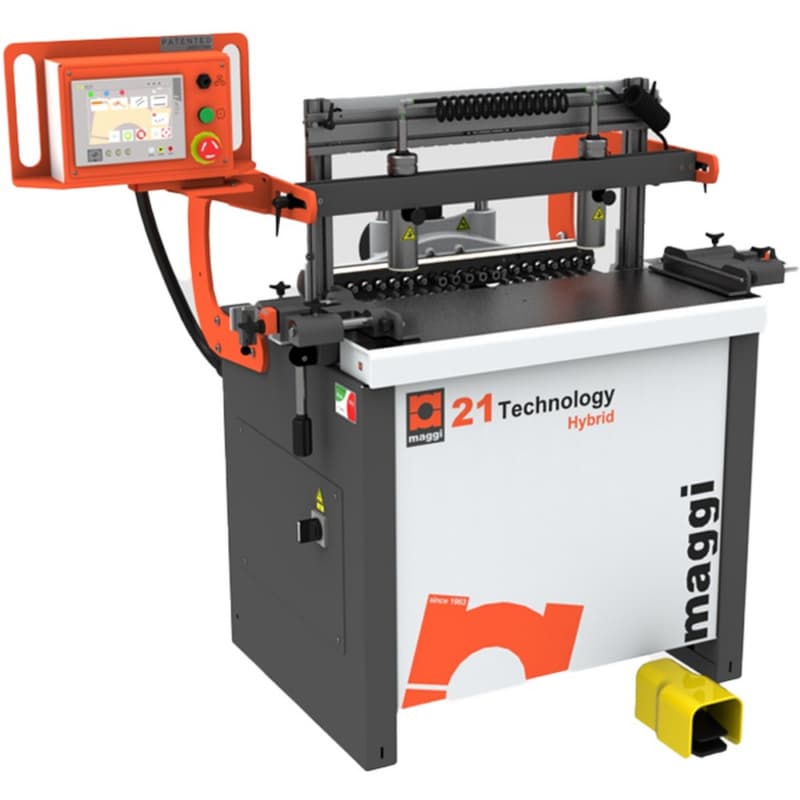

The Maggi Boring System 21 Technology is a Mult spindle, single-head, electronic boring machine designed for horizontal and vertical drilling into wood-based panels and solid wood. Perfect for furniture manufacturing, this system provides outstanding accuracy, ease of use, and high-quality performance. Built with more than 30 years of expertise and 20,000 units manufactured, this machine offers industry-leading features tailored for precision, speed, and ease of use.
Key Features & Benefits
Quick Electronic Setup: Streamline Your Work Process
• Set up the machine quickly and easily with a simple click of a button
• Eliminates lengthy setup processes, allowing for faster production times
• Ideal for production environments that demand high efficiency
Accurate Drilling for Precision Manufacturing
• NC axes provide accuracy within +/- 0.1 mm for perfect drilling
• The finest mechanical systems ensure consistent performance
• Perfect for detailed furniture manufacturing that requires precise dimensions
Compact and Efficient Design
• Small footprint (only 1 sqm) saves valuable workspace
• Optimized for both horizontal and vertical drilling applications
• Ideal for operations with limited space, offering high performance in a compact package
Innovative Features for Greater Convenience
• Quick-change spindles with a 32 mm interaxis ensure versatility in drilling
• Adjustable boring heights, depths, and angles from 0-deg to 90-deg
• Includes an ergonomic control panel with a 7" touch-screen for easy setup and operation
Connectivity and Control for Seamless Integration
• USB and Ethernet ports allow for file uploading and system upgrades
• Up to 1,000 working programs can be stored for flexible and quick reconfiguration
• Linux-based system ensures stable and reliable performance
- Max. Boring Depth: 2.5"
- Max. Tool Diameter: 35 mm
- Max. Boring Height: 35 mm
- Type: 32 mm Boring Machine
- Dust Port: 3"
- Work Table Dimensions: 885 mm x 349,5 mm
- Motor: HP 2 / KW 1,5 - RPM 2800
- Phase: 3
- Left And Right Spindles: N. 10 sx - N. 11 dx
- Total Interaxis: 640 mm
- Gross Weight: 370 Kg
- Air Consumption: 5 NL
- Dust Collection Hood Diameter: 80 mm
- Stepper Motor 1: nema 24, 3.2 Nm, 4.2 A, 800 g/cm^2
- Standard Pneumatic Pressure: BAR 6/ 8
- Stepper Motor 2: nema 34, 4.4 Nm, 5.6 A, 1050 g/cm^2
- Linear Actuator: max 6000 N, 12 mm/s, RPM 5000, max 24 A
- Net Weight: 340 Kg
