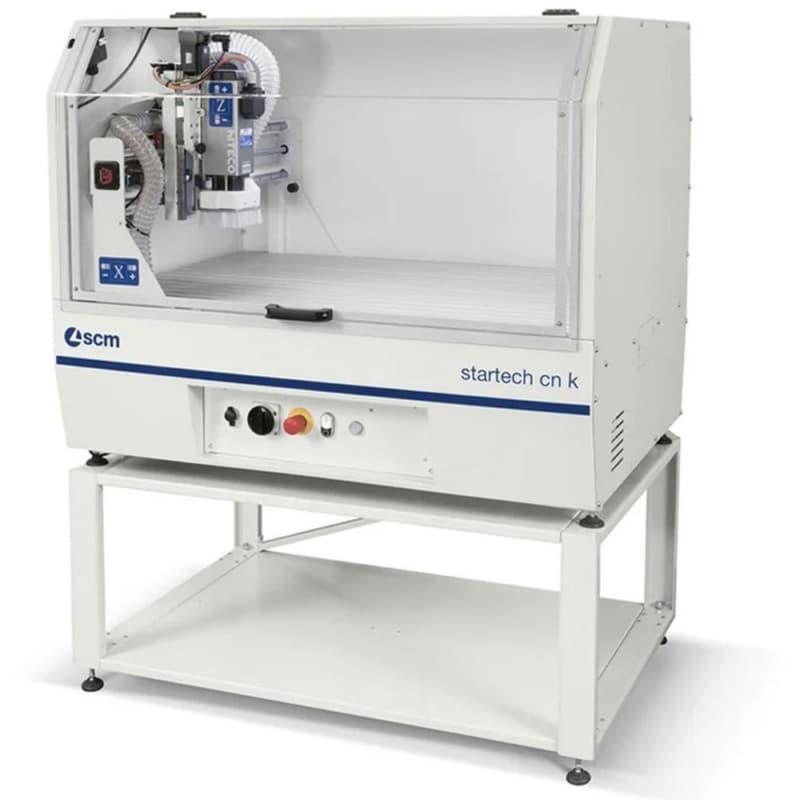

The SCM STARTECH CN K is a versatile, compact CNC machining center engineered for milling, engraving, signage production, and 3D prototyping. Combining high precision, creative flexibility, and user-focused design, this machine is ideal for businesses looking to innovate and streamline operations.
Key Features & Benefits
Superior Safety for Operator Assurance
• Fully enclosed cabin with internal LED lighting
• Clean and safe workspace free from external contamination
• Operator is fully protected during all machining cycles
Easy Programming & Broad Compatibility
• User-friendly human-machine interface for seamless operation
• Supports most CAD/CAM software with G-code output
• Direct G-code import ensures reliable execution and workflow
Powerful Spindle for High-Quality Output
• 2.4 kW electrospindle with R25 tool chuck for professional-grade performance
• Handles complex milling with ease across various materials
• Provides excellent cut quality and operational consistency
Advanced Creative Capabilities
• Features 4th interpolated axis for lathe-style 3D processing
• Enables creation of complex, multi-dimensional components
• Opens the door to new design possibilities in decorative and precision work
- Type: Automatic Routing
- Work Table Dimensions: 1170 mm x 760 mm
- X-Y-Z Stokes: 915-610-176 mm
- Z-Axis Work-Piece Clearance: 160 mm
- X-Y-Z Axes Max. Speed: 5-5-2,5 mm
- Phase: 1
- Max. Tool-Holder Diameter: 16 mm
- Electrospindle Motor Power: 2,4 kW (S6)
- Max. Electrospindle Speed: 24.000 RPM
