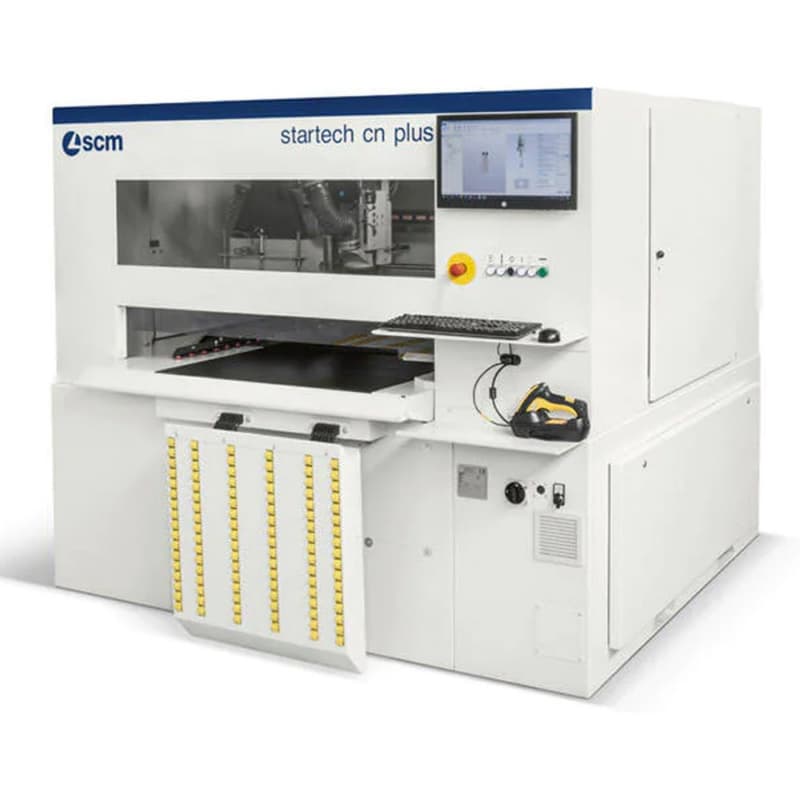

The SCM STARTECH CN P is a compact, high-performance boring machine tailored for small to mid-sized workshops and manufacturers with in-house prototyping needs. Equipped with 8 vertical spindles, 6 horizontal spindles, and an optional router, this model offers fast, accurate, and flexible machining in a space-saving footprint.
Key Features & Benefits
Automated Setup for Enhanced Productivity
• Panel dimensions are detected automatically, eliminating manual setup
• Speeds up production and minimizes operator effort
• Improves consistency and output accuracy
Fast and Accurate Performance
• High-speed axis movement at 40 m/min increases cycle efficiency
• Minimizes tool changeover and streamlines operations
• Optimized for both volume production and customized work
Space-Saving Design
• Compact footprint of only 5 m²ideal for tight shop layouts
• Maintains high output without sacrificing valuable floor space
User-Friendly CNC Interface
• SCM’s “Maestro CNC†software simplifies operation
• 19" touchscreen PC allows intuitive project design and programming
• Accessible for operators of all experience levels
Versatile Machining Options
• 5.5 kW electrospindle handles a wide range of drilling and routing tasks
• Supports both horizontal and vertical drilling operations
• Optional routing capability expands machining possibilities across materials
Fully Automated for Minimal Labor
• Automatic side alignment for easy loading and unloading
• Complete machining cycle executed with no manual intervention
• Reduces human error and increases throughput
- Max. Panel Thickness: 60 mm
- Type: Automatic Drilling/Routing
- Max. Panel Dimensions: 3050 x 900 x 60 mm
- Drilling/Grooving Working Area: 40/40/10 m/min
- Vertical Spindles: no.8 (5X-3Y)
- Power: 15,2 (20,7 with electrospindle) KVA
- Blade Diamter/Thickness: 125/6
- Electrospindle Rotating Speed: 18.000 g/min
- Spindles/Blade Rotating Speed: 4200/5500 g/min
- Horizontal Spindles: no.6 (2+2X-2Y)
