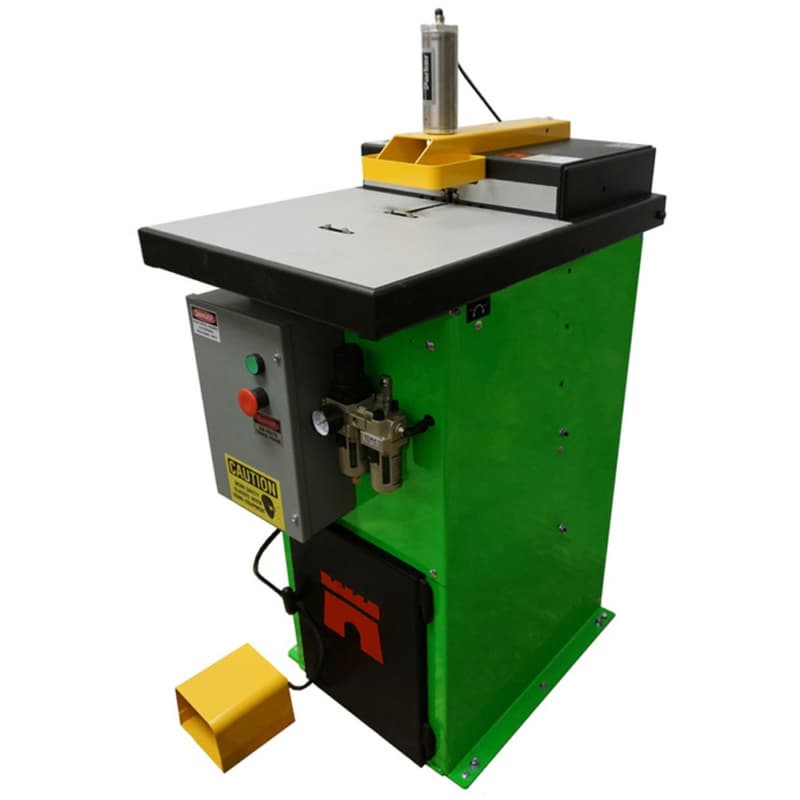

The Castle TSM-31 Pocket Hole Cutter is designed for high-volume production, cutting strong, tight joints with minimal maintenance. With the ability to complete both pocket cutting and pilot hole drilling in a single cycle, it reduces material damage and waste. Featuring durable induction motors and a high-torque air motor, this cutter ensures reliable performance in any woodworking manufacturing environment. Ideal for cabinetry, furniture making, and more, the TSM-31 is engineered for efficiency, making it a top choice for continuous or multi-shift operations.
Key Features & Benefits
Maximized Efficiency with Fast, Multi-Operation Cycles
- Cuts both pocket and pilot hole in a single, streamlined cycle
- Increases throughput and reduces overall production time
- Minimizes material damage and waste, improving cost-effectiveness
Strong, Stable Joints with Low-Angle 6-degCastle Pocket
- Cuts Castle’s patented 6-deg low-angle pocket for tight, durable joints
- Reduces the need for clamping during assembly, saving time and labor
- Perfect for materials as thin as 1/2â€, ensuring versatility in production
Designed for High-Capacity, Continuous Production
- Built to handle heavy-duty, multi-shift use in high-output environments
- Ideal for cabinet makers, furniture manufacturers, RV builders, and more
- Durable construction ensures reliable performance over extended periods
User-Friendly Footswitch with Automated Operation
- Footswitch makes operation easy, even in busy production settings
- Automated cycle operation simplifies tasks for minimal operator training
- Ideal for fast-paced work environments where speed and precision are crucial
Compact, Space-Saving Design
- Small footprint fits easily into any production line without taking up excess space
- Standard machine height allows for comfortable, ergonomic use
- Perfect for shops of all sizes, whether big or small
Easy Maintenance for Long-Term Durability
- Top-down access allows for quick and simple tooling changes
- Minimal shop air requirement (85 psi) for easier setup and lower operational costs
- Built for durability, reducing the need for frequent repairs or maintenance
- Type: Pocket Hole Machine
- Router: 1.5 HP Baldor Router
- Drill: Sioux SDG10S25FCT Air Motor
- Router Bit: 3/8" Solid Carbide
- Drill Bit: 9/64" Brad and Spur TiN-Coated
- Working Height: 36.5"
- Height: 52"
- Width: 22"
- Shipping Dimensions: 22" x 28" x 52"
- Shipping Weight: 340.00 LBS
- Depth: 28"
- Worktop Usable Area: 16" depth x 18.5" width
- Machine Height: 38"
- Power Options: 230V Single Phase (11 amps)
