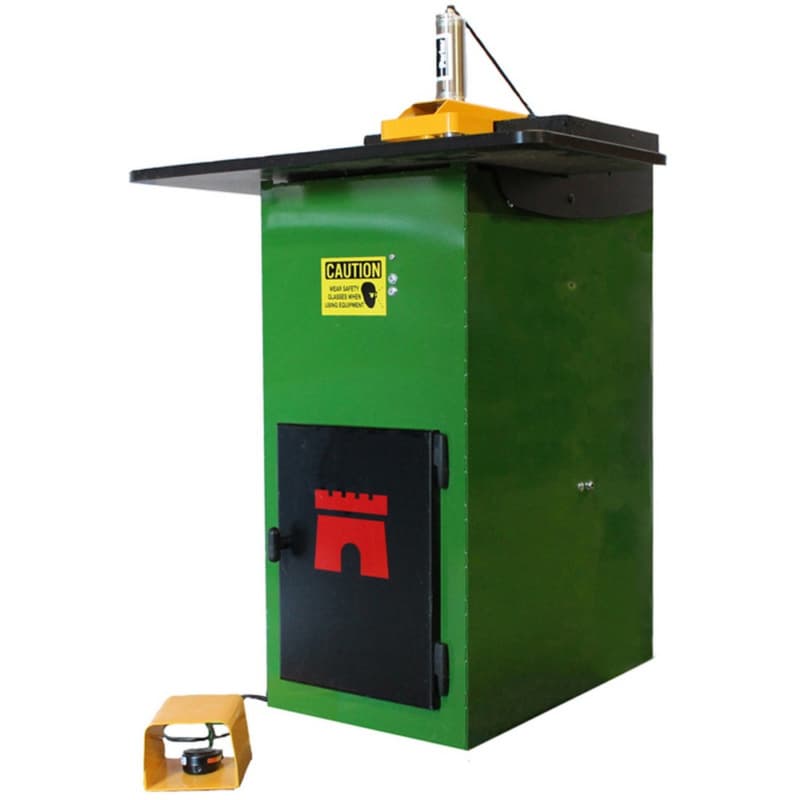

The Castle TSM-22 Pocket Hole Machine is a powerful, foot-pedal-operated solution designed for professional woodworking shops. It cuts Castle's signature 6- low-angle pocket and drills a pilot hole in a single 1.5 2 second cycle. PLC-controlled for reliable performance and easier troubleshooting, this machine improves productivity while minimizing errors. Its compact footprint, standard 110V electric power, and minimal setup make it easy to integrate into any shop.
Perfect for cabinetry, furniture making, and high-volume woodworking environments.
Key Features & Benefits of Castle TSM-22 Pocket Hole Cutter
Faster Cycles for Increased Production Output
- Completes pocket and pilot hole in just 1.5 to 2 seconds per cycle
- Footswitch allows hands-free, automated operation for streamlined use
- Boosts throughput and reduces non-value-adding steps
Low-Angle Pockets for Stable, Clamp-Free Joints
- Cuts Castle's patented 6-deg low-angle pocket for a strong, tight fit
- Reduces joint shift, eliminating the need for excessive clamping
- Ideal for furniture, cabinetry, and structural joints
Smart PLC Controls for Better Accuracy & Troubleshooting
- NEW PLC upgrade ensures optimal performance with easier diagnostics
- Enhances consistency and reduces downtime during operation
- Perfect for high-capacity workflows where precision matters
User-Friendly Design for Quick Setup and Low Maintenance
- Top lid opens easily for fast bit changes and routine service
- Adjustable web accommodates various screw lengths and material sizes
- Requires only 85 PSI shop air and standard 110V electric
Space-Saving Build with Industrial-Grade Features
- Compact footprint fits into small or large shop setups
- Integrated 4" dust port keeps workspace clean and reduces debris
- Built to last with heavy-duty construction and durable components
Why Buy the Castle TSM-22 Pocekt Hole Cutter?
- Cut Pocket + Pilot holes in one quick cycle.
- Low 6° angle for better joint strength and and accuracy.
- for high-volume cabinet or furniture shops.
- Integrated dust collection and quieter operation.
- Steel Construction
- Simple Controls
- Reliable Support and Service
- Router: Bosch 2.25 HP
- Drill: Bosch Colt 1.0 HP
- Router Bit: 3/8" Solid Carbide
- Drill Bit: 9/64" Brad and Spur TiN-Coated
- Working Height: 36.5"
- Size: 31.5" x 30" x 48"
- Height: 48"
- Width: 25"
- Depth: 26.5"
- Power Requirements: 110V, 15 amps
- Weight: 195.00 lbs
