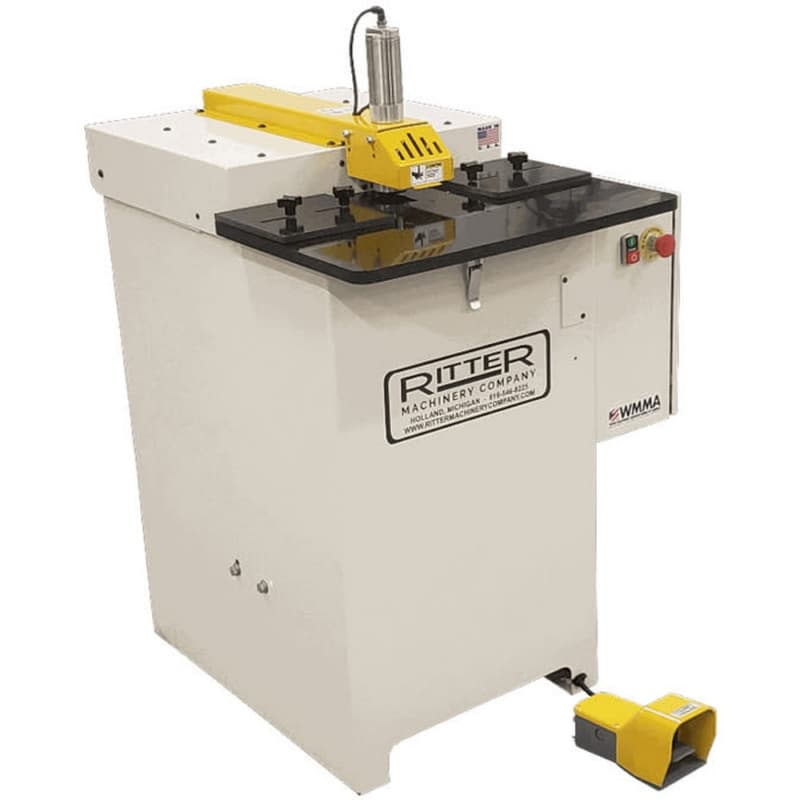

The Ritter R2063 is a robust, professional-grade pocket cutter for precise 6° low-angle joints in cabinet frames. This efficient machine, part of the R200 system, streamlines assembly by minimizing misalignment and clamping time. Its user-friendly design boosts speed and precision in demanding woodworking settings. Choose the R2063 for strong, accurate, and efficient cabinet face frame construction.
Key Features & Benefits
6-deg Low Angle Design for Stronger, Cleaner Joints
• The 6-deg angle allows the screw to pull joints together more precisely, minimizing gaps
• Reduces the chance of joint misalignment during assembly
• Ensures durable, flush results in cabinetry and frame construction
Foot Pedal Operation Improves Workflow and Safety
• Foot-activated cycle keeps both hands free for handling material
• Simplifies repetitive operations, reducing fatigue and operator error
• Makes the machine accessible to users of all experience levels
PLC Controlled Cycle for Consistent and Reliable Results
• Programmable Logic Controller automates cutting for greater precision
• Maintains a consistent cycle time between 1.75–2 seconds
• Supports high-volume tasks with repeatable accuracy and minimal downtime
Adjustable Stops and Robust Capacity for Versatility
• Handles material up to 2" thick for a wide range of cabinet applications
• Adjustable material stops ensure repeatability across batches
• Tooling included for immediate setup and operation
- Type: Pocket Hole Machine
- Router: 24,000 RPM, 8 Amp, 2 HP
- Drill: 22,000 RPM, 0.9 HP, 5.5 CFM
- Router Bit: 3/8" Solid Carbide, Rough Mill
- Drill Bit: 9/64†Brad and Spur TiN-Coated Bit
- Working Height: 36"
- Dust Port: 4"
- Work Table Dimensions: 15.75" x 23.75"
- Air Requirement: 2 CFM at 80 – 100 PSI
- Electrical: 230 V, 3, 10 A
- Footprint: 27.75" x 20.5"
- Shipping Weight: 300 lbs
- Weight: 370.000 lbs
