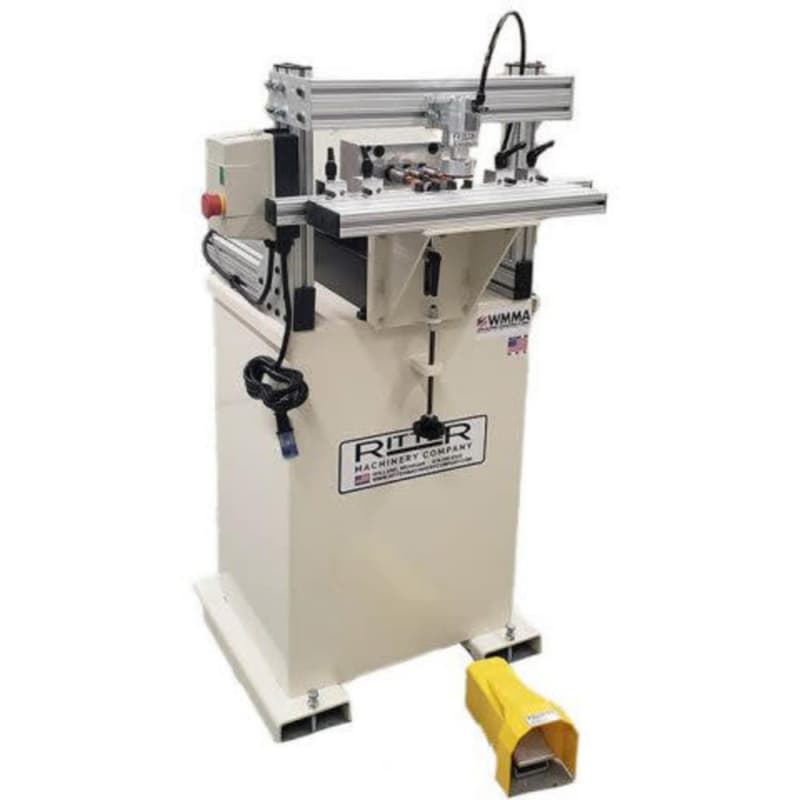

The RITTER R132 offers powerful, repeatable boring with a compact footprintperfect for fast-paced stile and rail operations. Its triple spindle gear-driven drill head, 32 mm spacing, and pneumatic clamping make it an ideal solution for European-style joinery. Designed with production efficiency in mind, the R132 eliminates setup errors and helps reduce waste, making it a reliable centerpiece in any high-output woodworking shop.
Key Features & Benefits
Efficient Triple Spindle System
• Gear-driven triple spindle head bores multiple holes simultaneously with precise spacing
• 32 mm spindle spacing supports European-style cabinet construction
• 10 mm bored female collets with set screw locks ensure secure bit holding and consistent results
Flexible Adjustments for Precision
• 0–2" adjustable boring depth provides full control for different materials and depths
• Indexed material stops improve repeatability in high-volume production
• Adjustable table bed height offers ergonomic flexibility and material-specific setup
Secure Clamping for Error-Free Drilling
• The workpiece is held firmly against the table by a pneumatic clamp
• 2" bore clamping cylinder provides powerful hold without damaging the material
• Prevents shifting during boring for accurate and repeatable results
Streamlined, Operator-Friendly Controls
• Foot-actuated cycle enhances workflow efficiency and reduces operator fatigue
• 3450 RPM spindle speed delivers fast, clean bores
• Integrated stile and rail setup features reduce costly mistakes and improve yield
Shop-Ready Versatility
• Supports single, double, or triple spindle boring configurations
• Accommodates a variety of boring patterns and components
• 6" x 20" table area handles small to large workpieces with ease
- No. Of Spindles: 3
- Spindle Spacing: 32 mm
- Type: Horizontal Boring Machine
- HP: 0.75
- Working Height: 40"
- Spindle Speed: 3450 RPM
- Work Table Dimensions: 6" x 20"
- Shipping Dimensions: 38" x 38" x 55"
- Electrical: 110/120 V, 60 Hz, 10 Amp
- Footprint: 24" x 24"
- Air: 2 CFM at 80 – 100 PSI
- Weight: 381 lbs
