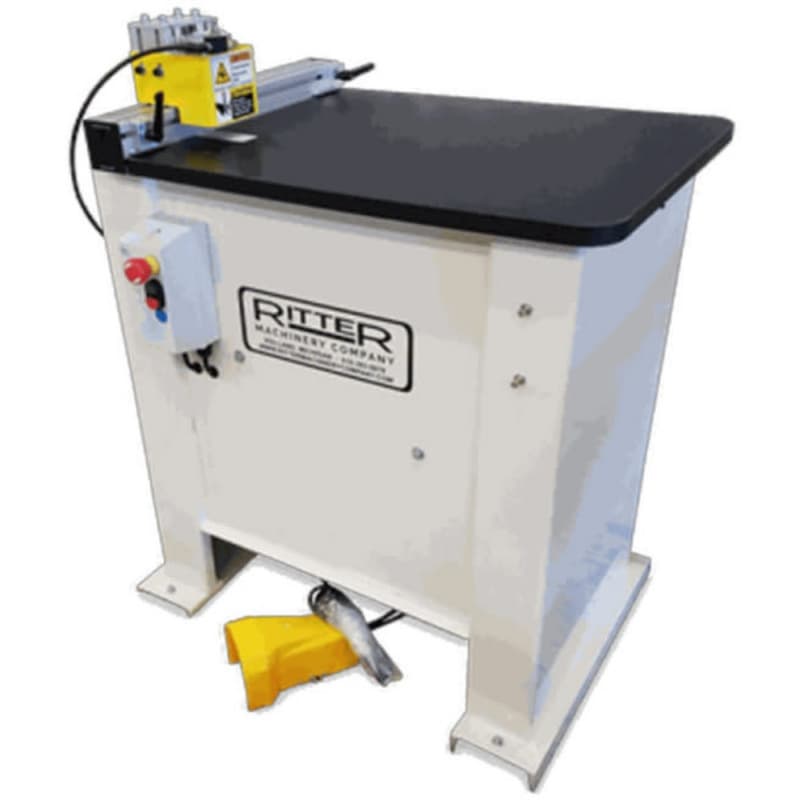

The Ritter R220T Double Spindle Pocket Hole Drill ensures fast, reliable face frame construction with its 1.5 HP motor and dual 14-deg spindles. Its high-speed operation eliminates clamping, misalignment, and glue, saving up to 50% of assembly time. This unique double pocket hole machine allows for easy joint adjustments, providing flexibility. Ideal for high-performance shops seeking maximum throughput in frame building.
Key Features & Benefits
Enhanced Productivity with Double Spindle Design
• 14-degree double spindle significantly reduces dowel and glue insertion, clamping time, and misalignment
• Up to 50% reduction in frame construction time, allowing for faster project completion
• The double spindle design makes joint alignment quicker and more precise, boosting overall efficiency
Powerful Motor for Consistent Performance
• 1.5 HP spindle drive motor provides consistent power to ensure high-speed, precision drilling
• The 6,100 RPM spindle speed enables fast and smooth drilling, reducing downtime
• TEFC (Totally Enclosed Fan Cooled) motor keeps the machine running smoothly even in tough working conditions
Foot-Activated Boring Cycle for Ease of Use
• Foot-actuated boring cycle allows for hands-free operation, improving user comfort and reducing operator fatigue
• Increases overall efficiency, making the R220T ideal for high-volume production
• This feature allows for quick switching between cycles, speeding up workflow
Flexibility and Customization Options
• R220T3 (3-Phase 230/460 V) and R220T.20 (20mm drill spindle spacing) options allow you to tailor the machine to your specific needs
• Interchangeable head with the R200T provides compatibility for different drilling tasks
• Adaptable design ensures that the machine can be used across a variety of woodworking applications
Robust Build with Manageable Size
• The 24" x 30" table area provides ample workspace while maintaining a compact footprint
• Its manageable weight and dimensions make it easy to move and set up in various work environments
• Sturdy construction ensures long-lasting durability and reliability
- Type: Pocket Hole Machine
- HP: 1.5
- Working Height: 38.25"
- Spindle Speed: 6100 RPM
- Work Table Dimensions: 24" x 30"
- Air Requirement: 2 CFM at 80 – 100 PSI
- Shipping Dimensions: 33†x 43†x 51â€
- Electrical: 110/120 V, 60 Hz, 20 A
- Footprint: 34.5" x 25.25"
- Shipping Weight: 561 lbs
- Weight: 610.000 lbs
