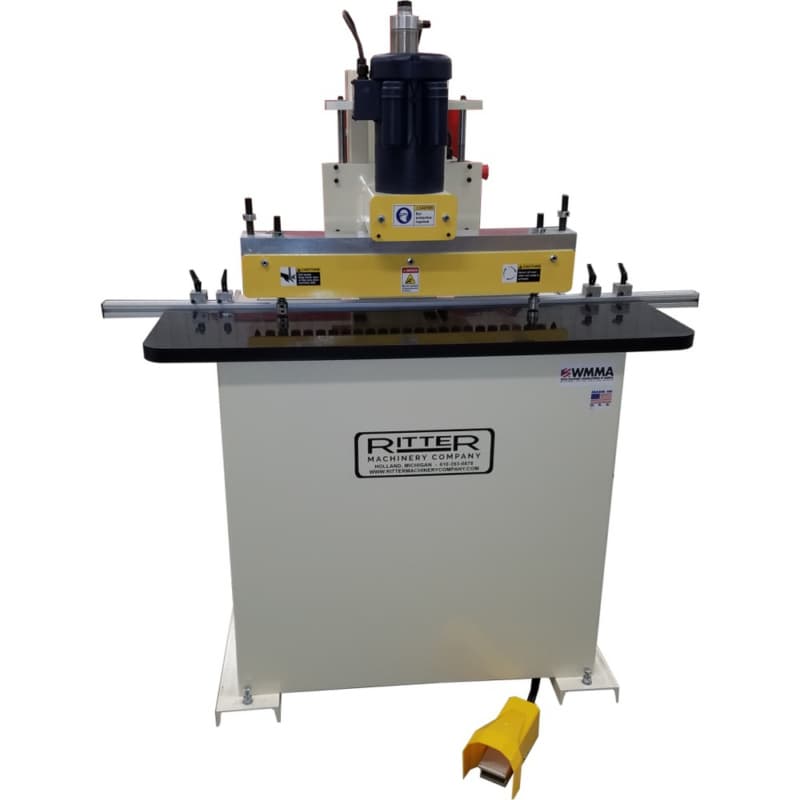

The RITTER R19F1 is a robust, mid-tier line boring machine engineered for accurate and repeatable shelf pin and cabinet construction. Perfect for custom woodworking shops, it eliminates the need for worn templates with its 23-spindle drill head and dual indexing system. Pneumatic foot-pedal control and dual workstations provide hands-free operation and improved productivity, while adjustable stops and fences ensure consistent alignment for every bore.
Key Features & Benefits
Precision Shelf Pin Boring
• 23-spindle gear-driven drill head on 32mm centers ensures even spacing for adjustable shelving
• (12) right-hand and (11) left-hand spindle configuration provides smooth, balanced drilling across the entire row
• Ideal for kitchens, closets, and custom cabinetry projects
Repeatable Accuracy with Smart Indexing
• Dual spring-loaded index pins maintain consistent drilling patterns without manual measuring
• 60" rear fence includes (4) adjustable material stops for repeatable panel positioning
• Rear fence adjustability allows fine-tuned row offset from the panel edge
Hands-Free Pneumatic Operation
• Foot-actuated pneumatic boring cycle frees up both hands for material handling
• Reduces operator fatigue and enhances safety during repetitive tasks
• Smooth, responsive cycle for efficient workflow
Dual Workstations for Flexible Production
• Left- and right-hand workstations accommodate various operator preferences
• Supports mirrored or standard boring layouts
• Increases throughput by allowing flexible material orientation
Fully Adjustable for Versatile Applications
• Boring depth is adjustable to suit different panel thicknesses and drilling needs
• Dual spring-operated clamps hold panels securely in place for clean entry/exit holes
• Optimized for high-precision, high-speed production
- Motor: 3 HP
- Air Requirement: 2 CFM at 80 – 100 PSI
- Spindle Centers: 32 mm
- Collet Size: 10 mm
- Throat Capacity: 12"
- Shipping Dimensions: 44" x 64" x 77"
- Footprint: 36" x 60"
- Shipping Weight: 645 lbs
- Table Area: 14" x 48"
- Weight: 760 lbs
