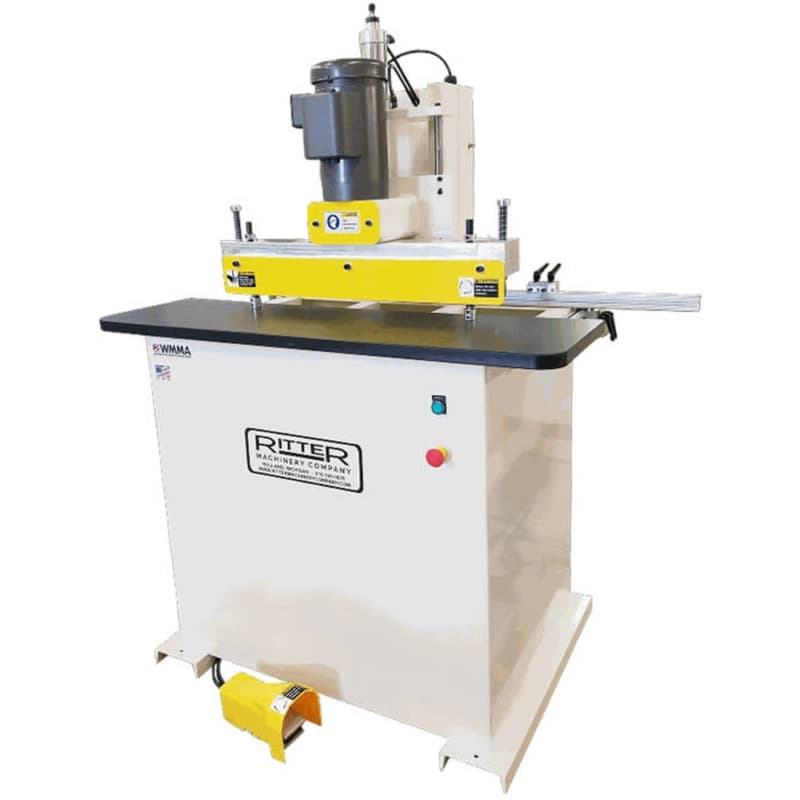

The RITTER R19F is a mid-level, 23-spindle single-row line boring machine made for precision and productivity. Ideal for adjustable shelving applications, it eliminates the need for wear-prone templates. The R19F is both affordable and built to last. Operators can rely on hands-free pneumatic operation, accurate hole pattern replication, and quick material setup for consistent results. The machine is easily adjustable for entry and exit points, and cleanly allows the user to repeat the drill hole pattern with indexing pins on both the left and right hand side of the machine.
Key Features & Benefits
Drill More in One Cycle to Boost Efficiency
• 23-Spindle Gear Driven Drill Head on 32mm Centers for fast, consistent line boring
• Split spindle layout: 12 right-hand and 11 left-hand spindles for balanced performance
• Reduces cycle time and increases shop throughput
Pneumatic System Enables Hands-Free Operation
• Pneumatic Driven Boring Cycle lets users focus on positioning and alignment
• Foot pedal control eliminates the need for manual actuation
• Increases operator safety and comfort during repetitive tasks
Adjustable Fence for Precise Row Placement
• 60" Back Fence with (4) Adjustable Material Stops ensures repeatable accuracy
• Rear fence can be aligned to set exact row offset from the workpiece edge
• Right and left-hand workstations offer flexible part positioning
Repeatability That Saves Time
• (2) Spring Loaded Index Pins allow for consistent and precise hole spacing
• Quick setup for multiple parts without realignment
• Reduces material waste due to alignment errors
Reliable Workpiece Holding and Depth Control
• (2) Spring Operated Material Clamps secure the panels firmly during drilling
• Adjustable boring depth allows fine-tuning for different material thicknesses
• Prevents drill bit deflection for clean, accurate holes
- Max. Panel Thickness: 1.25"
- No. Of Spindles: 23
- Spindle Spacing: 32 mm
- HP: 3
- Working Height: 38.25"
- Work Table Dimensions: 14" x 48"
- Collet Size: 10 mm
- Throat Capacity: 12"
- Shipping Dimensions: 44" x 64" x 77"
- Electrical: 230 V, 3 , 60 Hz, 20 A or 460 V, 3 , 60 Hz, 10 A
- Footprint: 36" x 60"
- Shipping Weight: 645 lbs
- Weight: 760.000 lbs
