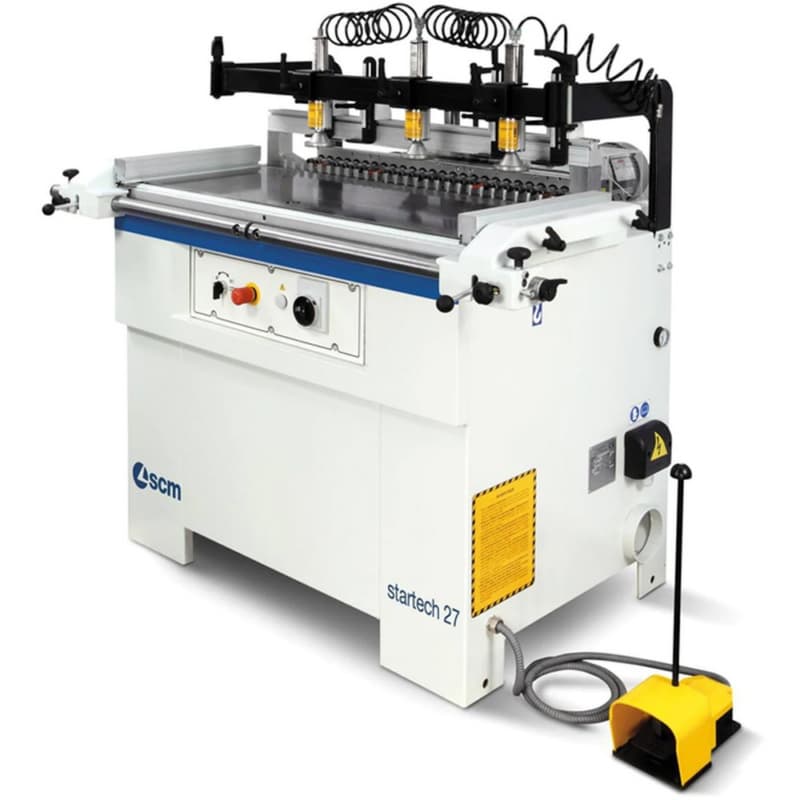

The SCM STARTECH 27 is engineered for high-precision boring operations across a variety of panel applications. Featuring 27 spindles and automatic pneumatic head rotation, this machine simplifies complex boring tasks with speed and accuracy. Designed for versatility, it offers quick setup, micrometric adjustments, and a 5-position revolving turret for consistent depth settingsmaking it a reliable asset for cabinet shops and production facilities alike.
Key Features & Benefits
Automatic Pneumatic Head Rotation for Versatility
• Convenient selector for automatic rotation at 0 deg, 45 deg, and 90 deg positions
• Ideal for various panel boring tasks requiring different angles
• Allows for rapid adjustments without manual intervention
Quick Setup with 27 Spindles and Quick-Release Fittings
• Rapid setup saves time between operations
• 27 spindles provide enhanced productivity for larger projects
• Quick-release spindles simplify tool changes and adjustments
Precise and Practical with Nonius Decimal Scale and Micrometric Guides
• Nonious decimal scale guarantees high precision in adjustments
• Micrometric guides ensure fine-tuned travel for accuracy
• Perfect for detailed and intricate panel boring tasks
5-Position Revolving Turret for Consistent Depth Settings
• Offers five preset positions for consistent boring depth
• Ensures accurate hole placement with every cycle
• Saves time and reduces the risk of manual errors during setup
- Max. Panel Thickness: 85 mm
- No. Of Spindles: 27
- Type: Manual Drilling
- Work Table Dimensions: 1096 x 407 mm
- Spindles Rotating Speed: 3000 RPM
- Spindles Motor Power: 2 HP
- Centre Distance Between Spindles: 32 mm
- Weight: 919 lbs
