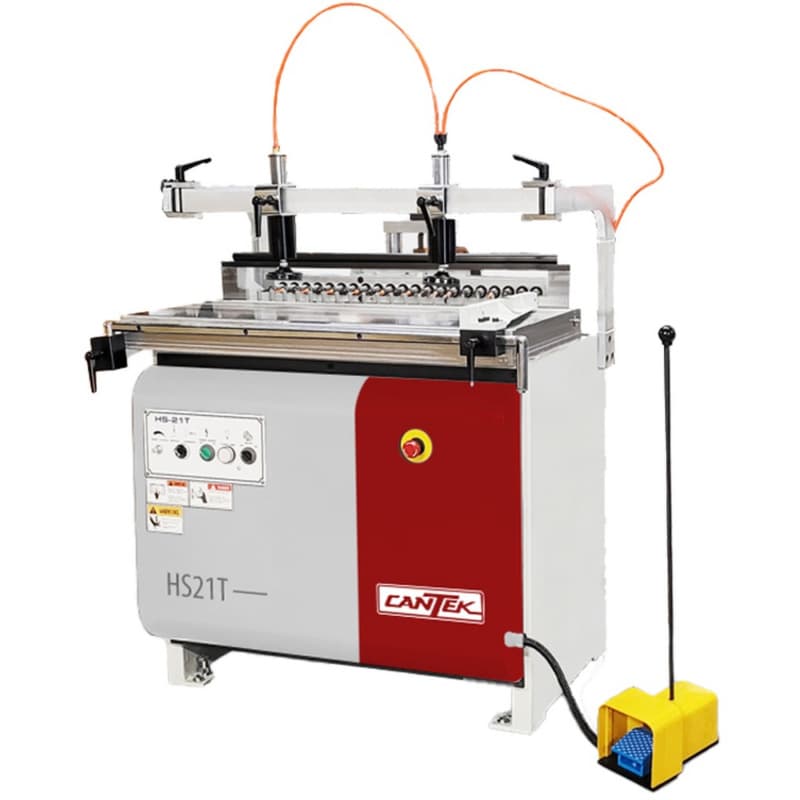

The Cantek HS21T 1 Phase 21-Spindle Construction Boring Machine is designed for versatility, capable of line boring, end drilling, and construction drilling functions. Featuring a robust fabricated steel construction and a precision machined cast iron table, it ensures smooth, high-precision operations. The pneumatically cycled boring head, guided by precision rails, operates at 2800 RPM and is powered by a 2 1/2 HP motor. With 21 gear-driven spindles and quick-change chucks, it offers fast setup and tool changes. The fold-away side fences and adjustable back fence provide optimal workpiece positioning. The pneumatic boring head is adjustable from 0° to 90° for angle drilling, making it an ideal choice for various drilling applications.
Key Features & Benefits
Efficient and Versatile Drilling – Capable of line boring, end drilling, and construction drilling
• 21 spindles with 32 mm centers for consistent, high-precision drilling
• Quick-change chucks allow for fast setup and easy drill bit swaps
• Pneumatic cycle operated by foot pedal for hands-free operation
Flexible Boring Unit – Tiltable boring unit for horizontal or vertical drilling
• Pneumatic setting allows for fast switching between horizontal and vertical drilling positions
• Can be locked at any position between 0° and 90° for angular drilling
• Manual tilting capability for further customization and flexibility
Precision Depth Control – Quick and precise depth adjustments
• 6-position turret system for fast and reliable boring depth adjustments
• Mechanical digital readouts ensure precise and repeatable settings
• Adjustable drill feed speed for optimized drilling efficiency
Convenient and User-Friendly Setup – Side fences and back fence for optimal workpiece positioning
• Fold-away side fences for easier access during end boring or small component drilling
• 3-meter back fence with four adjustable stops for accurate positioning during line boring
• Side fences equipped with a linear scale for easy and precise positioning
Durability and Long-Term Performance – Built to last in demanding production environments
• Sturdy fabricated steel frame and precision-machined cast iron table for robust construction
• Powered by a 2 1/2 HP motor running at 2800 RPM for continuous operation
• Two pneumatic clamps ensure the workpiece is securely held in place during operation
Additional Features
• Fold-away side fences for space-saving and versatile applications
• Ideal for both line boring and dowel drilling applications
• Manufactured to meet high-quality standards for reliability and longevity
- Max. Boring Depth: 3"
- No. Of Spindles: 21
- Spindle Spacing: 32 mm
- Boring Head Adjustment: 0-deg - 90-deg
- Spindle Speed: 2800 RPM
- Work Table Dimensions: 34.33" x 19.3"
- Motor: 1 ph
- Shipping Dimensions: 45" x 35" x 54" (1143 x 889 x 1372 mm)
- Electrical: 230/3/60= 9 Full Load Amps; 230/1/60 = 16.9 Full Load Amps
- Shipping Weight: 946 lbs (430 kg)
- Machine Weight: 770 lbs (350 kg)
- Machine Dimensions: 38.11"x 32-1/4" x 48" (968 x 820 x 1220 mm)
- Weight: 946 lbs
