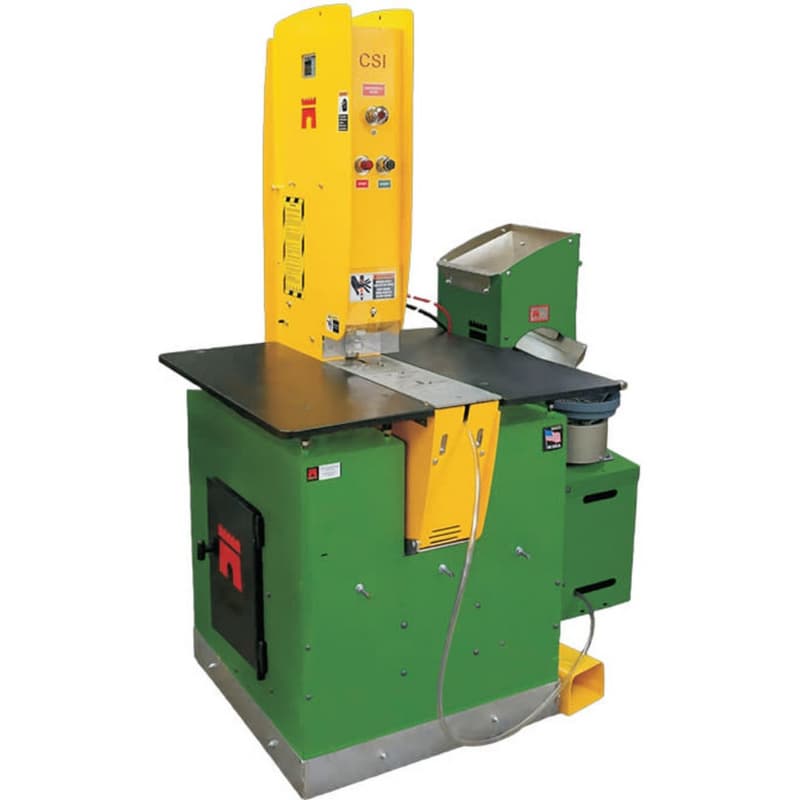

The Castle CSI-1.5D Pocket Cutter/Screw Inserter is your all-in-one solution for high-volume, high-precision cabinetry and furniture production. It cuts Castle's signature 6-deg low-angle pocket, drills the pilot hole, and inserts screws in a single, 1.5-second operation. Built for speed, safety, and stackable output, this machine significantly cuts down labor and boosts throughput. From hardwood to composite, it's engineered for durability and consistency in demanding environments.
Key Features & Benefits
Combine Cutting & Screwing in One Step - Save Time, Increase Output
• Patented mechanism completes pocket cutting and screw insertion in just 1.5 seconds
• Eliminates repetitive manual steps and reduces labor-related fatigue
• Speeds up assembly by up to 40%, verified in customer testing
Low-Angle Pockets That Eliminate Clamping - Get Stronger, Cleaner Joints
• 6-deg Castle low-angle pockets ensure tight, secure joints with less distortion
• Minimizes or removes the need for clamps during assembly
• Screws sit below flush, allowing safe stacking without marring
Tailored for High-Capacity Production. Build More, Waste Less
• Built for non-stop operation with simple, routine maintenance
• Ideal for stackable part workflows, maximizing production capacity
• Customizable decks and stops improve alignment and consistency
Smart Controls & Ergonomics Easy to Use, Hard to Beat
• Hands-free operation with footswitch for enhanced operator safety
• Pocket Detect sensor prevents accidental cutting into preloaded pockets
• Accessible carriage design allows fast tooling changes and easy maintenance
Adaptable for Diverse Materials One Machine, Many Applications
• Adjustable router feed rate accommodates hard/soft woods, composites, and panels
• Premium solid carbide bits ensure clean cuts across various materials
• Optional accessories enhance large-part and dado handling with ease
- Type: Pocket Hole Machine
- Working Height: 36"
- Dust Port: 4"
- Size: 33" x 35"
- Air Requirement: 85 PSI
- Electrical: 230V 3-phase or 460V 3-phase
- Footprint: 35" x 33" (35" x 63" including Screw Feeder)
- Shipping Weight: 1085 lbs
- Req Cfm: 350 CFM with 4" Dust Collection
- Machine Height: 72"
- Weight: 1,085.000 lbs
