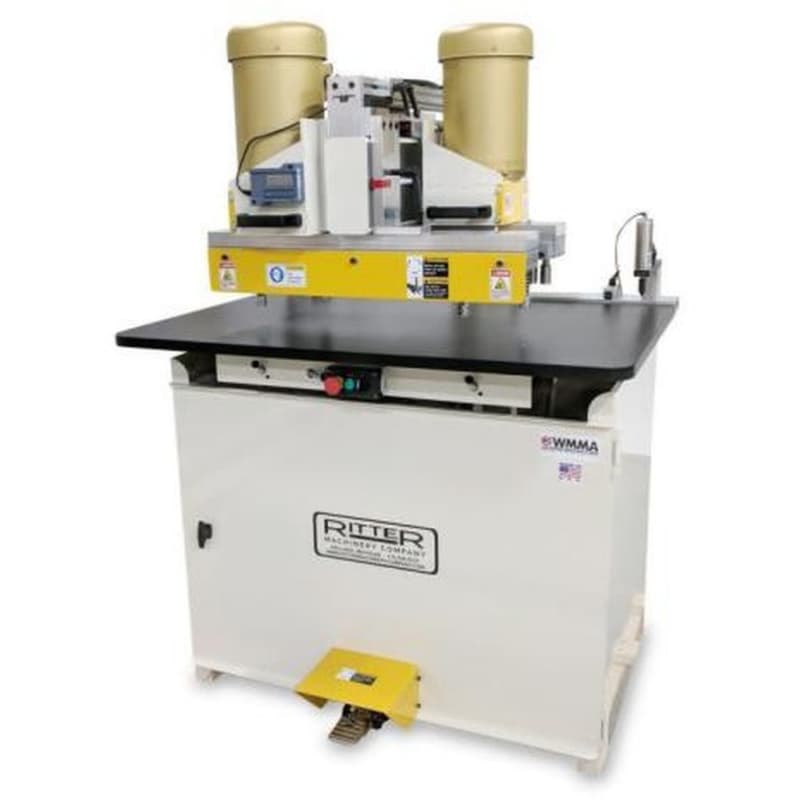

The RITTER R46 is a heavy-duty double-row system drill engineered for high-volume cabinet and closet production. Specifically designed for panels that require dual rows of system holes, this machine completes both rows in a single pass. With fixed-position top drilling heads, intuitive digital controls, and rapid setup capabilities, the R46 delivers consistent alignment, faster throughput, and unmatched reliability.
Key Features & Benefits
Simultaneous Dual-Row Drilling
• Drill two rows of shelf pin holes in a single cycle for increased productivity
• Equipped with (2) 23-spindle gear-driven heads on 32mm centers
• Balanced output with (24) right-hand and (22) left-hand spindles
Single Point Fence Referencing
• Ensures precise hole alignment using one reference location
• Adjustable stops on a 48" back fence enable repeatable accuracy
• Pneumatic indexing pins securely position panels
Precision Linear Movement
• Linear-bearing movement on a precision ground beam for accurate positioning
• Adjustable center range from 4" to 24" between rows
• Digital readouts on front head for quick, precise setup
Quick Changeovers with Drill Stops
• Rapid row location adjustments via quick-set indexing stops
• (2) depth stop turrets allow repeatable boring depths
• Separate left and right workstations improve workflow efficiency
Rear Head Nesting for Expanded Applications
• Rear fence nesting supports optional third-row drilling
• Optional digital rear head display for added control
• Tooling sold separately to suit specific application needs
Hands-Free, Safe Operation
• Foot-actuated boring cycle reduces operator fatigue
• (2) spring-loaded clamps hold workpieces securely in place
• Engineered for durability and consistent long-term performance
- Max. Panel Thickness: 1.25"
- No. Of Spindles: 46
- Spindle Spacing: 32 mm
- HP: 3
- Work Table Dimensions: 30" x 48"
- Collet Size: 10mm
- Throat Capacity: 24"
- Shipping Dimensions: 56" x 55" x 74"
- Electrical: 230 V, 3 , 60 Hz, 20 A or 460 V, 3 , 60 Hz, 10 A
- Footprint: 48" x 43"
- Shipping Weight: 1430 lbs
- Weight: 1,341.000 lbs
