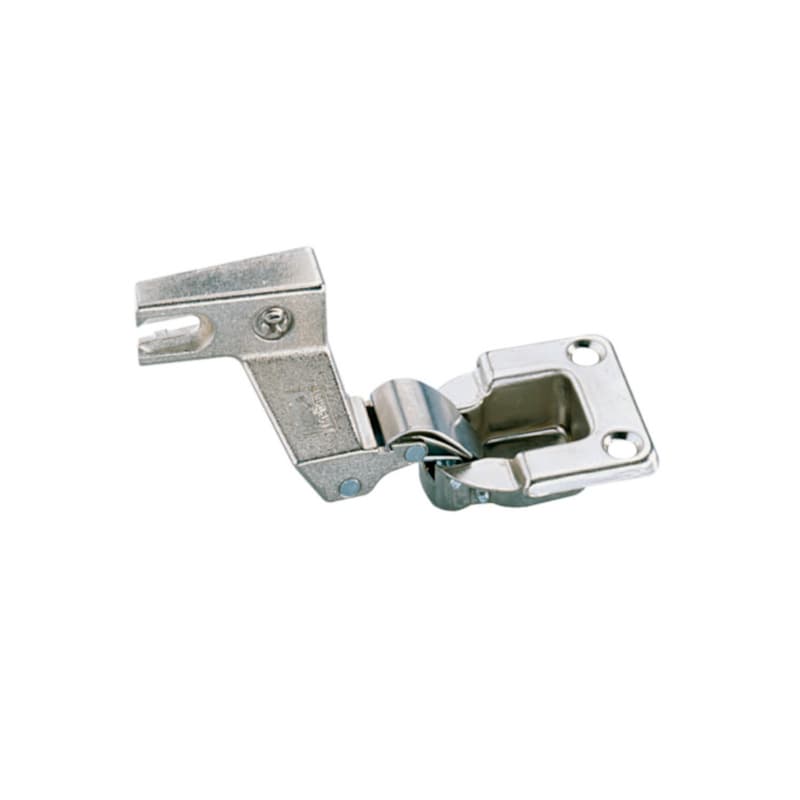

Markant 7.1 Flap Right-Hand 90˚ Opening Hinge, 23-5/8", 17-23/32", Nickel-Plated

Markant 7.1 Flap Hinge For 90 Degree Drop Flaps

Markant 7.1 flap hinge is a concealed self-closing hinge designed for drop flaps opening to a 90 degree angle, so the flap stops at a right angle and stays neatly aligned with the cabinet. This hinge is right-hand, which sets the swing direction on projects where handed hardware matters. The hinge length of 23-5/8 inches gives extended support along the flap edge, useful on wider fronts where load is spread over a longer run. The stated 17-23/32 inch dimension supports projects that must match an existing drilling or layout, helping keep replacement and new work consistent. Nickel-plated construction provides a hard-wearing surface over the hinge, supporting a clean look that fits typical cabinet interiors. As a concealed hinge, it sits out of sight when the flap is closed, keeping the exterior of the cabinet uncluttered for a more finished appearance.

Functional Details That Support Cabinet Projects

• This concealed self-closing hinge pulls the drop flap shut, which helps the front close firmly without additional catches and supports a tidy cabinet face on repeat use.
• Right-hand design fixes the hinge orientation, useful when matching existing right-handed flaps or coordinating with left-hand models in the same run of cabinetry.
• The hinge is designed for drop flaps opening to a 90 degree angle, so the flap rests level at 90 degrees and offers a stable work or access surface at that position.
• The 23-5/8 inch hinge dimension works on longer flap fronts, helping distribute forces along the flap edge for smoother operation over the full length.
• The 17-23/32 inch dimension provides a second reference for layout, giving installers a defined length for planning cutouts or aligning with cabinet interior components.
• Nickel-plated finish covers the hinge with a metallic surface, helping it blend with other nickel components in the cabinet and resist everyday handling contact.
• Concealed mounting keeps the hinge inside the cabinet structure, so the exterior remains clear of visible hardware for a cleaner appearance in finished installations.

Hinge And Mounting Plate Alignment Details

The mounting plate is designed to be used in a 32 mm hole pattern on the cabinet side wall, so it fits layouts built around the 32 mm system and speeds layout when drilling on that standard. The plate positions the hinge cup 1/8 inch, or 6 mm, from the side wall, giving a fixed offset that simplifies lining up multiple flaps along a cabinet run. That defined cup position supports consistent reveal and gap from one cabinet to the next, reducing adjustment time during installation. Front adjustment on the hinge offers +2 mm and -1.5 mm movement, allowing the flap front to be shifted after mounting so the edge can be aligned to adjacent fronts or trim. These adjustments support fine tuning once the cabinet is assembled, rather than relying only on initial drilling accuracy.

Using This Right-Hand Flap Hinge In Cabinet Runs

Drop Flap Applications And 32 Mm Layouts

This flap hinge is designed to be used for drop flaps opening to a 90 degree angle, so it suits cabinets where the front folds down to form a horizontal surface or access opening. Concealed self-closing action means the hinge pulls the flap tight against the cabinet when closed, supporting a flush look on desks, media cabinets, or storage units. Because the mounting plate is designed to be used in a 32 mm hole pattern on the cabinet side wall, it fits projects built around system drilling, helping align this hinge with other 32 mm hardware in the same cabinet. The specified hinge cup position of 1/8 inch, or 6 mm, from the side wall ties directly into that system layout, so installers can work from known references when positioning flaps alongside doors or drawers.

Adjustment Range For Consistent Flap Alignment

The hinge has front adjustment of +2 mm and -1.5 mm, which gives useful play for bringing the flap front into line after mounting. That adjustment range lets the installer shift the flap slightly forward or back, important when matching reveals across multiple fronts or when an existing case is slightly out of square. By dialing in the front adjustment, the drop flap can be tuned so its edge sits even with nearby components, reducing the need for re-drilling. The self-closing function works with this adjustment range, so once the front is aligned, the hinge will continue to draw it back to that same closed position. With right-hand configuration, this hinge can also be paired with the corresponding left-hand model in mirrored applications, while still using the same 32 mm hole pattern and cup offset for both sides.

Practical Questions About This Flap Hinge

Selecting This Hettich Flap Hinge For Your Project

This Hettich America Corporation Markant 7.1 flap right-hand hinge combines a concealed self-closing action with a 90 degree opening, making it suitable for drop flaps that need a clean exterior and a defined horizontal stop. The mounting plate is designed for a 32 mm hole pattern and positions the cup 1/8 inch, or 6 mm, from the side wall, supporting projects that follow system drilling practices. With front adjustment of +2 mm and -1.5 mm, installers can dial in final alignment without changing the basic layout. Sold in both broken and full box quantities with a discount available for full box orders, this hinge supports small repairs and larger production work through Wurth Baer Supply.
