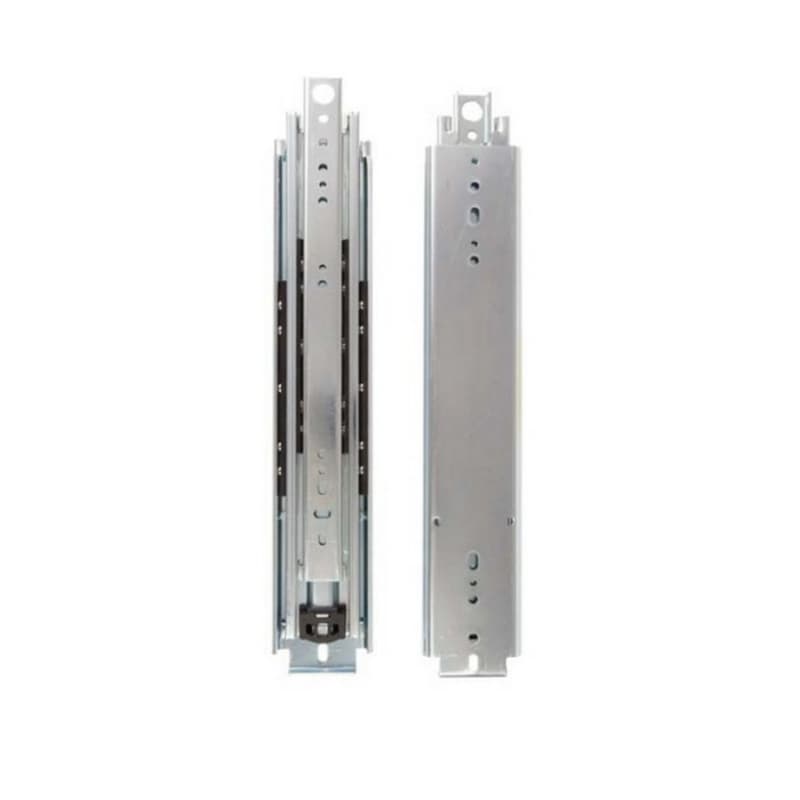

Knape And Vogt 36 Inch Drawer Slides For Heavy Use

Knape and Vogt 36 inch drawer slides give you a full extension ball bearing solution for long drawers that need full access to their contents. The KV Model 8900 36 inch length slide is built for extra heavy-duty applications, so it supports demanding storage where weight and frequency of use are both high. Its side mount design fits projects built around a standard drawer box layout, which helps maintain consistent construction methods across a job. A non-handed design lets the same slide work on either side of the drawer, simplifying layout and reducing part sorting on site. Heavy duty ball bearings support the movement, so drawers travel on a rolling interface rather than dragging on surfaces, which helps reduce sticking under substantial load. A non-disconnect configuration keeps the drawer member captive in the slide, which keeps tall or heavy drawers riding on the slide members during service or use.

Key Drawer Slide Details For Demanding Projects

• The 36 inch length matches deep drawer designs that need full extension, so storage at the back of the drawer is accessible without partial reach or awkward lifting.
• Side clearance of 3/4 inch defines the gap between drawer and cabinet, guiding box sizing for a smooth running fit in casework or built-ins.
• A 3 inch height profile on the slide gives a substantial bearing track, supporting extra heavy-duty applications where lateral stability of the drawer matters.
• The side mount configuration matches common drawer construction, allowing installers to fasten slides to cabinet sides and drawer sides without changing standard joinery.
• The non-handed design allows each slide to be used on the left or right, reducing SKUs on the job and simplifying layout when setting up banks of drawers.
• Heavy duty ball bearings support the heaviest loads without sticking, which helps drawers start and stop smoothly even when fully loaded in service.

Installation Factors For Side Mount 8900P 36 Slides

The Knape and Vogt 8900P 36 full extension slide installs as a side mount member, so the cabinet and drawer construction both reference off the side panels. A specified side clearance of 3/4 inch sets the required gap, allowing the slide to operate with the ball bearing raceways properly aligned. The slide height of 3 inches defines how much vertical space the slide occupies on the drawer side, which helps when planning drawer box heights under fixed openings or stacked compartments. The non-handed design removes the need to differentiate left and right parts, making layout faster when fastening members along cabinet case sides. Recommended fasteners are #10 flat head machine screws on the cabinet member, which provide a strong mechanical connection in metal or pre-threaded structures where that screw type is used.

Using 8900 Series Slides In Real Installations

Where The 8900P 36 Slide Fits Best

The KV Model 8900 36 inch slide is designed for extra heavy-duty applications, which suits installations where drawers carry substantial weight across their full 36 inch depth. The full extension feature brings the entire drawer length forward, allowing stored items at the very back to be reached from the front of the cabinet opening. With a 3 inch high side mount profile, the slide supports tall drawer sides that need stable guidance along their entire travel. The defined 3/4 inch side clearance and non-disconnect design work together so the drawer rides in a controlled track, staying engaged with the slide members throughout movement. This configuration suits storage layouts where drawers are not intended to be removed from the slide during normal operation, and where long travel under load benefits from a captive guiding system.

Details That Support Consistent Drawer Performance

The heavy duty ball bearings in the 8900P 36 slide carry the heaviest loads without sticking, which supports predictable opening and closing forces even as drawers are filled over time. A non-handed design lets installers pull from a single slide type for either side of the drawer, so each opening across a bank of cabinets can be laid out using the same member orientation and clearances. Side mount construction paired with the specified 3/4 inch clearance gives a clear framework for box sizing, improving repeatability when building multiple drawers for one project. The 3 inch height also helps spread load vertically along the drawer side, supporting alignment where tall drawer boxes or deep storage compartments are used. Because the slide is non-disconnect, the drawer member remains engaged with the cabinet member during operation, which supports stability in long drawers that would otherwise experience higher leverage at full extension.

Common Questions About Knape And Vogt 8900P 36 Slides

Choose 8900P 36 Slides For Heavy Duty Drawers

The Knape and Vogt 8900P 36 full extension side mount slide combines a 36 inch length, 3 inch height, and 3/4 inch side clearance to support deep, heavily loaded drawers. Its non-handed, non-disconnect construction and heavy duty ball bearings give installers a defined, repeatable standard for demanding storage projects where long travel and stable guidance are both required.
