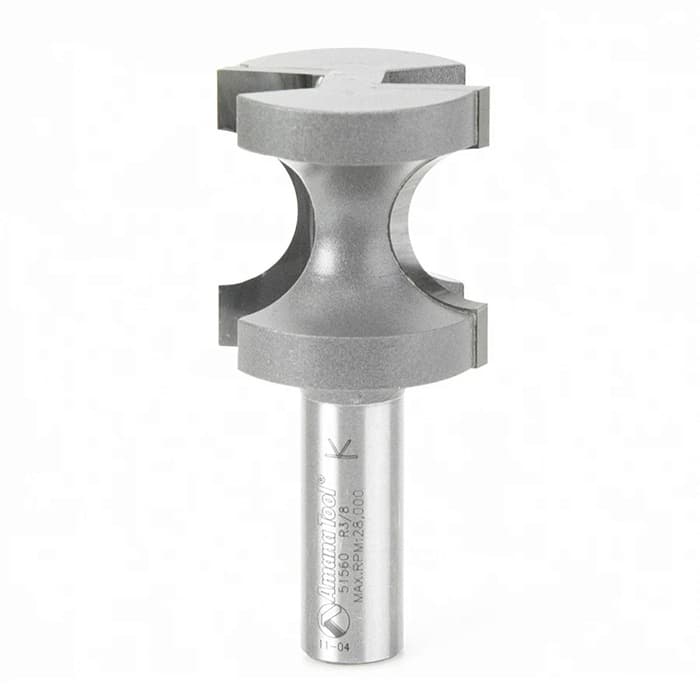

Edge forming bullnose carbide tip bit Amana Tool 51560

Edge Forming Bullnose Carbide Tip Bit For Clean Profiles

Edge forming bullnose carbide tip bit gives you a dedicated router bit for forming a 3/8 inch radius bullnose profile on wood edges. This bit is a 2 flute router bit in the edgeforming category, so it is built specifically for shaping exposed edges on project parts. The Amana Tool 51560 designation identifies it as a bull nose bit with a 3/8 inch radius, which produces a smooth, fully rounded edge profile on material edges. A cutting diameter of 1-1/4 inch and radius of 3/8 inch work together to form a balanced bullnose shape across the edge. The 1-5/16 inch cutting height allows you to cover typical stair treads, window sills, table edges, counter edges, and shelf edges in a single pass when matched to material thickness.

Key Bullnose Bit Details That Support Edge Work

• The 3/8 inch radius bull nose profile shapes edges to a consistent roundover, helping you create a comfortable, rounded edge on stair treads and shelves where hands and feet contact the surface.
• The 1-1/4 inch diameter cutting circle engages enough material to form a full bullnose shape, which matters when you want an even, symmetrical profile across table and counter edges.
• The 1-5/16 inch cutting height gives you vertical coverage along the edge, reducing the number of passes needed when forming moldings or finishing deeper window sills and stair treads.
• The 1/2 inch shank size provides a solid grip in routers designed for 1/2 inch shanks, supporting stable running when shaping long edges such as shelves and countertop fronts.
• The 2 flute cutting design presents two cutting edges to the work, which helps the bit remove material smoothly along window sills, table edges, and moldings.

Installation And Routing Setup For Accurate Bullnose Edges

This Amana Tool 51560 bullnose router bit uses a 1/2 inch shank, so it fits routers that accept 1/2 inch shank bits and allows a secure collet hold during edgeforming work. The bit must be used with an edge guide on handheld routers, which keeps the cutting diameter aligned with the board edge when running stair treads, window sills, or shelf fronts. When mounted in a router table, the bit is used with the fence, and the fence position controls how much of the 1-1/4 inch diameter cutting circle engages the workpiece. The M 3/4 inch dimension further defines the working geometry of the bit, helping you repeat the same bullnose setup across multiple similar parts.

Using This Bullnose Router Bit In Real Projects

Where This 3/8 Radius Bullnose Bit Performs Best

The web description states that this bullnose carbide tip bit is ideal for shaping stair treads, which means the 3/8 inch radius and 1-5/16 inch cutting height are sized to round the front edges where consistent foot contact occurs. It is also described as ideal for window sills, so the bull nose profile helps soften exposed interior ledges while tying into trim or casing profiles. The same bit is called out for table and counter edges, using the 1-1/4 inch diameter to form a balanced bullnose across horizontal surfaces that regularly encounter hands and objects. Shelf edges are another stated use, so the 3/8 inch radius shape smooths the front edge of storage or display shelves. The description further notes that it is ideal for making moldings, allowing the bit to cut repeating bullnose profiles along stock that will later be cut to length.

Why These Bullnose Dimensions Support Repeatable Results

The 3/8 inch radius (R) tied to a 1-1/4 inch diameter (D) gives a defined cutting geometry, so once the edge guide or router table fence is set, you can repeat the same bullnose profile across many stair treads or shelf parts. The 1-5/16 inch cutting height (B) lets you cover the full edge thickness on many common workpieces, which limits height adjustments between passes when running multiple table or counter edges. A 1/2 inch shank (d) engages deeply in the router collet, supporting steady tracking along long window sills or moldings. The overall length (L) of 2-3/4 inch keeps the bit compact relative to its cutting height, which helps routing control when working on taller edges. The bit has 2 flutes, so each rotation cuts with two edges, supporting smoother material removal as you follow an edge guide or router table fence. The M 3/4 inch dimension further describes the bit geometry, helping you set fences or guides consistently when repeating the same edge cut on a full project run.

Common Questions About The Amana Tool 51560 Bit

Select This Bullnose Bit For Defined Edge Profiles

The Amana Tool 51560 edge forming bullnose carbide tip bit combines a 3/8 inch radius, 1-1/4 inch diameter, and 1-5/16 inch cutting height to shape consistent bullnose edges on stair treads, window sills, tables, counters, shelves, and moldings. With a 1/2 inch shank, 2 flutes, and routing guided by an edge guide or router table fence, it supports repeatable, controlled passes along multiple workpieces. For projects centered on rounded, comfortable edges, this dedicated bullnose router bit provides the defined geometry needed for uniform results across a full run.
