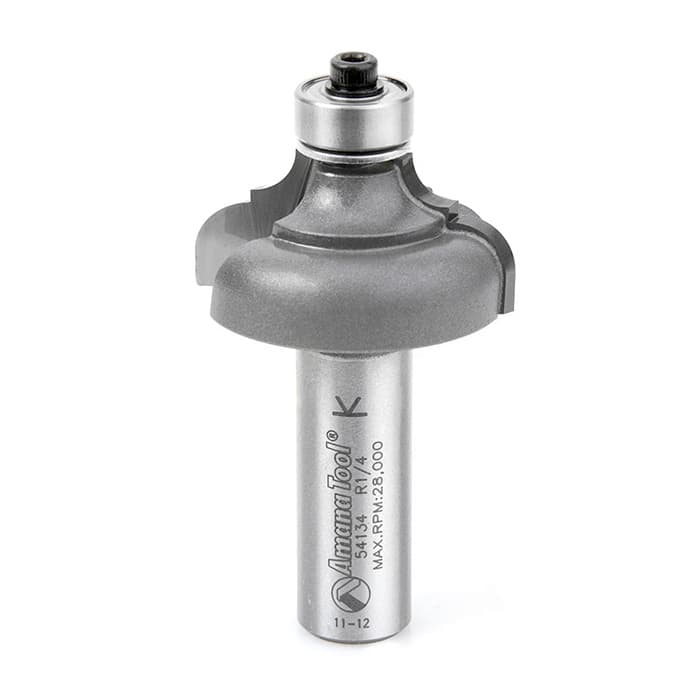

Edge Forming Classical Bead and Cove bit 54134

Edge Forming Classical Bead And Cove For Clean Profiles

Edge Forming Classical Bead and Cove bit from Amana Tool is a router bit designed to cut a bead and cove profile in one pass, so you shape decorative edges efficiently on suitable stock. The web description states that the position of the bead and the cove are reversed on this series, placing the bead off the bearing, which helps you register the edge against the guide while the bead defines the outer detail. The bit has a 1-3/8 inch diameter, which supports a full classical profile on standard cabinet and furniture edges. A 1/4 inch radius is specified, giving a consistent curve that blends well with other 1/4 inch radius operations. The cutting height is 11/16 inch, so you can run a substantial decorative band along an edge without overcutting narrow workpieces.

Key Edgeforming Details That Support Daily Work

• The 1-3/8 inch diameter lets the bit sweep a broad classical bead and cove, which helps create a substantial, visible edge detail on doors, shelves, and trim.
• The specified 1/4 inch radius shapes a controlled curve, so you match this profile with other 1/4 inch radius components in a project for visual consistency.
• The 11/16 inch cutting height provides enough vertical reach to decorate thicker stock while keeping the cut concentrated near the edge for better control.
• The 1/2 inch shank improves stiffness compared with smaller shanks, which supports smoother cutting action in both handheld and table mounted routers.
• The overall length of 2-9/16 inch keeps the bit relatively compact, which can help reduce leverage on the router collet during edgeforming passes.
• The 2-flute design is specified, giving two cutting edges that balance chip removal with a fine finish along the bead and cove profile.

Router Bit Setup, Shank Fit, And Edgeforming Control

The bit uses a 1/2 inch shank, so it seats into 1/2 inch router collets to maximize grip and reduce runout during edge cuts. The overall length of 2-9/16 inch positions the cutting edges within a typical projection range, which aids in setting safe exposure above a router table or beyond a handheld base. The web description notes a ball bearing guide, so the bearing rides the workpiece edge while the reversed bead and cove geometry cuts beside it, helping you track straight edges and patterns. The specified 11/16 inch cutting height concentrates the profile near the edge, which simplifies height adjustment when dialing in how much of the bead and cove shows on the finished piece.

Using This Amana Tool Bit In Woodworking Projects

Where This Classical Bead And Cove Bit Fits

The product is identified as an Edge Forming Classical Bead and Cove router bit within the Edgeforming category and Router Bits product class, so it is intended for shaping workpiece edges rather than joinery or grooving. The web description states it can be used in either handheld or table mounted routers, which means the same 54134 bit serves both portable work on larger assemblies and controlled edge runs on a router table. With a 1-3/8 inch diameter and 11/16 inch cutting height, the profile suits cabinet doors, shelves, and furniture tops where a stronger visual edge is wanted. The bead coming off the bearing places the decorative high point outward, so the bearing manages tracking while the visible detail defines the perimeter of the work.

Why These Dimensions Support Repeatable Edge Results

The specified 1/4 inch radius and additional 3/16 inch R1 detail define how the bead and cove transition, which supports repeatable alignment with other routed elements that share those radii. The 2-flute configuration balances material removal and finish quality, so each pass has two cutting edges sharing the cut around the 1-3/8 inch diameter arc. The 1/2 inch shank and 2-9/16 inch overall length work together to control deflection, allowing a solid grip in the collet while keeping the cutting length focused at the tip. The reversed bead and cove layout, with the bead off the bearing, positions the bearing against the stock edge while the profile forms beside it, helping keep cuts consistent when running along straight edges or guided patterns in a router table or handheld setup.

Common Questions About The 54134 Edgeforming Bit

Select This Bit For Reversed Bead And Cove Edges

The Amana Tool 54134 Edge Forming Classical Bead and Cove bit combines a 1-3/8 inch diameter, 1/4 inch radius profile, 11/16 inch cutting height, and 1/2 inch shank to support clean decorative edges in either handheld or table mounted routers. The reversed bead position off the bearing and the 2-flute, ball-bearing-guided design keep the classical profile consistent from piece to piece. For projects that call for a defined bead and matching cove along cabinet, furniture, or trim edges, this dedicated edgeforming router bit provides the specified geometry and router compatibility you need to match that look.
