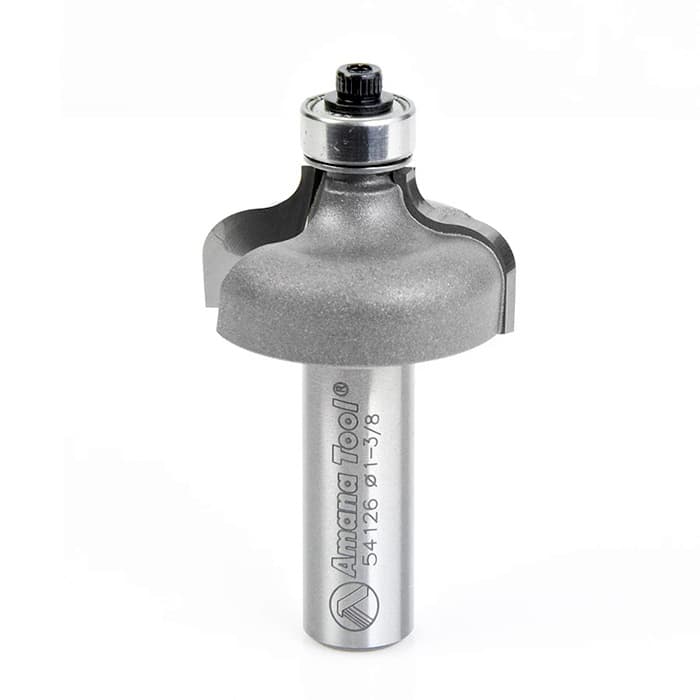

Edge Forming Ogee Router Bit Amana 54126

Edge Forming Ogee Router Bit For Decorative Profiles

Edge Forming Ogee Router Bit from Amana Tool is an edgeforming router bit designed to cut ogee-style decorative profiles used in moldings and other detailed work. The 1-3/8 inch diameter cutting profile shapes a substantial edge, which matters when you want moldings and trim details that stand out clearly rather than getting lost after finishing. The bit uses a ball bearing guide, so the bearing follows the workpiece edge and keeps the profile on line, which helps produce consistent results when working along curved or straight edges. With a 1/2 inch shank, the bit fits routers that accept 1/2 inch shanks, which is useful when you want a solid, low-vibration cut on heavier edge profiles. The 11/16 inch cutting height controls how much of the profile engages the material, allowing you to apply the ogee detail to edges with enough width to show the full shape.

Key Edgeforming Details That Support Clean Results

• The ogee profile is described as one of the basic shapes used in moldings and decorative profiles, so it creates a familiar contour that matches many traditional cabinet and trim designs, which helps when you want new work to visually align with existing profiles.
• The bit is listed for use in either hand held or table mounted routers, which means it can support jobs ranging from running long moldings on a router table to shaping smaller workpieces with a hand-held router, giving flexibility in how you set up the cut.
• The 1/4 inch radius and additional 3/16 inch radius (R1) define the curves in the ogee, guiding how the edge rolls and concaves, which matters when you want a specific transition between flat and curved surfaces on a profile.
• The overall length of 2-5/8 inches provides the reach needed for the 11/16 inch cutting height while leaving shank length for secure router collet grip, which helps maintain control and stability during the cut.
• The bit uses a 2-flute cutting design, so two cutting edges share the load and alternate cuts, which supports a smoother finish along the molding edge compared to a single-flute geometry in similar material and feed conditions.

Router Bit Fit, Shank Size, And Setup Factors

This Amana Tool router bit is identified with a 1/2 inch shank, so it fits routers designed for 1/2 inch shank tooling, which supports a stiffer connection when running the 1-3/8 inch diameter edge profile. The 1-3/8 inch diameter determines how wide the ogee shape extends from the edge, which influences how much stock must be available at the edge of the board for the full profile to form. With an 11/16 inch cutting height, the bit engages a controlled band of material along the edge, which matters when balancing the visible profile against the thickness of doors, drawer fronts, or trim stock. The overall length of 2-5/8 inches coordinates the shank and cutting height into a compact bit, which is useful for maintaining router clearance while keeping adequate shank engagement in the collet.

Using This Amana 54126 Router Bit In Woodworking

Where This Edge Forming Ogee Router Bit Is Applied

The product is categorized under router bits and specifically edgeforming, so it is aimed at shaping edges rather than grooving or joinery, which focuses its role on visible surfaces such as cabinet doors, face frames, and architectural trim. The web description identifies it as one of the basic shapes used in moldings and decorative profiles, which positions the 54126 bit for projects where a classic ogee edge is desirable on moldings, panels, or decorative rails. Because the bit can be used in either hand held or table mounted routers, it can be applied on site or in the shop, shaping edges on long stock at a router table or finishing smaller components with a portable router. The 1-3/8 inch diameter and combined 1/4 inch and 3/16 inch radii define the visual character of the edge, which matters when matching other ogee profiles in a room or across a run of cabinetry.

Details That Support Repeatable Profiles And Maintenance

The ball bearing guide at the tip of the bit controls the reference as it follows the board edge, which supports repeatable passes along straight or curved edges without relying only on fences, useful when duplicating the same molding shape across multiple parts. The 2-flute cutting layout spreads the cutting action over two edges, which helps balance chip removal and surface smoothness, supporting less sanding on the shaped profile when feed and material remain consistent. The 11/16 inch cutting height sets a fixed vertical engagement, which helps repeat the same ogee band height on multiple boards by referencing the router or router table setup to that dimension. The listing of replacement bearing 47706 ties this bit to a specific service part, so the guiding function can be restored by using that bearing reference if the original bearing reaches the end of its service life. The manufacturer part number 54126 uniquely identifies this exact geometry, which helps reorder the same edgeforming profile when matching existing work.

Common Questions About The Amana 54126 Ogee Bit

Select This Ogee Bit For Consistent Molded Edges

The Amana Tool 54126 edgeforming router bit combines a 1-3/8 inch ogee profile, 11/16 inch cutting height, and 1/2 inch shank to support decorative edge work on moldings and trim. The ball bearing guide and 2-flute layout are specified to help produce consistent, smooth edges across multiple parts. With clear geometry, defined radii, and a listed replacement bearing number, this bit offers a repeatable setup for ongoing decorative profiling. Use this Amana 54126 router bit when a classic ogee molding edge is required across doors, drawer fronts, rails, or architectural trim runs.
