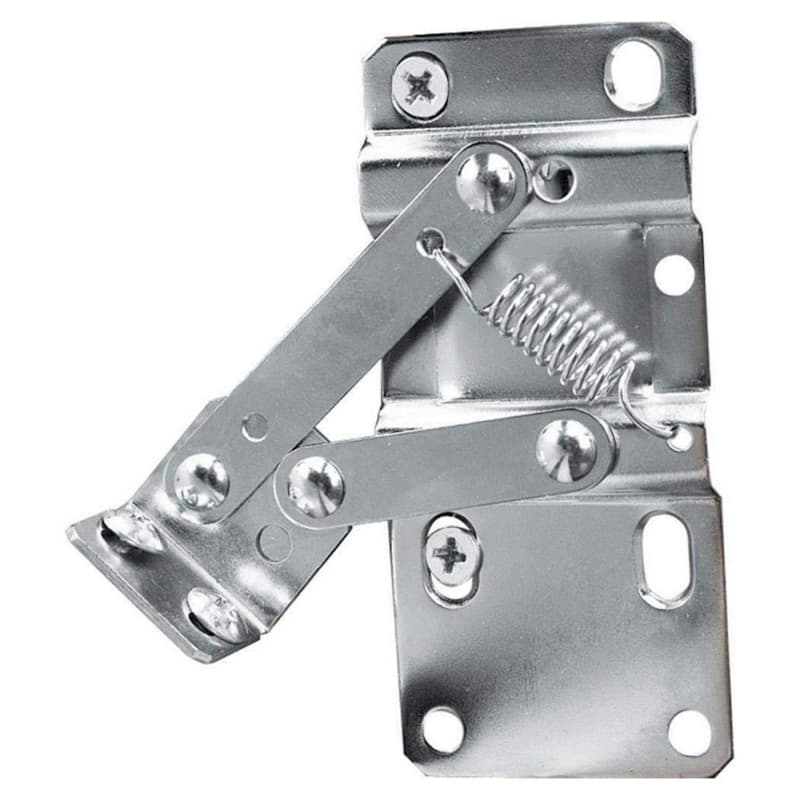

Rev-A-Shelf tip-out tray hinges are made for false front sink storage where you want quick access without visible hardware. This pair of self-holdin hinges from Rev-A-Shelf Corporation is designed for tip-out trays 16 inches and shorter. The hinge set is fully concealed after installation and works with face frame or frameless cabinet construction. These concealed sink tray hinges are spring tensioned, so no catch is required. Nickel plated steel hinges help support a clean, durable installation, and the hinges open to a 45 degree angle for practical access to small sink-area items. Less than 2 mm of countertop clearance is needed, and no clearance is required below the false front. Hinges only are included; trays are sold separately.
Key specs to confirm: These tip-out tray hinges are specified for trays 16 inches and shorter, with an overall hinge size of 4 inches by 1-3/4 inches. The hinges open to a 45 degree angle and need less than 2 mm of clearance at the countertop, with no clearance required below the false front. Buyers should confirm the false front dimensions, tray length, cabinet construction type, and available mounting area before ordering. If you need safety, load, compliance, or other technical ratings, those details are not provided here and should be confirmed with the manufacturer or technical documentation.
What's included: One pair of Rev-A-Shelf self-holdin tip-out tray hinges and #8 x 5/8 inch flat head screws. Tip-out trays are sold separately.
What to verify before ordering: Confirm your tray is 16 inches or shorter, check that your sink base uses a false front application, measure for the 4 inch by 1-3/4 inch hinge footprint, and verify that your cabinet style is face frame or frameless. Also confirm the needed countertop clearance and that you are ordering hinges only, not the tray.
Self-holdin hinges are commonly used when a false drawer front under the sink is being converted into working storage. In many kitchens, that narrow space is ideal for small items such as sponges, scrub pads, or sink tools, but only if the front opens smoothly and stays aligned. Rev-A-Shelf tip-out tray hinges are built for that type of application and are described as supplying full accessibility to stored items with smooth, quiet, and reliable pull-out and tip-open function.
For installers, one of the main pain points is limited clearance near the countertop and around the sink front. This hinge pair addresses that with less than 2 mm of required clearance at the countertop and no required clearance below the false front. That can make under sink tip-out hinges easier to fit in tight cabinet layouts where other hardware may be harder to position. The fully concealed design also matters when the goal is to keep the outside appearance of the sink base unchanged after installation.
Another practical issue is cabinet construction. Some buyers need false front sink tray hinges that can work in face frame cabinets, while others are ordering for frameless boxes. The verified product data states that these Rev-A-Shelf tip-out tray hinges mount easily to all construction types and are suitable for face frame or frameless cabinets. That broadens their use, but buyers should still measure the mounting area and confirm the false front dimensions before purchase.
The spring tensioned design is also useful in day-to-day use because no catch is required. That means fewer parts to plan around when setting up a tipout tray hinge pair. The 45 degree opening angle provides practical access without claiming a wider opening than the verified data supports. If your tray is longer than 16 inches, or if you need a different opening range, that fit should be confirmed before ordering because this hinge set is specifically listed for trays 16 inches and shorter.
When comparing tip-out tray hinges in general, buyers usually focus on four things: whether the hinges stay hidden, how much clearance they need, what cabinet styles they fit, and whether mounting hardware is included. This Rev-A-Shelf pair gives clear verified answers in each area. The hinges are fully concealed, need less than 2 mm of countertop clearance, require no clearance below the false front, and include #8 x 5/8 inch flat head screws.
Another point to compare is operating style. Some sink tip out hinges need added hardware to keep the front in place. These self-holdin hinges are spring tensioned, and the product data states that no catch is required. That can reduce extra parts and simplify the hardware list for a sink front conversion.
Material and dimensions also help buyers compare options without guessing. These are nickel plated steel hinges with a 4 inch by 1-3/4 inch overall size. That gives a defined reference for checking space and planning installation. The hinge pair is sold separately from the tray, which is important because some buyers assume a complete tip-out kit is included. Here, only the hinges and listed screws are verified as included.
For buyers who want a clear brand match, the product is identified as a Rev-A-Shelf Corporation sink tip-out tray hinge pair. That brand and product type clarity can help when replacing existing hardware or matching a planned tray installation. If your project depends on a particular tray depth, front thickness, or load requirement, those details are not fully stated in the verified data and should be checked with the manufacturer before final purchase.
Rev-A-Shelf tip-out tray hinges are sold as hinges only. Tip-out trays are sold separately.
These tip-out tray hinges are specified for trays 16 inches and shorter.
Rev-A-Shelf tip-out tray hinges are listed for face frame or frameless cabinet construction.
These under sink tip-out hinges need less than 2 mm of clearance for the countertop.
This hinge pair requires no clearance below the false front according to the verified product data.
These self-holdin hinges are spring tensioned, so no catch is required.
The Rev-A-Shelf tip-out tray hinges open to a 45 degree angle.
These concealed sink tray hinges are made from nickel plated steel.
This tipout tray hinge pair includes #8 x 5/8 inch flat head screws.
Buyers should confirm tray length, false front dimensions, mounting space, and cabinet style. Follow manufacturer installation guidance and local building requirements where applicable.
Under sink tip-out hinges are a practical choice when you need concealed access behind a false front and want hardware matched to trays 16 inches and shorter. This Rev-A-Shelf pair includes the hinges and #8 x 5/8 inch flat head screws, but not the tray. Before you buy, confirm your cabinet is face frame or frameless, measure the 4 inch by 1-3/4 inch hinge area, and verify the required countertop clearance. Those checks help you order the correct hinge pair for your sink front application.
Sold In: 1 Pair
