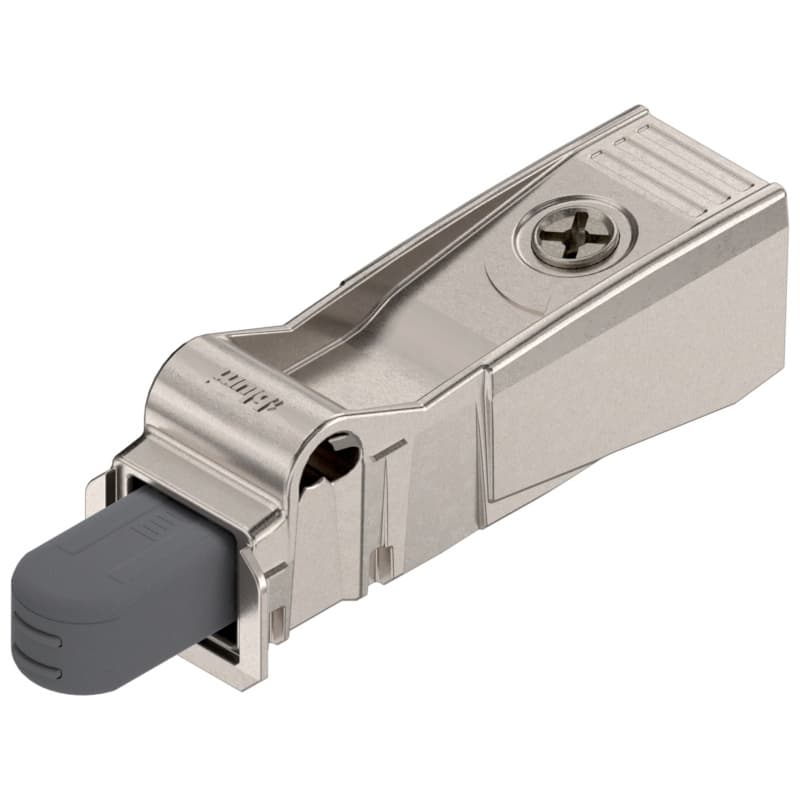

Name: Face Frame Cabinet Soft Close BLUMOTION for COMPACT Hinges, Screw-On
Brand: Blum, Inc.
Availability: InStock

Can be used for all COMPACT OVERLAYS
For applications with less than 1" overlay use spacer and 2" installation screw for optimum effect
BLUMOTION for door mounts anywhere on the hinge-side stile of the cabinet using a 1-1/4" screw or 2" screw when using spacer
The partial overlay spacer snaps onto the side of the BLUMOTION for easier mounting
Use a Phillips or POZI screwdriver to adjust the contact point in or out (+5/-5 mm). Adjust out for larger, heavier doors or in for smaller, lighter doors
For optimum BLUMOTION effect, one BLUMOTION 971A should be installed for most applications
Tall or heavy doors may require an additional BLUMOTION 971A

Quantity	Catalog
Sold in: 1 Each	B-36	BP971A9709 Mfr# 971A9709	Spacer for BLUMOTION For COMPACT 971A9709
Sold in: 1 Each	B-36	BP971A970022 Mfr# 971A9700.22	BLUMOTION Soft-Closing 971A Soft-Close Adapter for Doors, Nickel-Plated
Sold in: 1000 Each		BP8200Z1000 Mfr# 8200Z-1000	Blum #8 x 2" Pan Head Wood Screw Phillips Drive - Sharp Point Coarse Thread Nickel, 26184782 - 1000/Box
Sold in: 1000 Each		BP8114Z1000 Mfr# 8114Z-1000	No. 8 Deep Thread Wood Screw 1-1/4" Length - 1000 Box Qty

Quantity	Catalog
Sold in: 1 Each	B-36	BP971A9709 Mfr# 971A9709	Spacer for BLUMOTION For COMPACT 971A9709
Sold in: 1 Each	B-36	BP971A970022 Mfr# 971A9700.22	BLUMOTION Soft-Closing 971A Soft-Close Adapter for Doors, Nickel-Plated
Sold in: 1000 Each		BP8200Z1000 Mfr# 8200Z-1000	Blum #8 x 2" Pan Head Wood Screw Phillips Drive - Sharp Point Coarse Thread Nickel, 26184782 - 1000/Box
Sold in: 1000 Each		BP8114Z1000 Mfr# 8114Z-1000	No. 8 Deep Thread Wood Screw 1-1/4" Length - 1000 Box Qty
