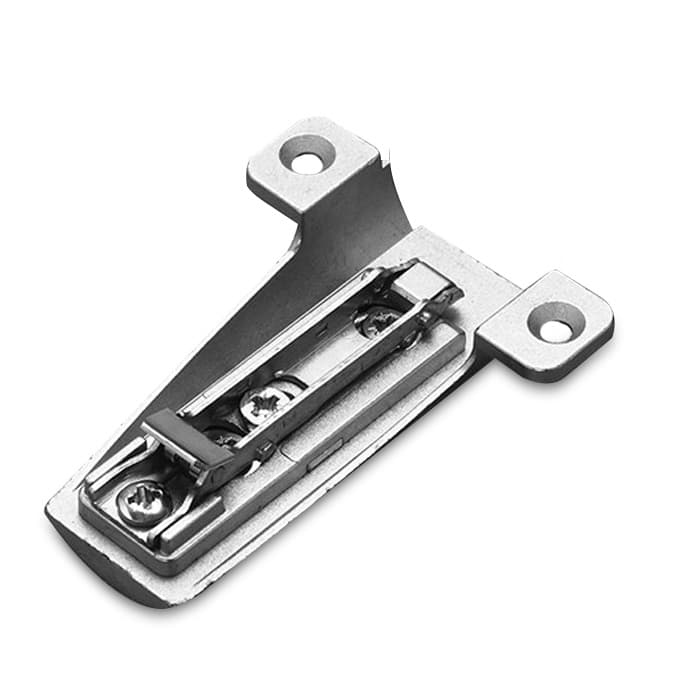

face frame mounting plate from Salice America is a die-cast steel hinge mounting plate designed for overlay applications where consistent alignment is important. The 0mm thickness keeps the door position predictable on face frame cabinets, which supports planning overlay reveals across a run. Nickel plating on the plate resists corrosion, so hinge adjustment remains usable in normal shop and jobsite conditions over time. This plate belongs to the Salice hinge mounting plates family, which keeps hardware choices consistent across a project. The mounting plate works with overlay applications covered by the 0 mm to 4 mm thickness range in the product family, so it can be matched to other overlays in the same line. The Salice BAM3R09 manufacturer part number identifies this specific large overlay, face frame, screw-on version when ordering or reordering for repeat jobs.
This screw-on face frame mounting plate is drilled for screw fastening, so the installer can secure it directly to the face frame without separate clip systems. The 0mm height plate places the hinge at a consistent reference plane, which simplifies layout when repeating the same overlay across multiple openings. Two cam plates are built into the mounting plate, so both depth and height can be adjusted with the cams after the screws are set. With cam depth adjustment from 0.5 mm to plus 2.8 mm and cam height adjustment of plus or minus 2 mm, hinge alignment can be tuned at the plate instead of repositioning the frame holes.
This Salice America face frame mounting plate is intended for overlay applications on face frame cabinets, giving a hardware solution that supports large overlay layouts. The 0mm thickness plate is part of a series that ranges from 0 mm to 4 mm, so it occupies the zero-height position within that overlay group. Being a hinge mounting plate in the Salice hardware range, it works as the interface between the hinge arm and the face frame, handling the position of the door relative to the frame. The nickel-plated die-cast steel construction is suited to woodworking environments where cabinet hinges experience repeated use, helping the mounting point remain stable over the life of the installation.
The built-in two cam plates provide a practical adjustment window, with 0.5 mm to plus 2.8 mm cam depth adjustment for setting how tightly the door sits to the cabinet. This depth range lets the installer move the door in small increments, so gaps at the stile or between doors can be refined without refastening the plate. The plus or minus 2 mm cam height adjustment allows vertical tuning at the plate, which is useful when aligning adjacent doors along a face frame rail. Because both adjustments are cam-driven on the plate, the hinge arm can stay fixed while the mounting plate takes care of reveal corrections. The 0mm mounting plate thickness establishes a neutral starting plane, which aids repeat setups when the same BAM3R09 plate is used across a bank of cabinets. The Salice BAM3R09 part number ties these adjustment characteristics to a specific component, so matching performance can be repeated whenever the same plate is specified.
The BAM3R09 plate is a Salice America hinge mounting plate designed for face frame cabinets and overlay applications, so it serves as the fixed interface between the cabinet frame and the hinge arm.
The 0mm thickness sets the hinge at a neutral reference plane on the face frame, which helps keep overlay and reveals consistent when the same plate is used across multiple doors.
The mounting plate provides 0.5 mm to plus 2.8 mm cam depth adjustment and plus or minus 2 mm cam height adjustment, allowing fine-tuning of how the door sits and lines up on the cabinet.
The plate uses die-cast steel construction to create a solid support for the hinge connection, which helps maintain door alignment under the repeated loads of everyday cabinet use.
The nickel-plated finish resists corrosion on the mounting plate surface, which helps keep the cams and hinge interface operating smoothly in typical cabinet and shop environments.
This face frame mounting plate is part of a series available in 0 mm to 4 mm thickness for overlay applications, so it can be matched with other thicknesses when a project uses varied overlays.
The Salice America face frame mounting plate with 0mm thickness, die-cast steel body, and nickel plating offers cam depth and height adjustment for overlay applications. Using the BAM3R09 part on face frame cabinets provides a repeatable mounting reference that supports consistent reveals and straightforward hinge alignment across related doors.
Sold In: 1 Each
