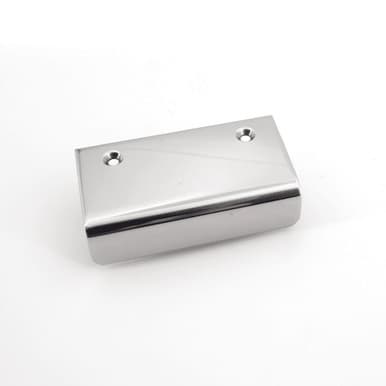

Sugatsune SN Series tab pull SN-70/M stainless

Sugatsune SN Series Tab Pull For Clean Cabinet Access

Sugatsune SN Series tab pull provides a compact pull solution that mounts by a 1-13/16 inch center to center pattern, giving a consistent hole layout when laying out multiple cabinet or drawer fronts. The SN-70/M part number identifies this specific size within the SN Series, helping match it to existing layouts on repeat projects. The pull uses stainless steel construction, providing a solid feel at the edge while resisting common jobsite handling and everyday use. The web description notes a stainless steel material with polished or satin stainless steel finish, so it can coordinate with other stainless hardware runs in the same room. The length of 2-3/4 inches sets the visible span across the cabinet edge, giving enough finger contact without dominating narrower fronts. A projection of 11/16 inch provides clearance behind the pull for fingers while keeping the profile tight to the surface for a low-profile look.

Key Stainless Steel Tab Pull Details That Matter

• The SN Series designation ties this pull into Sugatsune SN Series hardware, helping keep a consistent style when specifying edge pulls across cabinets and drawers on the same project.
• The 1-13/16 inch (46 mm) center to center dimension defines the drilling pattern, allowing accurate boring, jig setup, and repeatable spacing when installing multiple pulls in a straight run.
• The 2-3/4 inch length controls how far the pull spans across the edge, giving a compact grip that works on smaller cabinet doors or drawer fronts where longer handles might crowd adjacent fronts.
• The 11/16 inch projection determines how far the pull stands off the surface, giving room to hook fingers behind the tab while still keeping the hardware close to the face for a streamlined appearance.
• The stainless steel material supports the SN EDGE PULL,304SS,46MM CC,MATTE MIRROR description, offering a 304 stainless option suitable for coordinating with other stainless components in the same installation.
• The web description notes screw size M4 x 1 inch, which establishes the thread interface and length to match standard cabinet boring depths and common shop tooling for metric pulls.

Installation Dimensions And Hole Layout For The SN-70/M

The 46 mm center to center spacing lets installers work directly in metric or convert from the noted 1-13/16 inch pattern, which is helpful when working from mixed drawings. The 2-3/4 inch overall length gives a clear reference when positioning the pull near corners or adjacent hardware to keep consistent visual alignment. The 11/16 inch projection defines stand-off from the cabinet face, so door swing clearances and nearby surfaces can be planned around that dimension. The M4 x 1 inch screw size in the web description identifies the thread and engaged depth through typical cabinet fronts, supporting straightforward drilling and tapping where required. Together, these measurements allow the pull to be integrated into shop jigs, CNC programs, or hand layouts without guesswork about footprint or clearance.

Using The Sugatsune SN-70/M Tab Pull In Real Projects

Where This Stainless Tab Pull Works Best

The SN EDGE PULL,304SS,46MM CC,MATTE MIRROR SAP description identifies this as an SN edge pull in 304 stainless steel, aligning it with applications where a stainless look and feel are required on exposed cabinet edges. The 2-3/4 inch length suits cabinet doors and drawer fronts that need a discreet pull at the top or side edge, allowing the hardware to sit close to the edge while still offering a usable gripping area. With a center to center of 1-13/16 inch (46 mm), the pull fits layouts that balance compact spacing with enough separation for structural holding power in typical cabinet substrates. The stainless steel material supports use anywhere a metal pull is desired on decorative hardware and moldings in the handles and pulls category, tying it into broader hardware schedules. The polished or satin stainless steel finish noted in the web description lets the SN-70/M coordinate with both brighter and softer stainless finishes found on hinges, appliances, or other visible metal components.

Details That Support Consistent Alignment And Repeat Work

The SN-70/M manufacturer part number clearly tags this pull within the Sugatsune America SN Series, making reordering and matching across phases of a project straightforward when the same edge pull is specified. The 46 mm center to center measurement integrates cleanly with metric-based drilling programs, helping installers repeat hole positions accurately from cabinet to cabinet. The 1-13/16 inch reference offers the same benefit for layouts drawn in imperial units, so field measurements can be matched to shop work without conversion errors. The 11/16 inch projection lets hardware planners understand how far the pull will stand off in elevation drawings, supporting coordination with adjacent doors, drawers, and nearby surfaces. Within the decorative hardware and moldings, handles and pulls product class, these defined dimensions give fabricators and installers predictable geometry when building jigs or programming CNC drilling patterns. The stainless steel construction gives the pull a consistent mass and edge feel that stays the same from unit to unit across a full installation.

Common Questions About The SN-70/M Stainless Tab Pull

Select The SN-70/M Pull For Defined Stainless Layouts

The Sugatsune SN Series 1-13/16 inch center to center tab pull SN-70/M combines 46 mm drilling, 2-3/4 inch length, and 11/16 inch projection into a compact stainless solution for cabinet edges. The stainless steel material and polished or satin stainless steel finish options allow it to align with decorative hardware and moldings in the handles and pulls class. The M4 x 1 inch screw sizing ties this pull into common cabinet fabrication practices. For projects that call for a consistent SN edge pull across multiple fronts, this defined set of dimensions and the SN-70/M identification support straightforward specification and repeat installation.
