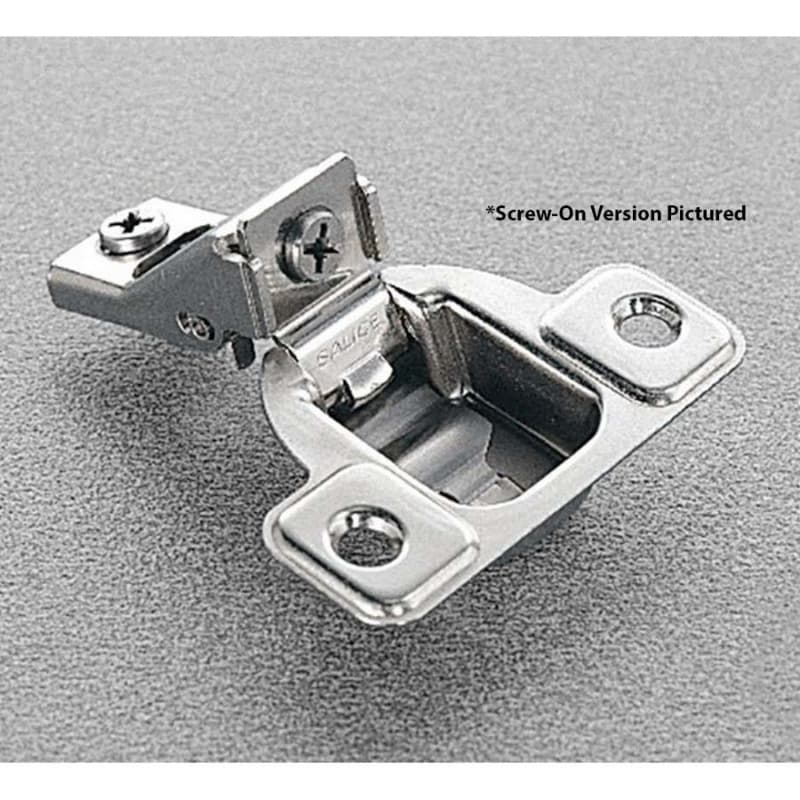

Salice Excentra S face frame hinge CSP3699 is a concealed cabinet hinge designed for 9/16 inch overlay face-frame applications, so it lets you keep a clean exterior while controlling door position on framed cabinets. This hinge provides perfect closing to any kind of door, which supports consistent alignment across mixed door runs in a shop or jobsite. All hinges are self-closing design, so once the door passes a certain point it pulls itself shut and helps reduce doors left partially open. The 106 degree opening angle lets doors swing wide enough for normal cabinet access while staying controlled for adjacent door and wall clearances. Salice Excentra face frame hinges are part of the Salice Series S line, so they align with a proven concealed hinge platform many installers already know.
This Salice self close face frame hinge uses a 2-cam adjustable hinge design, so critical movements are tuned using cam depth adjustment from plus 2.8 mm to minus 0.5 mm and cam lateral adjustment from plus 3.0 mm to minus 2 mm. Those ranges let you pull doors in or out and shift them side-to-side to close gaps and correct butt door problems without reboring. Slotted screw hole height adjustment of plus or minus 2 mm gives vertical play during mounting, so you can nudge doors up or down to align across a run while using the same drilling pattern.
This Salice concealed cabinet hinge is a face-frame hinge in the Concealed Cabinet Hinges class, so it is intended for framed cabinets where the hinge stays hidden inside. The 9/16 inch overlay setup works on installations where the door overlays the face frame by that amount, supporting common face-frame layouts. The 106 degree opening angle provides a swing that suits everyday kitchen, bath, and casework access while respecting nearby doors and obstacles. Hinge is designed to work with cabinet doors up to 3/4 inch thick, covering many standard hardwood and engineered doors used by shops and serious DIY woodworkers. All hinges are self-closing design, so the hinge actively draws the door closed, which helps maintain tidy lines on multi-door installations.
This 2 cam adjustable cabinet hinge provides cam depth adjustment from plus 2.8 mm to minus 0.5 mm, so you can fine-tune how tight the door sits to the face frame and correct slight drilling variances. Cam lateral adjustment from plus 3.0 mm to minus 2 mm lets you shift the door side-to-side, so you can straighten reveals and resolve butt door problems where doors touch. Slotted screw hole height adjustment of plus or minus 2 mm gives further control over vertical positioning, which helps line up doors across wider cabinet runs without reworking the cup holes. Excentra hinges with overlays of 1/2 inch and greater have zero door protrusion, meaning the open door does not project into the cabinet interior, which frees interior pullouts and storage elements to operate without interference. Excentra face frame hinges are designed to work with Salice Type U soft-close devices, so when those devices are used the hinge geometry supports an integrated soft-close motion path.
The Salice Excentra S face frame hinge is designed for face-frame cabinets, so it mounts in framed construction while keeping the hardware concealed.
The hinge has a 106 degree opening angle, giving generous access to cabinet interiors while still managing clearances to adjacent doors and walls.
The hinge is designed to work with cabinet doors up to 3/4 inch thick, covering many common residential and commercial cabinet door builds.
The 2 cam system offers depth and lateral adjustments, so doors can be moved in, out, and side-to-side to correct gaps and butt door issues.
Zero door protrusion means with overlays of 1/2 inch and greater, the open door stays clear of the cabinet interior, helping interior storage operate freely.
The hinge uses a cup depth of only 11 mm, allowing installation on most door styles without cutting overly deep bores into the door.
The Salice 9/16 inch overlay hinge CSP3699 combines a 106 degree self-closing action with 2 cam adjustment, so it supports precise reveals on face-frame cabinets. All steel one piece construction with nickel plating to resist corrosion keeps alignment stable in typical cabinet environments. A cup depth of only 11 mm and a hinge cup edge drilling distance of 2.5 mm work together as clear boring references, which streamlines layout for production and serious DIY projects. When overlays reach 1/2 inch and greater, zero door protrusion keeps the open door out of the cabinet interior, giving storage components room to operate. For jobs using doors up to 3/4 inch thick where clean lines and adjustability matter, this concealed cabinet hinge is a practical choice.
Sold In: 1 Each
