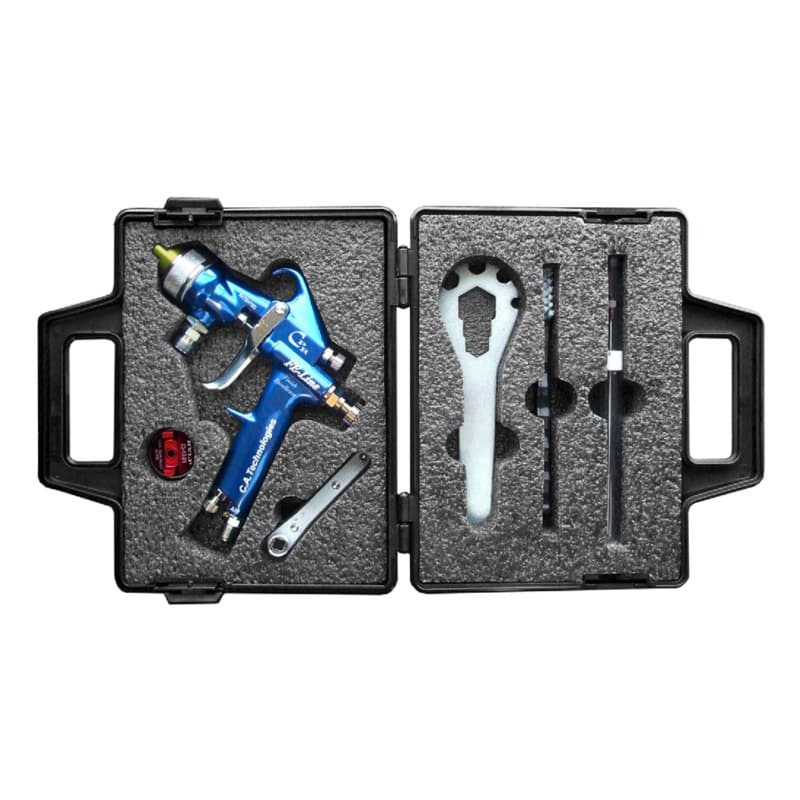

CPR-FE siphon fed spray gun combines the transfer efficiency of HVLP with the speed and finish quality of conventional air spray, so finishers get high material transfer and fast production in one setup. The CPR-FE gun is built around a compliant design, which supports finishing operations that want HVLP-style efficiency while keeping a familiar air spray feel. As a siphon fed spray gun, it draws material from a cup, giving flexibility for different coatings in typical spray equipment workflows. The CPR-FE Siphon Fed Spray Gun with 3 Tips .8 1.3 1.7 identity signals that this setup is ready for fine, medium, and heavier material work without changing to a different gun body on the job.
The air inlet of 1/4" NPS provides a standard threaded connection, so installers can thread the CPR-FE spray gun onto typical spray air hoses without special adapters when those hoses share the same thread pattern. The fluid inlet of 3/8" NPS gives a defined size for connecting the cup or fluid line, which streamlines bench setup and helps keep the gun consistently supplied during spraying. The nozzle requirement of 11 cfm at 29 psi recommended inlet pressure indicates how the CPR-FE spray gun behaves with properly configured compressed air, supporting repeatable atomization once the air system is aligned to that demand.
The CPR-FE Siphon Fed Spray Gun with 3 Tips .8 1.3 1.7 sits in the C.A. Technologies spray guns category, so it is positioned for professional spray equipment environments. The siphon fed configuration aligns with cup-fed workflows where operators change materials at the gun, which can support smaller batch or varied color runs in woodworking or similar shops. Needle/nozzle setups of 0.8mm, 1.3mm, and 1.7mm allow the same CPR-FE gun body to handle thin to heavier materials, so finishing teams can choose a setup that suits sealer, topcoat, or other coatings without changing guns. The presence of CPR2101 (11 cfm) and HVLP1301 (13.5 cfm) air caps at 29 psi lets users keep the CPR-FE gun within a known pressure window while picking between different air volumes, which supports pattern tuning in production settings.
The combination of HVLP-style transfer efficiency with the speed and finish quality of conventional air spray creates a CPR-FE spray gun profile oriented toward both material control and productivity, which matters when finish schedules are tight. The nozzle requirement of 11 cfm at 29 psi recommended inlet pressure defines the operating air demand, helping shops align compressor capacity and regulator settings so the spray pattern stays stable across passes. Having air caps CPR2101 at 11 cfm and HVLP1301 at 13.5 cfm at 29 psi gives a choice between air consumption levels, which can be matched to booth airflow and compressor performance for more predictable results. The air inlet of 1/4" NPS and fluid inlet of 3/8" NPS standardize the interface points, supporting repeatable setups when guns are swapped or serviced during ongoing finishing work.
The CPR-FE siphon fed spray gun draws coating from a cup below the gun, which fits workflows where operators change materials at the gun during different finishing stages.
The 0.8mm, 1.3mm, and 1.7mm needle/nozzle setups let users choose fluid flow suitable for fine, medium, or heavier materials, helping control film build and finish quality.
The CPR-FE spray gun nozzle requires 11 cfm at 29 psi recommended inlet pressure, which defines the air supply capacity needed for consistent atomization performance.
The CPR2101 uses 11 cfm and the HVLP1301 uses 13.5 cfm at 29 psi, so users can select an air cap that matches desired air volume and atomization behavior.
The 1/4 inch NPS air inlet and 3/8 inch NPS fluid inlet specify thread sizes, guiding selection of hoses and fittings that thread directly to the CPR-FE spray gun.
The CPR-FE spray gun combines HVLP transfer efficiency with conventional air spray speed and finish quality, supporting material control while maintaining fast production throughput.
The CPR-FE Siphon Fed Spray Gun with 3 Tips .8 1.3 1.7, supplied by Wurth Baer Supply, offers needle/nozzle setups of 0.8mm, 1.3mm, and 1.7mm alongside CPR2101 and HVLP1301 air caps at 29 psi. The 1/4" NPS air inlet, 3/8" NPS fluid inlet, and 11 cfm at 29 psi nozzle requirement define clear connection and air demand points for integrating the CPR-FE spray gun into professional spray equipment systems.
Sold In: 1 Each
Quantity | Unit Price | Catalog | ||||
|---|---|---|---|---|---|---|
Sold in: 1 Each | CX10-140 Mfr# 10-140 | GUN REPAIR KIT 10-140 For C.A. Technologies |
