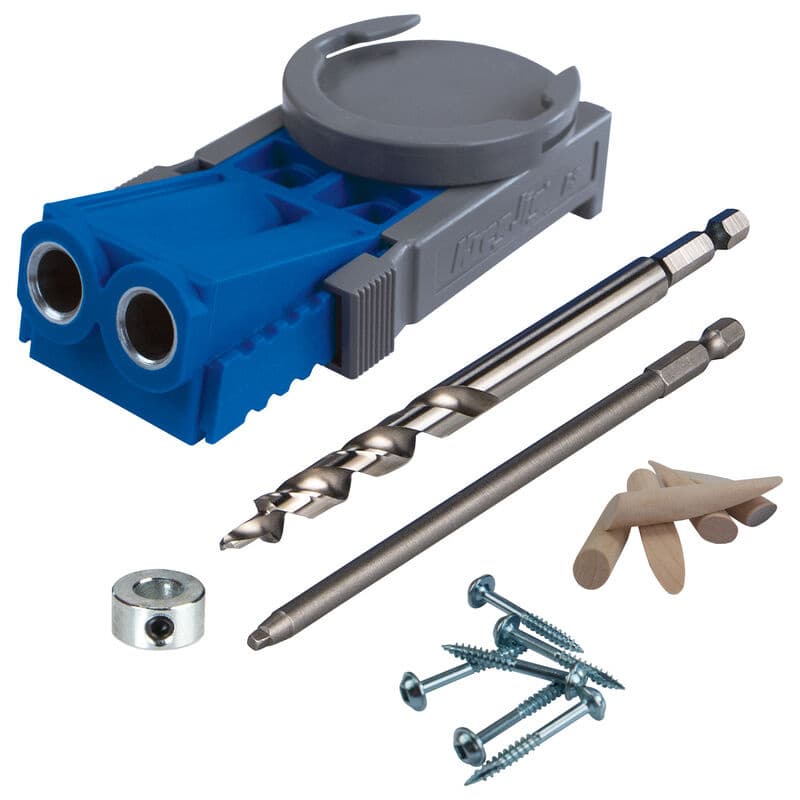

Kreg pocket-hole jig kit R3 for wood joinery

Kreg Pocket-Hole Jig Kit For Precise Joinery

Kreg pocket-hole jig kit is a handheld pocket-hole jig from Kreg Tool designed to create pocket-holes in wood projects. The jig is part of the Kreg Tools product class, so it matches common cabinet and woodworking workflows where consistent pocket-hole placement speeds assembly. The manufacturer part R3 identifies this specific Kreg JIG JR R3 POCKET HOLE SYSTEM for repeat ordering and standardizing across crews. As a jig in the woodworking tools and equipment category, it guides the drill bit to cut pocket-holes that stay consistent from part to part, which supports cleaner joints on drawer boxes, face frames, and other assemblies. Because it is a hand tool jig, it can be brought to the work rather than moving large workpieces, which helps on built-ins, repairs, or installed cabinetry where portability matters.

Pocket-Hole Jig Details That Support Daily Work

• The clamp pad adapter lets the jig be secured to the work piece with any standard bar clamp or c-clamp, which helps hold the jig steady so pocket-holes stay aligned during drilling on site or in the shop.
• The clamp pad adapter also allows the jig to be attached directly to any Kreg Face Clamp, which speeds set-up and helps repeat positioning when drilling multiple identical parts in cabinet, drawer, or frame runs.
• The material thickness setting is designed for working on materials from thin drawer boxes up to 2 x 4's, so one jig can handle typical cabinet components and structural 2 x 4 stock without changing tools.
• The Independent Easy-Press Positioning Sliders have 9 separate depth settings that join materials from 1/2 inch to 1-1/2 inches thick in 1/8 inch increments, which helps match pocket-hole depth closely to actual stock thickness for better screw engagement.
• The Easy-Press Positioning Sliders adjust by depressing the button on the side of the jig and moving the sliders until the material thickness aligns with the arrow on the jig body, which makes thickness setup quick and repeatable across multiple boards.
• The jig features an optimized drilling angle that increases driving efficiency and minimizes the overall size of the pocket-hole, so the joint uses a compact pocket that stays under 1-1/2 inches and leaves more material around the screw.

Installation And Thickness Setup For Consistent Joints

This Pocket-Hole Jig Kit uses material thickness settings to adapt the jig to different stock, which helps keep pocket-holes centered in the thickness of the workpiece. The Independent Easy-Press Positioning Sliders provide 9 separate depth settings for materials from 1/2 inch to 1-1/2 inches thick, in 1/8 inch increments, so installers can match the jig to common plywood and solid stock thicknesses. Setup is done by depressing the button on the side of the jig and moving the sliders until the material thickness aligns with the arrow on the jig body, which simplifies switching between, for example, drawer box sides and 2 x 4 components. Once set, the optimized drilling angle and compact pocket size under 1-1/2 inches help the screw drive efficiently into the mating piece while leaving surrounding wood intact.

Using The Kreg R3 Jig In Woodworking Projects

Where This Pocket-Hole Jig Fits Your Work

This Kreg Tool Pocket-Hole Jig Kit sits in the woodworking tools and equipment - hand tools - jigs category, so it is intended for wood joinery tasks such as cabinets, drawers, and frames. The ability to work on materials from thin drawer boxes up to 2 x 4's means the same R3 jig can handle light casework parts as well as heavier framing members in shop-built components. Because it can be secured with any standard bar clamp or c-clamp, the jig can be used on benches, sawhorses, or already installed pieces without dedicated fixtures. When attached directly to a Kreg Face Clamp through the clamp pad adapter, the jig can be positioned along edges and ends quickly, which helps when laying out repeated pocket-holes on rails, stiles, and stretchers. The compact pocket size under 1-1/2 inches supports tight layouts where there is limited face width to work with.

Why The Jig Settings Matter For Repeatable Results

The Independent Easy-Press Positioning Sliders with 9 separate depth settings provide a structured way to set the jig for material thicknesses between 1/2 inch and 1-1/2 inches, which helps keep screws driving into the proper zone of the mating piece. Adjusting the sliders by depressing the button and aligning the thickness mark with the arrow on the jig body creates a direct visual confirmation of the setting, which supports consistent setup when multiple team members use the same tool. The optimized drilling angle is designed to increase driving efficiency, so the screw follows the pocket path smoothly into the joint, helping reduce strain during driving operations. Because the pocket-holes are compact at less than 1-1/2 inches, more wood remains around the screw, which supports joint strength in slimmer parts like drawer sides and narrow face-frame components.

Common Questions About The Kreg Pocket-Hole Jig Kit

Select This Kreg Jig For Pocket-Hole Projects

The Pocket-Hole Jig Kit from Kreg Tool, identified as the KREG JIG JR R3 POCKET HOLE SYSTEM, provides a portable jig solution for pocket-hole joinery in wood. Its Independent Easy-Press Positioning Sliders with 9 depth settings cover materials from 1/2 inch to 1-1/2 inches thick, so it adapts to common cabinet and framing stock. The clamp pad adapter connects to standard bar clamps, c-clamps, or any Kreg Face Clamp, supporting stable and repeatable drilling. With its optimized drilling angle and compact pocket-holes under 1-1/2 inches, this jig supports efficient driving and practical joint layouts across a range of woodworking tasks.
