KV FYSCB Series Single Trash Pull-Out Use

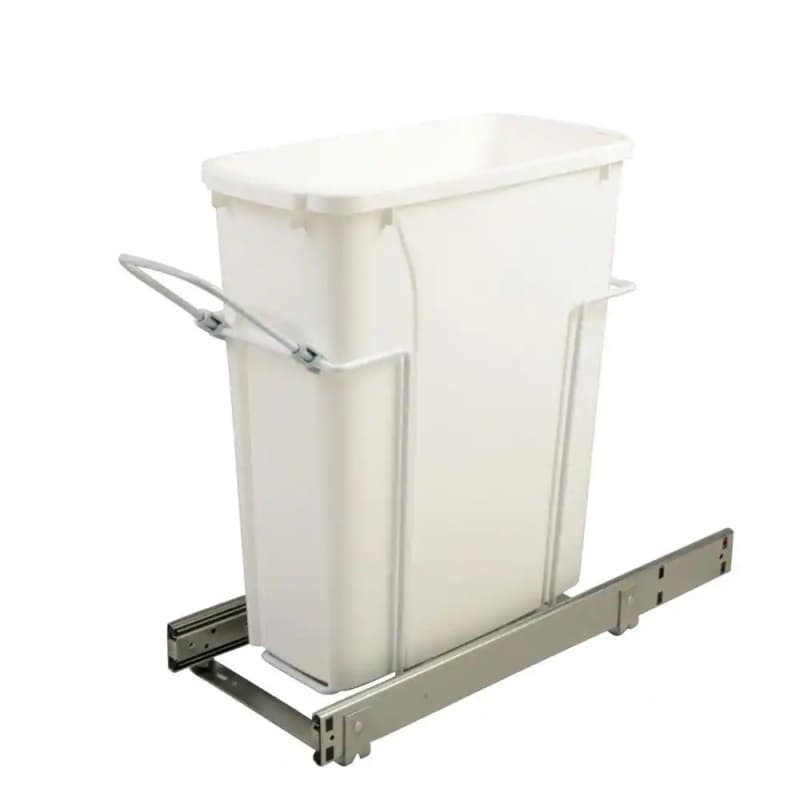

KV FYSCB series single trash pull-out is a Knape and Vogt bottom mount trash pullout designed to organize a cabinet opening with one 50 quart white waste bin. This bottom mount configuration fixes the unit to the cabinet floor, so the bin tracks squarely with the door for predictable travel. The pull-out uses soft-close technology to control closing speed, which helps protect the cabinet and slides from hard slams during daily use. Heavy duty, full extension ball bearing slides move the waste bin fully outside the cabinet, giving clear access for liner changes and cleanup. The single 50 quart bin volume supports a substantial amount of waste in one container, which can reduce trips to a larger receptacle in many kitchen or shop layouts. The SCB12-1-50WH model identification ties this unit to the FYSCB family for straightforward matching on multi-cabinet projects.

Soft-Close Trash Pull-Out Details That Matter

• Heavy duty, full extension ball bearing slides support repeatable, smooth travel of the bin, which helps the pull-out operate consistently under load.
• Soft-close technology manages the final closing stroke, which reduces impact at the face frame and helps limit wear on cabinet fronts over time.
• A specialized wire management system holds bins securely in place, which keeps the 50 quart bin from shifting during opening and closing.
• Bottom mount trash pullout construction ties directly into the cabinet bottom, which gives a stable platform for the 30 lb maximum per bin rating.
• Weight capacity of 30 lb maximum per bin, within an 80 lb total limit, supports typical household or light shop waste loads without overloading the slide system.

Bottom Mount Waste Pullout Installation Workflow

The Knape and Vogt SCB12-1-50WH uses heavy-duty mounting straps, so the installer fastens the trash pull-out through these straps into the cabinet bottom. The design accepts installation with only four screws into the mounting straps, which streamlines layout and reduces time spent marking multiple hole patterns. Bottom mount placement keeps all fasteners at the cabinet floor, leaving the side panels free for other hardware. An easy to attach handle connects at the front of the pull-out, giving a direct grab point to move the 50 quart bin assembly. Because the slides are full extension, once installed the bin clears the cabinet front, which simplifies bag changes from a standing position.

Where This Knape And Vogt Trash Pull-Out Fits

Single 50 Quart White Bin In Cabinet Use

This single 50 quart trash pull-out concentrates capacity into one white bin, which suits layouts where one main waste stream is preferred. The white bin finish keeps the container visually clean, which works well in kitchen and bath cabinets that stay open during use. The FYSCB series design positions the bin within a wire frame, which keeps the container centered over the slides during full extension. In a cabinet dedicated to trash, this configuration turns a static opening into a guided, soft-closing pull-out location.

Details Supporting Smooth, Repeatable Operation

The soft-close heavy duty, full extension ball bearing slides under the SCB12-1-50WH maintain linear travel of the bin, which supports consistent alignment over years of use. The 1 inch over-travel feature carries the bin slightly beyond full extension, which improves access to the back of the 50 quart container for bag fitting and removal. A specialized wire management system holds the bin securely, so it does not rock or shift when the pull-out reaches over-travel, helping reduce strain on the slide members. The stated weight capacity of 30 lb maximum per bin, not to exceed 80 lb total, defines a clear loading window, which supports predictable slide performance when the unit is kept within these limits.

Installer Questions On SCB12-1-50WH Answered

Selecting This Knape And Vogt Pull-Out For Jobs

The SCB12-1-50WH soft close heavy duty trash pull-out pairs a FYSCB series frame with one 50 quart white bin, full extension ball bearing slides, and a bottom mount layout. For kitchen, bath, or shop cabinetry needing a single-bin waste solution with guided, soft-closing travel, this Knape and Vogt unit provides defined load ratings and a straightforward four-screw strap installation. Specify this model when a single large-capacity, soft-close trash pull-out aligns with the cabinet design.
