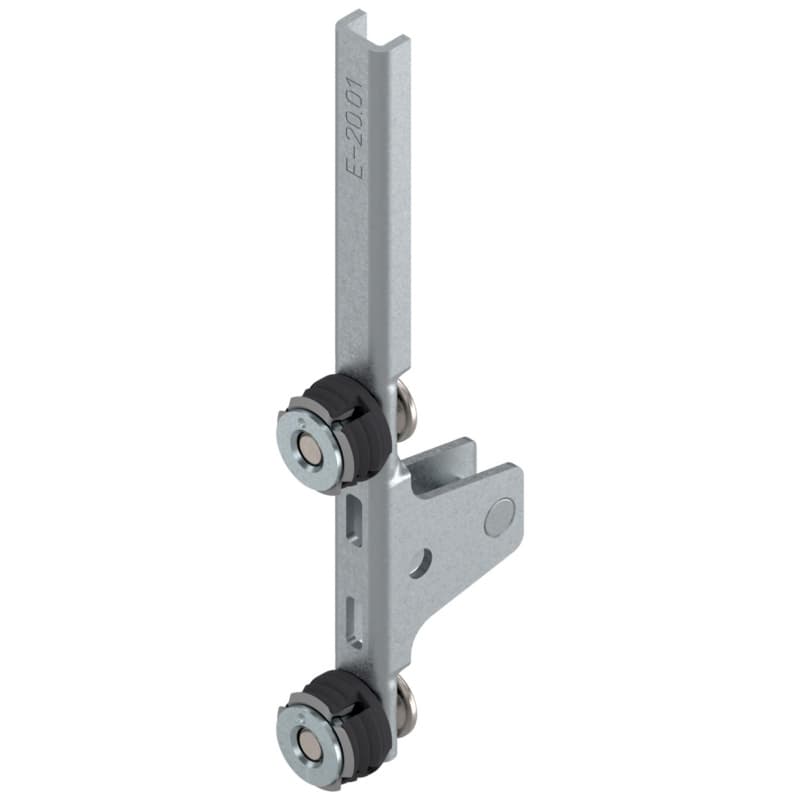

This is the Blum LEGRABOX front fixing bracket for K height drawer systems, finished in Zinc and designed for use with the EXPANDO T front-fixing interface. Non-handed, it mounts on either side of the drawer box without sorting left from right, and it is engineered specifically for the K height side profile at 128.5mm (5-1/16 inches).
A front fixing bracket is the connection point between the LEGRABOX runner system and the drawer front. It carries the front's weight, transmits the adjustment range, and determines whether the installed front sits plumb and true. In K height installations, the bracket's geometry is matched to the taller side profile, so substituting a bracket from a different height — M, C, or F — will misalign the front fixing relative to the runner and front hardware. This bracket belongs at the start of a K height parts list, not as an afterthought. It suits face-frame and frameless cabinet builds where LEGRABOX runners are already specified.
The bracket is formed steel with a Zinc finish. Zinc provides a neutral, low-glare surface that sits behind the drawer front where it is not visible in use, so its appearance is secondary to its mechanical role. Steel construction gives the bracket the stiffness needed to hold front-adjustment position under repeated load cycles. The Zinc finish on this bracket coordinates with the standard metallic hardware palette common in production cabinet shops running LEGRABOX in volume, and it will not introduce a visible contrast on the inside of the drawer box where the runner hardware is exposed.
Cabinet shops building LEGRABOX K height drawers order this bracket in quantity alongside side profiles, runners, and rear fixings. The non-handed format means one SKU covers both sides of every drawer, cutting the number of line items to manage. Designers specifying LEGRABOX for a kitchen or bath project confirm the height code first — K height corresponds to a taller drawer suitable for deeper storage — and then source matching front fixings before the install date. Installers replacing a damaged or lost front fixing bracket on an existing LEGRABOX K height installation need this exact part; a bracket from a different height or a different platform will not seat correctly in the EXPANDO T system.
No. This bracket is dimensioned for the K height side profile at 128.5mm. Each height code uses a bracket matched to its own geometry; mixing heights misaligns the front fixing to the runner.
No. The non-handed design installs on either side of the drawer box. One part number covers both sides, so you order the quantity of drawers rather than splitting the order into left and right.
No. Front fixing brackets are platform-specific. This bracket is made for LEGRABOX with the EXPANDO T interface. MERIVOBOX and TANDEMBOX use their own front fixing systems and are not interchangeable with LEGRABOX components.
The K height side profile stands 128.5mm (5-1/16 inches) tall — a mid-to-tall option in the LEGRABOX range that suits deeper kitchen drawers, pantry pull-outs, and storage applications where side height matters for retaining contents.
Mounting hardware and locking devices for LEGRABOX front fixings are system components; confirm what is included in your LEGRABOX set or order the appropriate Blum mounting accessories separately. This listing is for the bracket itself.
A mismatched or missing front fixing bracket is one of the faster ways to stall a LEGRABOX installation. Specifying the K height Zinc bracket at the same time as the runners and side profiles means everything arrives together and the drawer fronts go on without a second trip to the supplier.
Sold In: 1 Each
