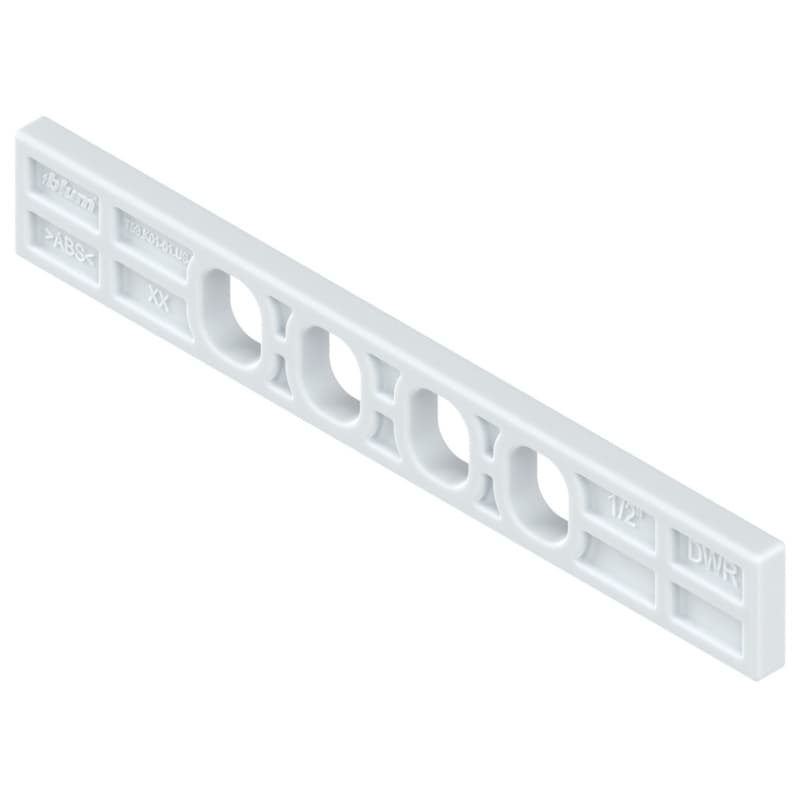

This is a 3.5mm screw-on spacer designed for the Blum MOVENTO undermount drawer system, used when thin drawer fronts would otherwise position the locking device too close to the front face for proper engagement.
MOVENTO locking devices are sized for a defined range of drawer front thickness. When a front falls below that range — thinner slab doors, narrow-profile frameless fronts, or decorative aluminum-frame fronts — the locking device sits too flush against the front and cannot clip, adjust, or release cleanly. Dropping this spacer between the drawer box and the locking device restores the correct setback so the front clips on and releases the way it should. It is a common need in contemporary kitchen and bath work where thin, flat fronts are specified for a minimal look.
The spacer is made to Blum's dimensional standards in gray. At 3.5mm, it adds a controlled, uniform offset rather than an improvised fix like stacked washers or folded tape. Because it is a screw-on component, it stays put through repeated front adjustments — important when MOVENTO's 3D adjustment feature is used to true the front after hanging. Using spacers from outside the MOVENTO system risks shifting dimensions that affect the locking device's clip geometry and the 3D adjustment range, so stick with the Blum part.
Cabinet shops and installers specifying MOVENTO in projects with thin drawer fronts are the primary audience. If a batch of drawers with standard-thickness fronts is running alongside a few with thinner profiles — a mix that shows up in transitional and modern kitchens — this spacer lets both use the same MOVENTO platform without swapping slide hardware. Homeowners replacing a lost or damaged spacer during a drawer-front swap will find it here as well.
If the MOVENTO locking device sits flush against the drawer front and the front does not clip on cleanly, or if the 3D adjustment is blocked, the front is likely too thin for a direct installation. The spacer is the correct fix — check Blum's published drawer front thickness range for MOVENTO to confirm before ordering.
No. This spacer is engineered for the MOVENTO system. TANDEM and TANDEMBOX locking devices have different geometry and their own accessories. Do not substitute across systems.
The spacer is sized to maintain the locking device within its intended adjustment envelope. Using non-Blum shims of arbitrary thickness can push the device outside that range and limit height, side, or depth adjustment.
The spacer sits between the drawer box and the locking device, behind the closed drawer front — it is not visible during normal use.
One missing spacer can stall a full run of thin-front drawers. Keeping this MOVENTO-specific component on hand means the front clips on right the first time and the adjustment holds through the life of the installation.
Sold In: 1 Each
