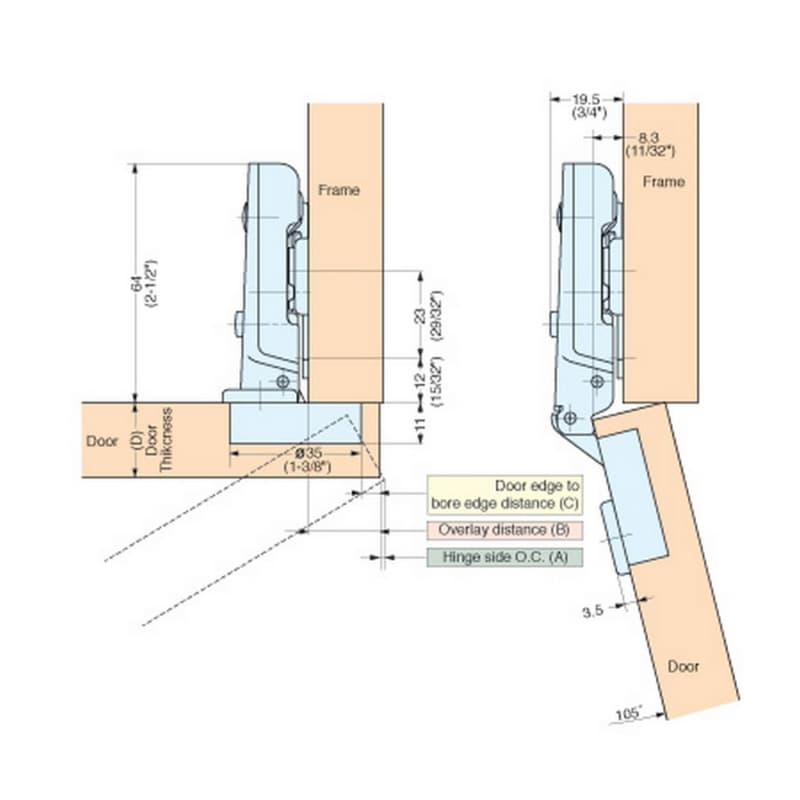

European concealed hinge 19mm overlay is a thick door full overlay 3/4 inch concealed cabinet hinge that supports modern frameless cabinet construction by hiding the hinge hardware and keeping the door overlay consistent. The thick door full overlay design works with doors built for a 3/4 inch overlay, so the face of the door properly covers the cabinet side for a clean front. Being a concealed cabinet hinge keeps the hinge arm and cup out of sight when the door is closed, which supports a streamlined cabinet appearance on residential or commercial installations. The free swinging configuration means this hinge does not use spring loading, so the door movement feels neutral and stays tied to the handle pull instead of a closing spring. The hinge belongs to the European thick door hinges family, aligning with cabinet layouts that call for a thicker door section and a long arm concealed hinge.
The full overlay 3/4 inch hinge layout anchors the hinge to work with a 3/4 inch door overlay, so boring patterns and drilling distances can follow a known European concealed hinge standard during cabinet production. Because this product is part of the concealed cabinet hinges category, the cup and arm install inside the door and cabinet interior, which keeps drilling and mounting work on the inside surfaces rather than the visible front. The European thick door hinges classification means the hinge geometry is intended for thicker doors, which affects cup depth, arm offset, and plate selection in typical shop workflows. Using the specified load capacity ranges with two to five hinges guides how many hinges are planned on tall or heavy doors, so the hinge layout supports the intended door size and material choice.
This European concealed hinge thick door configuration fits cabinet doors designed for a full overlay 3/4 inch relationship to the cabinet side, so it suits frameless cabinet runs with consistent overlay lines. As a concealed cabinet hinge, it is applied on door backs and cabinet interiors, so the visible cabinet fronts show only the door material and any pulls or knobs. Because it is categorized as a European thick door hinge, it aligns with doors that have greater thickness than standard thin fronts, which is common in custom or higher-mass cabinet doors. The 19mm overlay reference in the European concealed hinge 19mm overlay description ties directly to that full overlay application, so layout for reveals and gaps can follow that overlay value during design and machining.
The free swinging version of this hinge affects how the door behaves when opened and closed, so the motion stays smooth and predictable without a spring pulling the door against the frame. That behavior works well when coordinating this hinge with external soft-close or damping systems, because the hinge is not preloaded by a spring. The published load capacity values from 11 lbs with two hinges to 28.5 lbs with five hinges support planning hinge quantity relative to door height and material weight, keeping the door supported across its length. The Sugatsune America branding and the specific manufacturer part number 230-26/19T support accurate specification on drawings and cabinet cut lists, which reduces part confusion when ordering for multiple cabinet banks. Belonging to the concealed cabinet hinges class means shop teams can integrate this hinge into standard European boring patterns and hinge cup tooling, giving consistent results across repeated cabinet runs.
This hinge supports a full overlay 3/4 inch door relationship, so the mounted door covers most of the cabinet side panel in a frameless European-style layout.
The free swinging design means the hinge is not spring loaded for self-closing, so the door opens and closes with neutral resistance and pairs well with separate closing systems.
The load capacity is 11 lbs using two hinges, 17.5 lbs with three, 24 lbs with four, and 28.5 lbs with five, guiding hinge quantity for different door weights.
The concealed cabinet hinge design keeps the cup and arm inside the door and cabinet interior, so the cabinet front shows only the door face and hardware you choose.
This product is classified as a European thick door hinge, so its geometry is intended for thicker cabinet doors often found in custom or heavier construction.
The 230-26/19T manufacturer part number provides a precise reference, helping shops specify, source, and reorder the same hinge across multiple cabinet jobs.
This thick door full overlay hinge from Sugatsune America combines European concealed hinge construction with a 3/4 inch overlay and free swinging action, so it fits frameless layouts needing a hidden hinge line. Using the defined load capacity ranges with two to five hinges supports planning hinge counts that match door size and material weight. For cabinet runs built around European concealed cabinet hinges, this 230-26/19T model gives a consistent reference point for repeat work across projects.
Sold In: 1 Each
