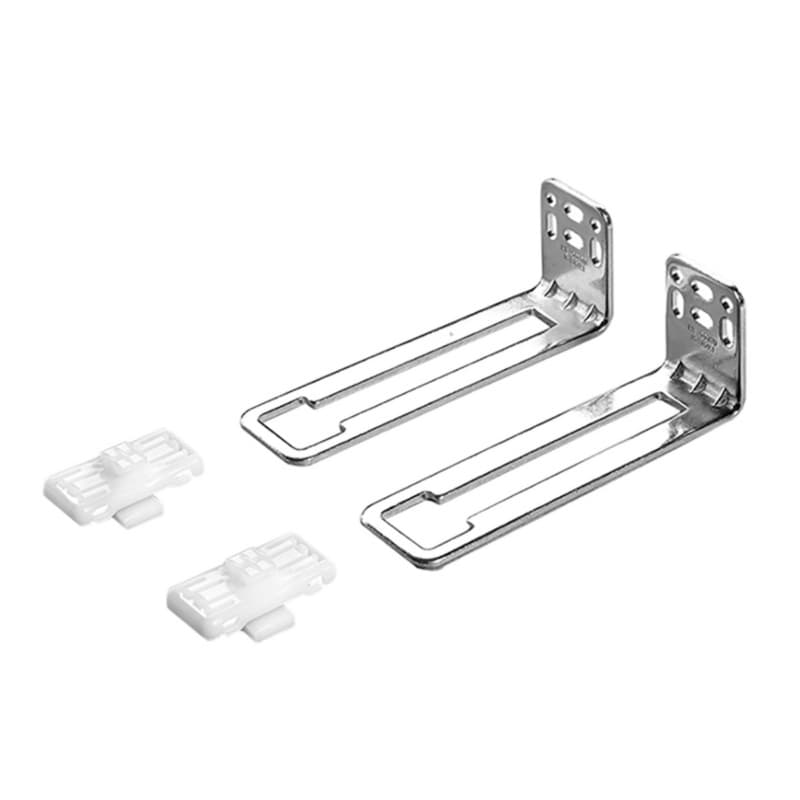

Quadro V6 IW21 rear mounting bracket from Hettich America Corporation is a rear bracket set designed for Quadro drawer slide installations where the slide must be supported at the cabinet back. The set is identified by manufacturer part number 9055093, which helps match it directly to the specified Quadro system on shop drawings or hardware lists. The web description states that the set contains 2 metal rear brackets and 2 plastic connectors, so each drawer installation gains a metal support point plus a dedicated connector interface. This rear mounting approach supports drawer slide alignment at the back of the cabinet, which is important when side walls do not provide a direct mounting surface. The Quadro V6 IW21 identification ties the brackets to the Quadro series, so installers can align this part with a known drawer slide platform.
The Hettich Quadro rear bracket set is configured for mounting at the cabinet rear with screws, giving the Quadro slide a solid support surface away from the cabinet side panels. The specified minimum four #6 pan head screws or similar per bracket means each bracket is secured at multiple points, which distributes forces along the elongated holes and fixed holes. The up to 1-15/16 inch (50 mm) depth adjustment in the bracket lets the installer shift the slide position toward or away from the cabinet face, which is useful when aligning drawer fronts with varying face frame or panel depths. The plus or minus 1/16 inch (1.5 mm) side adjustment allows the rear of the slide to be nudged left or right, which supports getting the slide parallel to the cabinet side for smoother travel and reduced binding.
The Hettich Quadro rear bracket set described as Quadro V6 IW21 rear mounting bracket is intended for use with Quadro drawer slides where rear mounting is needed instead of or in addition to direct side mounting. The mention of 2 metal rear brackets and 2 plastic connectors indicates the product is arranged to connect the Quadro slide components at the cabinet back, with metal parts providing structural support and plastic parts managing the slide interface. The non-handed two-piece design means a single part style serves both left and right sides of the cabinet, which is particularly helpful in production runs where drawers are built in batches. The note that two optional spacers are used for 1/2 inch (13 mm) drawer subfront thickness clarifies that this rear mounting concept can be adapted when a subfront panel of that thickness is part of the drawer design.
The Quadro V6 IW21 rear mounting bracket provides up to 1-15/16 inch (50 mm) depth adjustment, which lets installers shift the slide position front-to-back to match drawer length and face alignment. This depth range helps compensate for small cabinet depth variations that often arise from panel tolerances, so drawer faces can still line up consistently. The plus or minus 1/16 inch (1.5 mm) side adjustment built into the bracket design gives a controlled amount of lateral movement at the rear connection, which helps bring the slide into parallel with the cabinet sides when the opening is slightly out of square. Additional adjustment via elongated holes offers another way to reposition the bracket under the screw heads, which supports incremental tweaks without moving reference marks. The minimum four #6 pan head screws or similar per bracket instruction means the bracket is fastened at several points, which stabilizes these adjustments so they hold under drawer loads.
The Quadro V6 IW21 rear mounting bracket set supports Hettich Quadro drawer slides at the cabinet rear, using metal brackets and plastic connectors to hold the slide in position for proper drawer movement.
The Hettich 9055093 rear mounting bracket offers up to 1-15/16 inch, or 50 mm, of depth adjustment, which helps align drawer fronts when cabinet depths or drawer lengths vary slightly.
The Quadro V6 IW21 rear mounting bracket allows plus or minus 1/16 inch, or 1.5 mm, of side adjustment, giving small left-right corrections to keep slides parallel with cabinet sides.
The Quadro rear mounting bracket is fastened with a minimum of four #6 pan head screws or similar per bracket, spreading load across multiple points for stable support.
The non-handed two-piece design lets the same Quadro rear mounting bracket arrangement work on both left and right sides, simplifying inventory and installation layout.
The web description notes that two optional spacers are used when the drawer has a 1/2 inch, or 13 mm, drawer subfront thickness, adapting the bracket position to that design.
The Hettich Quadro V6 IW21 rear mounting bracket set with 2 metal rear brackets and 2 plastic connectors, part number 9055093, is built around measurable depth and side adjustment plus elongated mounting holes. That combination lets installers position Quadro drawer slides at the cabinet rear while still dialing in front-to-back and side-to-side alignment. The non-handed two-piece layout keeps left and right applications consistent across multiple drawer openings, which supports repeatable shop or field workflows. For projects where Quadro slides must anchor to the cabinet back and demand some adjustability, this rear mounting bracket set offers a defined adjustment range and a screw-mounted connection pattern suited to that role.
Sold In: 1 Set
