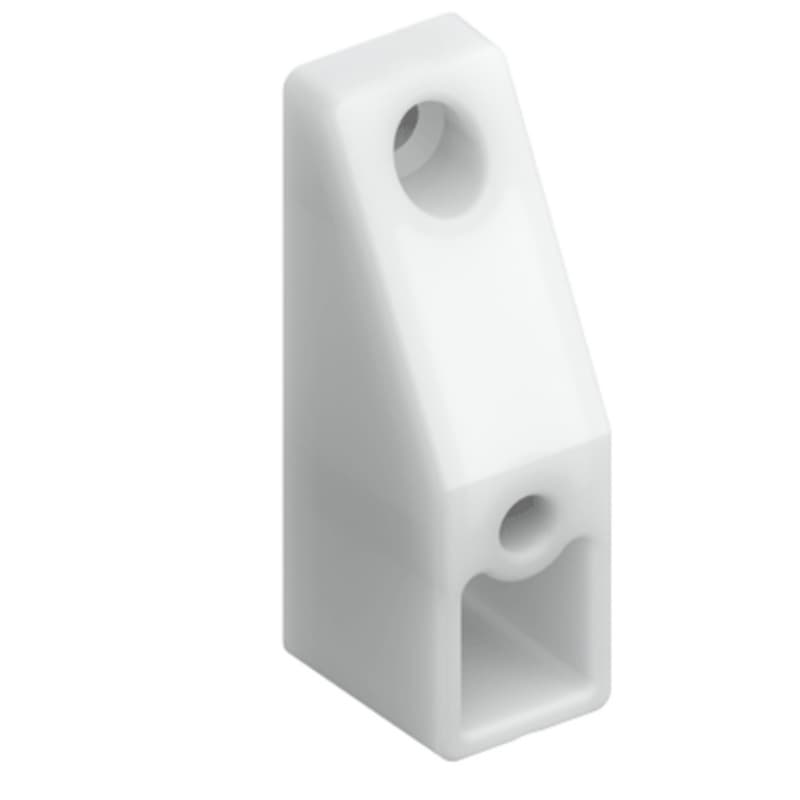

25mm spacer for Quadro is a Hettich America Corporation spacer block designed around a 25 mm, or 1 inch, thickness, which sets a predictable setback between the drawer slide and the cabinet side. This fixed 25 mm dimension establishes a consistent reference for layout, so multiple slide positions line up without constant recalculation. The spacer is described for Quadro face frame application, so it supports aligning Quadro drawer slides in face frame cabinets where the frame projects past the interior side. By matching that offset, the spacer helps bring the slide into the correct working plane, which supports smooth drawer travel when the rest of the system is installed to spec. Its white finish matches the SAP description, 25MM QUADRO SPACER BLOCK, WHITE, which helps it visually blend into light cabinet interiors and keeps the install looking clean around the hardware.
The web description specifies that installation is recommended with one 6.3 mm Euro screw or # 8 flat head screw per spacer, so each spacer block is fastened through a single point to the cabinet structure. This detail tells installers that the spacer is designed to carry its load through that screw connection, which simplifies pre-drilling and speeds up installation because there is only one fastener location to prepare per piece. Installation of the slide to the spacer is recommended with one 6.3 mm Euro screw per spacer, so the slide attaches directly to the spacer through a known screw size. Using the same screw diameter for slide attachment keeps drilling steps consistent across the run, which supports faster, repeatable installations on both cabinet sides.
The 25mm Quadro spacer block white is described for setback blocking, frameless construction, and internal pullouts, so it covers several common cabinet layouts with one part. In setback blocking applications, the 25 mm thickness acts as a fixed shim between the slide and side wall, which keeps hardware away from obstructions such as face frames or edge banding. For frameless construction, the spacer adds material where the cabinet side alone does not deliver the clearance needed, so slides can be positioned exactly where a design calls for them. Internal pullouts are also called out in the web description, so the same block can be used to position slides for pullout shelves or internal drawers behind a main door, supporting consistent spacing between the hardware and interior surfaces.
The Hettich America 1130537 spacer uses its 25 mm dimension to set clearances without extra layout, which is valuable when repeating the same cabinet detail across a kitchen or bank of casework. Because installation is recommended with one 6.3 mm Euro screw or # 8 flat head screw per spacer, installers can rely on a single fastener pattern, speeding production work where multiple spacers must be mounted in line. The slide-to-spacer connection also uses one 6.3 mm Euro screw per spacer, so the same drilling and driving steps apply whether fixing the block to the cabinet or the slide to the block. The product is categorized as a Drawer Slides Accessories item, so it is meant to integrate into drawer slide planning rather than general blocking, which helps keep hardware selections focused on slide-related functions throughout a job.
The 25mm spacer for Quadro has a 25 mm, or 1 inch, thickness, which sets a fixed setback distance for mounting drawer slides or pullout hardware inside cabinet structures.
The Hettich 25mm spacer block is recommended to be installed with one 6.3 mm Euro screw or one # 8 flat head screw per spacer, creating a direct connection to the cabinet side.
The spacer uses one 6.3 mm Euro screw per spacer to mount the slide to the block, so the same screw diameter handles the slide connection and maintains consistent drilling across positions.
The spacer block is described for setback blocking, frameless construction, and internal pullouts, so it supports slide positioning in those specific cabinet layouts.
The SAP description lists 25MM QUADRO SPACER BLOCK, WHITE, indicating a white spacer that visually blends into light interiors and keeps slide mounting components less noticeable.
Manufacturer part number 1130537 identifies this specific 25mm Quadro spacer block from Hettich America Corporation, helping match specs on drawings or reorders with the correct spacer.
The 25mm spacer for Quadro face frame application offers a 25 mm, or 1 inch, setback dimension that supports predictable slide positioning in setback blocking, frameless construction, and internal pullouts. With installation recommended using one 6.3 mm Euro screw or # 8 flat head screw per spacer and one 6.3 mm Euro screw for the slide connection, the part simplifies mounting steps around one screw size and pattern. As a Drawer Slides Accessories component from Hettich America Corporation, it fits directly into slide planning on shop drawings and job takeoffs.
Sold In: 1 Each
