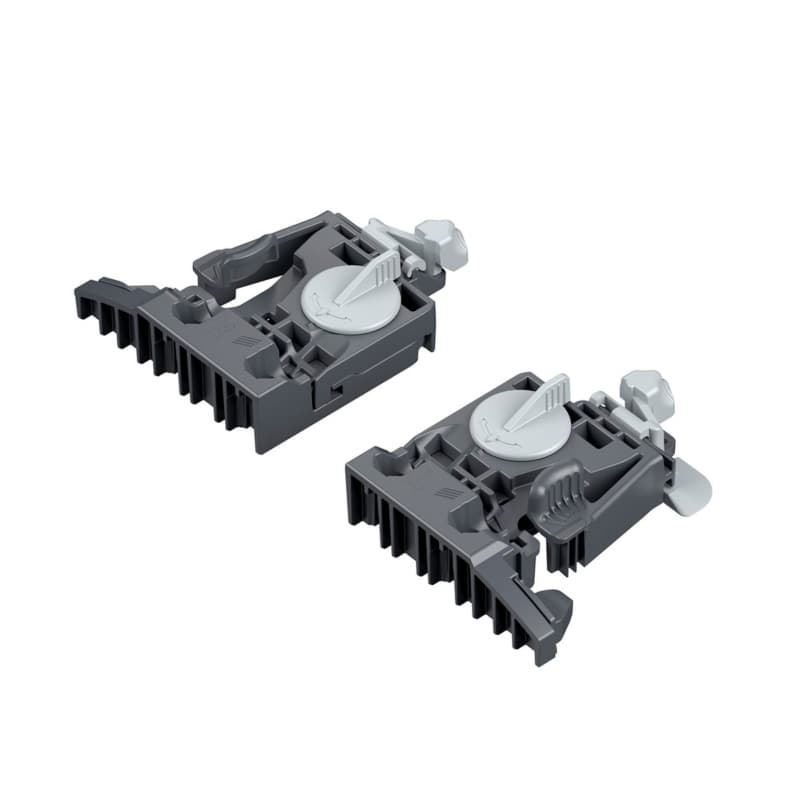

Quadro V6 2D front fixing clip for 1/2 material is a front fixing clip set designed for use with Hettich Quadro Silent System drawer slides. The clips connect the drawer front to the Quadro slide system so the front panel position can be tuned on the job. The set is made for 1/2 inch, or 13 mm, drawer material thickness, so it matches common shop-built drawer boxes using that stock. This front fixing clip set is specified for the Hettich Quadro NEW Version V6 IW21 series slides only, which focuses the application on those slide runs already using that series. The integrated height adjustment in the clip body supports precise front panel adjustment without tools, so installers can dial in reveals quickly. Side adjustment capability up to plus or minus 2 mm lets the user move the front left or right, which helps align gaps with neighboring fronts. A minimum drawer inside width of 5-1/8 inches, or 130 mm, is specified for use, so the drawer design can be coordinated with that requirement.
This front fixing clip set is described for installation with two #6 x 3/4 inch flat head screws per clip, so each clip can be anchored at two points into the drawer material. Using 1/2 inch, or 13 mm, drawer material thickness keeps the screw length and bite in line with the material depth referenced in the description. The integrated plus 3 mm tool-less height adjustment in the clip provides vertical travel of the front, which helps bring the top or bottom edge into alignment with adjacent fronts. Side adjustment up to plus or minus 2 mm gives additional tuning left or right, supporting consistent reveals along a run of drawers. The minimum drawer inside width of 5-1/8 inches, or 130 mm, is defined as a requirement, so drawer interiors planned for this clip can be sized to that dimension or greater.
This front fixing clip set is specified for the Hettich Quadro NEW Version V6 IW21 series slides, so its use aligns directly with installations built around that exact slide family. When drawers ride on Quadro Silent System drawer slides from this series, the clips connect the 1/2 inch, or 13 mm, thick drawer box front to the slide hardware. The stated minimum drawer inside width of 5-1/8 inches, or 130 mm, shapes how narrow a drawer interior can be while still accommodating the clips, which influences cabinet design when planning tight banks of drawers. The product is positioned within drawer slides accessories, so it functions as a front connection component in the overall drawer assembly rather than as the sliding element itself. With one front fixing clip left and one right in the set, the system provides a mirrored layout across the drawer front, tying each side of the front into its corresponding slide member.
The integrated height adjustment in this clip set provides plus 3 mm of tool-less vertical travel, so installers can shift the drawer front up as needed relative to the drawer box. This works together with the side adjustment range up to plus or minus 2 mm, giving horizontal fine-tuning that helps create consistent gaps on both sides of the front. Because both adjustments are built into the front fixing clip, the installer can use the clip body as the adjustment point rather than altering the drawer box or front. When this clip is used with the Hettich Quadro Silent System drawer slides, adjustments performed at the clip translate directly into the final front position on the slide system. The use of 1/2 inch, or 13 mm, drawer material thickness means the screw pattern and adjustment geometry are intended around that stock, which supports predictable behavior across multiple identical drawers. By matching the minimum drawer inside width of 5-1/8 inches, or 130 mm, across a run of cabinets, the same clip placement and adjustment strokes can be repeated from drawer to drawer.
This front fixing clip set is for use with Hettich Quadro Silent System drawer slides, specifically the Hettich Quadro NEW Version V6 IW21 series slides, so it matches that slide family.
This clip set is designed for 1/2 inch, or 13 mm, drawer material thickness, so drawer boxes built from that stock match the intended interface at the clip connection.
The front fixing clip set offers plus 3 mm tool-less height adjustment, so the drawer front can be raised slightly to align top and bottom gaps along a drawer bank.
The front fixing clip set provides side adjustment up to plus or minus 2 mm, allowing left or right movement of the drawer front to refine side reveals.
This product specifies a minimum drawer inside width of 5-1/8 inches, or 130 mm, so drawers narrower than that dimension fall outside the stated application.
Installation is described using two #6 x 3/4 inch flat head screws per clip, so each front fixing point is secured with a pair of screws into the 1/2 inch material.
This Quadro V6 2D front fixing clip set is tailored to Hettich Quadro Silent System NEW Version V6 IW21 series slides and 1/2 inch, or 13 mm, drawer material, so it fits that combination. Integrated plus 3 mm tool-less height adjustment and side adjustment up to plus or minus 2 mm give practical control over drawer front alignment. With a specified minimum drawer inside width of 5-1/8 inches, or 130 mm, and installation described with two #6 x 3/4 inch flat head screws per clip, the product details support planning repeatable drawer front mounting around this clip set.
Sold In: 1 Set
