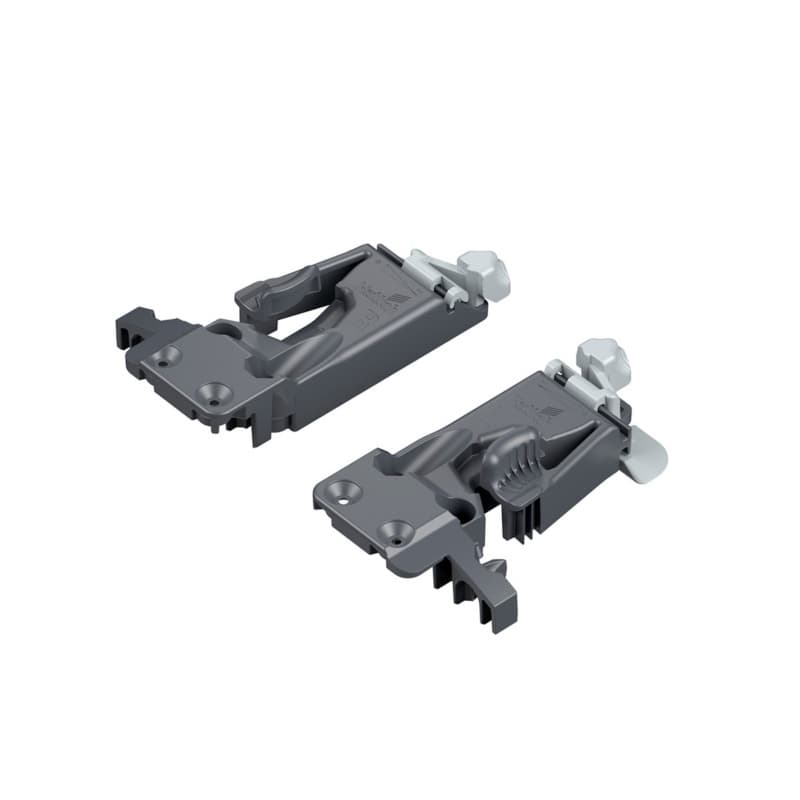

Quadro V6 1D top mount front fixing clip sets the front of a Hettich Quadro Silent System drawer on 1/2 inch material, so the front panel ties cleanly into the NEW Version V6 IW21 slides. The clip is designed for top mounting, which positions the front connection at the top edge of the drawer material to keep the slide interface consistent with the Hettich Quadro V6 system. Integrated height adjustment built into the clip shifts the drawer front by plus 3 mm, so the panel can be aligned to neighboring fronts without reworking the drawer box. The design operates without tools, so front gaps can be tuned at installation or after fit-out using only the adjustment feature molded into the clip. The clip is configured for 13 mm thick drawer material, so it matches common 1/2 inch fronts used in cabinet and furniture projects.
The Quadro V6 1D top mount front fixing clip is installed using two #6 x 3/4 inch flat head screws per clip, so each side of the drawer front gains a two-point mechanical connection that resists racking under slide movement. Positioning the clip at the top mount point of the drawer front places both screws into the 1/2 inch, 13 mm material thickness, which supports bite depth while respecting common drawer front construction. The flat head screw callout sets the screw head shape to sit flush in the clip, keeping the front connection clear for the Hettich Quadro V6 interface. Installation with these specified screws aligns the front clip body to the Quadro Silent System runner geometry, so the drawer box and front work together with the slide profile.
This Hettich America Corporation front fixing clip set is built for drawers running on Hettich Quadro Silent System slides in the NEW Version V6 IW21 series, so it fits projects that already rely on that concealed runner family. Because the clip is configured for 1/2 inch, 13 mm drawer material thickness, it suits cabinet and furniture jobs that standardize on that stock for drawer fronts or drawer sides meeting the front. The minimum drawer inside width of 95 mm, 3-23/32 inches, defines the lower size limit where the pair of clips and runner clearances perform correctly, which guides layout on narrow interior organizers using Quadro V6 IW21 slides. As a top mount front connection, the clip positions the drawer front at the upper edge of the drawer box, matching the geometry expected by the Quadro Silent System hardware and supporting smooth travel when the drawer is loaded.
The integrated plus 3 mm height adjustment built into the Quadro V6 1D top mount front fixing clip lets the installer shift the drawer front relative to the box without tools, using only the clip mechanism. This tool-less adjustment focuses on vertical alignment, which is often the last step in dialing in a run of drawers, so fronts can be nudged up to 3 mm to meet neighboring gaps. Because the adjustment is carried in the clip that also sets the front to the Hettich Quadro Silent System runner, the front remains correctly engaged with the NEW Version V6 IW21 slides while the reveal is tuned. Using the specified two #6 x 3/4 inch flat head screws per clip gives a stable base for this movement, so once the vertical position is set the front stays put under repeated opening and closing. This combination of defined material thickness, Quadro-specific fit, and built-in adjustment helps keep drawer alignment repeatable across a bank of cabinets using the same 9306537 front fixing clip.
The Quadro V6 1D top mount front fixing clip is for Hettich Quadro Silent System drawer slides in the NEW Version V6 IW21 series, so it serves that specific runner family.
The front fixing clip is designed for 1/2 inch, 13 mm drawer material thickness, so it grips and positions panels built from that stock dimension.
The Quadro V6 front fixing clip has plus 3 mm tool-less height adjustment, allowing the drawer front to shift vertically for finer gap and reveal alignment.
The Quadro V6 1D top mount front fixing clip is installed with two #6 x 3/4 inch flat head screws per clip, creating a solid attachment into the drawer material.
The front fixing clip set requires a minimum drawer inside width of 95 mm, 3-23/32 inches, so it fits narrow drawers down to that internal width.
The Hettich Quadro front fixing clip set contains one left and one right clip, so each side of the drawer front engages its corresponding Quadro Silent System runner.
The Quadro V6 1D top mount front fixing clip for 1/2 inch material ties Hettich Quadro Silent System NEW Version V6 IW21 runners to drawer fronts with the correct geometry, making it a focused choice when that slide family is already specified. Defined use with 13 mm material thickness, a minimum drawer inside width of 95 mm, and two #6 x 3/4 inch flat head screws per clip gives clear boundaries for layout and fastening. The plus 3 mm tool-less height adjustment then finishes the setup by letting the front position be tuned after the drawer is hung, so alignment becomes part of the normal install flow. When projects are built around Hettich Quadro Silent System V6 IW21 drawers, this 9306537 front fixing clip provides the matching front connection.
Sold In: 1 Set
