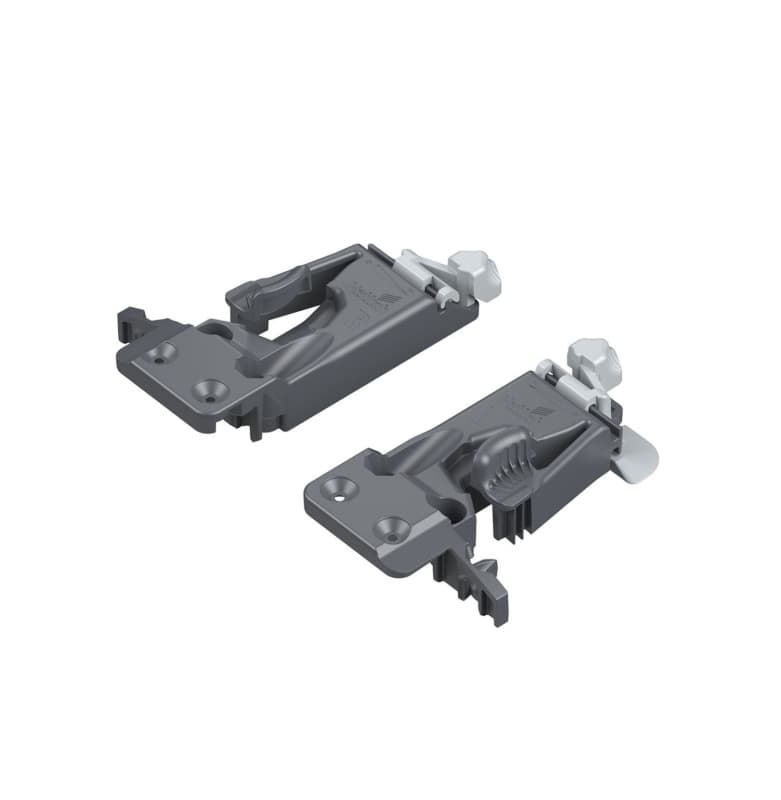

Quadro V6 1D top mount front fixing clip for 5/8 material is a front fixing clip set designed for Hettich Quadro Silent System drawer slides, so it secures the drawer front directly to the slide hardware in a controlled way. The clip is specified for use with the Hettich Quadro NEW Version V6 IW21 series slides only, which aligns the part with a precise slide family for consistent construction across a project. It is sized for 16 mm, or 5/8 inch, drawer material thickness, so it supports common stock used in many cabinet shop drawer boxes. The product is identified by manufacturer part number 9306538, giving shops and installers an exact reference when reordering or matching existing jobs. The clip set is described as providing integrated height adjustment for front panel positioning, so the drawer front can be aligned vertically to adjacent fronts during final fitting.
The front fixing clip set is intended for top mounting on Hettich Quadro Silent System slides from the NEW Version V6 IW21 series, so its geometry and engagement points correspond to that specific slide profile. It is designed around 16 mm, or 5/8 inch, drawer material thickness, meaning drawer sides of that dimension will align the clip correctly to the slide interface. The minimum drawer inside width of 165 mm, or 6-1/2 inches, indicates how narrow a drawer can be while still accommodating the clip positions, guiding layout when planning tight banks of drawers. Installation is described as recommended with two number 6 by 3/4 inch flat head screws per clip, which sets a clear fastener pattern to hold each clip firmly to the drawer box during service.
This front fixing clip set is specified for use with Hettich Quadro Silent System drawer slides, so it works within that quiet undermount slide system rather than with unrelated hardware. The note that it is for the Hettich Quadro NEW Version V6 IW21 series slides only ties its application to that revision of Quadro slides, so shop drawings can call out that exact series when standardizing a line of cabinetry. Because the clip is designed for 16 mm, or 5/8 inch, drawer material thickness, it fits drawer sides built from that stock, such as many frameless cabinet drawer boxes. The defined minimum drawer inside width of 165 mm, or 6-1/2 inches, means it is suited to small through full-width drawers that meet or exceed that internal measurement, which helps in planning storage layouts with functional narrow drawers.
The clip features integrated plus or minus 3 mm tool-less height adjustment, so the drawer front can be moved up or down within that range without separate tools. This adjustment capability allows fine tuning of vertical alignment between neighboring drawer fronts after installation, which supports consistent gaps and clean sightlines on multi-drawer runs. Because the height adjustment is built into the front fixing clip rather than a separate part, the installer can adjust at the hardware connection point where the front meets the slide. The description that no tools are needed for the height adjustment reduces steps during final fitting, because vertical corrections can be done directly at the cabinet without extra setup. Working within the defined adjustment range encourages planning of drawer front drilling and reveal targets so that the plus or minus 3 mm travel is used for small corrections rather than large repositioning during field work.
The front fixing clip set is for use with Hettich Quadro Silent System drawer slides and is specified for the Hettich Quadro NEW Version V6 IW21 series slides only, which defines its intended slide family.
The front fixing clip is designed for 16 mm, or 5/8 inch, drawer material thickness, so drawer sides built from that stock will align correctly with the clip and slide interface.
The clip provides plus or minus 3 mm tool-less height adjustment, allowing the drawer front to be shifted up or down within that range for precise vertical alignment to adjacent fronts.
The minimum drawer inside width for this front fixing clip set is 165 mm, or 6-1/2 inches, which defines how narrow the drawer interior can be when using this hardware.
Installation is described as recommended with two number 6 by 3/4 inch flat head screws per clip, establishing a fastener pattern to secure each clip to the drawer box.
The set is sold as a pair containing one front fixing clip left and one right, so each drawer uses a side-specific clip that matches the corresponding slide.
This front fixing clip set for Hettich Quadro Silent System drawer slides uses integrated plus or minus 3 mm tool-less height adjustment, so drawer fronts can be aligned to consistent reveals on site. Its design for 16 mm, or 5/8 inch, drawer material thickness supports many cabinet shop drawer box standards while tying directly to NEW Version V6 IW21 series slides. With a defined minimum drawer inside width of 165 mm, or 6-1/2 inches, and a recommended fastener pattern of two number 6 by 3/4 inch flat head screws per clip, the hardware fits neatly into planning for new builds or coordinated replacements.
Sold In: 1 Set
