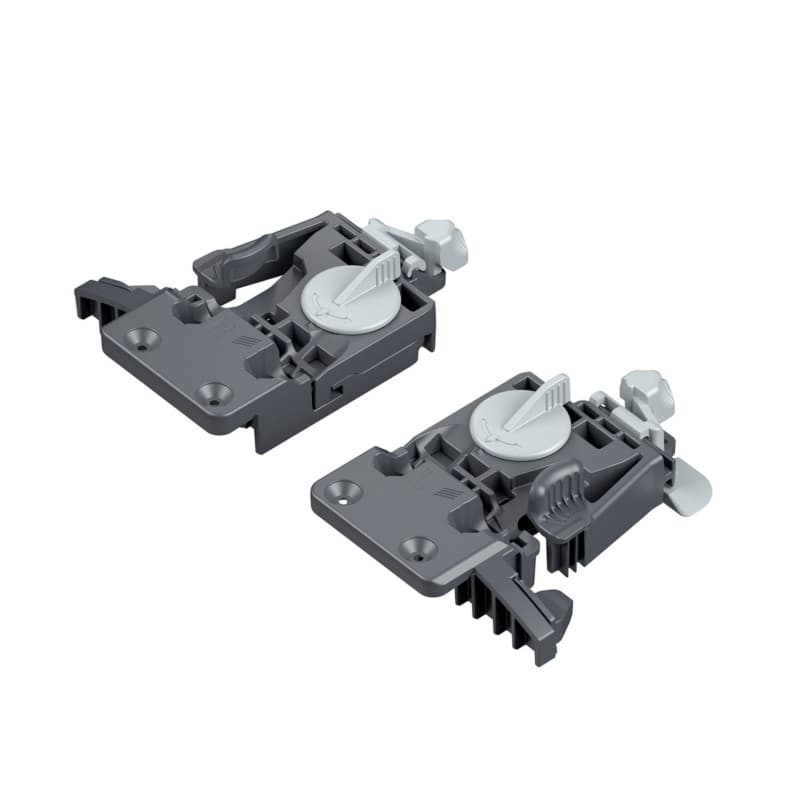

Quadro V6 2D top mount front fixing clip is a front fixing clip set designed for Hettich Quadro Silent System drawer slides, giving a defined way to secure and adjust the drawer front on these runners. The clip is specified for the Hettich Quadro NEW Version V6 IW21 series slides only, so it matches the geometry and adjustment range built into that slide family. It is engineered for 1/2 inch, or 13 mm, drawer material thickness, which lets installers pair it with common drawer side stock without changing construction methods. The set is described as a front fixing clip left and right, so the assembly provides a matched pair for both sides of the drawer front. An integrated height adjustment in each clip supports front panel alignment along the vertical axis, helping the drawer front sit even with adjacent fronts when the slide system is installed.
The clip is described as a 2D top mount front fixing clip, indicating that its mounting orientation and adjustment functions are intended to address both height and side positioning of the drawer front. Installation is recommended with two number 6 by 3/4 inch flat head screws per clip, which establishes a specific attachment method between each clip and the drawer material. Using that screw size and length ties the holding strength and seating of the clip directly to the 1/2 inch, or 13 mm, drawer side thickness, helping the clip sit flush on the material. The stated minimum drawer inside width of 5-1/8 inch, or 130 mm, gives a clear dimensional limit for drawer box design so the clips and slide system can be installed without interference between the left and right components.
This front fixing clip set is for use with Hettich Quadro Silent System drawer slides, so it belongs in installations that already specify that quiet-running runner family. The limitation to the Hettich Quadro NEW Version V6 IW21 series slides only ties the clip to a defined product generation, which helps keep the front connection consistent with the current slide profile. Because the clip is designed for 1/2 inch, or 13 mm, drawer material thickness, it suits drawer boxes built from that side thickness in kitchen, bath, or casework applications using these runners. The requirement for a minimum drawer inside width of 5-1/8 inch, or 130 mm, means the clip set is suited to drawer designs meeting or exceeding that internal width so both left and right clips can occupy their positions at the front.
The clip offers side adjustment up to plus or minus 2 mm, providing a defined range of lateral fine tuning after the drawer is hung on the Hettich Quadro Silent System slides. That sideways movement allows the front to be shifted slightly left or right relative to the cabinet opening, which is useful when aligning gaps between adjacent drawer fronts or between a drawer and door below. The integrated height adjustment delivers plus 3 mm tool-less height adjustment, so the installer can raise the drawer front within that range by using the mechanism built into the clip instead of separate tools. Because these adjustments are built into the front fixing clip, the installer can refine both the side gap and vertical reveal at the drawer front while the slide system remains fixed to the cabinet. This helps achieve an even visual layout across a bank of drawers based on the defined 2D adjustment ranges described in the product details.
The Quadro V6 2D top mount front fixing clip is for use with Hettich Quadro Silent System drawer slides, and it is specified for the Hettich Quadro NEW Version V6 IW21 series slides only.
The Hettich Quadro front fixing clip is designed for 1/2 inch, or 13 mm, drawer material thickness, so it matches drawer sides built to that dimension.
The Quadro V6 front fixing clip provides side adjustment up to plus or minus 2 mm, allowing lateral fine tuning of the drawer front once the drawer is mounted.
The front fixing clip offers plus 3 mm tool-less height adjustment, letting the drawer front be raised within that range by using the integrated adjustment feature.
This front fixing clip set specifies a minimum drawer inside width of 5-1/8 inch, or 130 mm, defining the smallest internal width where both clips can function.
Installation is recommended with two number 6 by 3/4 inch flat head screws per clip, matching the clip design to the 1/2 inch, or 13 mm, drawer material thickness.
This front fixing clip set is intended for Hettich Quadro Silent System installations using the NEW Version V6 IW21 series slides, so it aligns with that specific runner system. Its design for 1/2 inch, or 13 mm, drawer material thickness ties directly to a common drawer side build, simplifying hardware choice on those projects. The plus or minus 2 mm side adjustment and plus 3 mm tool-less height adjustment are built into the clip, letting the installer use those defined ranges to align drawer fronts in a run. With a specified minimum drawer inside width of 5-1/8 inch, or 130 mm, the clip set fits drawer boxes meeting that dimension in cabinets equipped with these Hettich slides.
Sold In: 1 Set
