Olympus Disc Tumbler Cam Lock For Casework Security

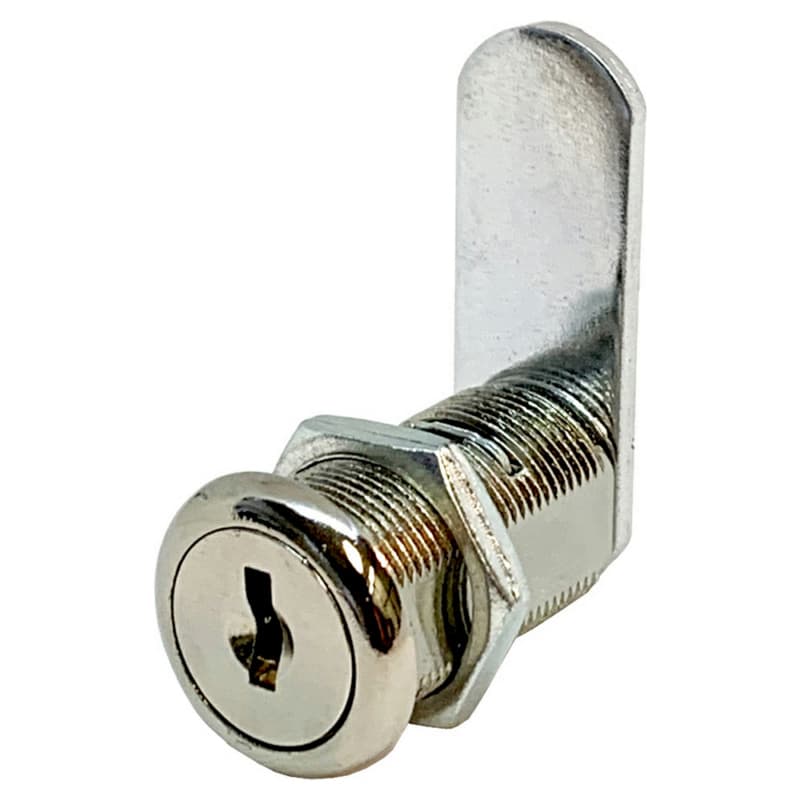

Olympus disc tumbler cam lock gives drawers and cabinet doors a keyed locking point using a 2 inch cylinder that is keyed different and master keyed, so each opening is secured while still supporting a master key system on the job. The bright nickel finish provides a clean, professional look that blends with typical cabinet hardware in commercial and shop environments. The lock comes assembled with the cylinder and body joined by a patented retainer staple, which speeds bench work by arriving ready to mount into the prepared hole. The 1-13/16 max cylinder length supports applications where the combined thickness of front and frame must stay within that length, helping plan face and frame construction. This cam lock is designed for drawers and both right-hand or left-hand doors, giving flexibility across a run of cabinets without changing hardware families.
Keyed Cam Lock Details That Support Field Work
- Passed ANSI/BHMA Grade 2 cycle test for 20,000 cycles including key insertion and removal, so the mechanism is proven for repeated daily use in typical commercial or shop environments.
- The patented cylinder and cylinder extender design allows cylinders to be swapped between different size cam lock bodies, which simplifies stocking and keying changes across multiple cabinet thicknesses.
- Lock comes assembled with the cylinder and body connected via a retainer staple, so installation focuses on mounting and cam selection rather than handling loose internal components.
- The spur washer with eyelet is designed to be screwed into place to prevent lock rotation and keep the fixing nut from loosening, which helps the lock stay aligned in the panel during long-term use.
- Custom keying typically ships direct from the manufacturer in 48-72 hours, which supports projects that need coordinated keying schemes without extended lead times.
Cam Lock Mounting, Cylinder Length, And Door Layout
The 1-13/16 max cylinder length is intended for installations where the combined thickness of the front and frame does not exceed the listed cylinder length, so cabinet construction can be planned around this dimension. For overlay application, this same combined thickness limitation helps determine whether this body is appropriate or if a different size is needed within the Olympus system. The lock provides a 90 degree cam turn, so the installer can align the strike point precisely with the frame or strike plate using a quarter-turn motion. This cam lock is specified for drawers and for right-hand or left-hand doors, so a single model can be used across mixed casework without changing the boring pattern or hardware schedule.
Applying This Olympus Cam Lock In Cabinet Projects
Where This Bright Nickel Cam Lock Fits Best
This Olympus disc tumbler cam lock is specified for drawers and both right-hand and left-hand doors, so it suits typical cabinet casework where multiple access points require keyed control. Lipped or overlay construction is supported using the 1-1/2 inch straight cam, which lets the cam reach over the lip to engage the frame in overlay jobs. Flush construction is supported using a 1-1/8 inch extension, 11/32 inch offset cam, allowing the cam to reach behind a flush front while matching the frame depth. For overlay applications, the requirement that the combined thickness of the front and frame cannot exceed the listed cylinder length helps align material choices and edge builds with the 1-13/16 max specification. The bright nickel finish works on visible cabinet faces where hardware appearance is part of the finished installation, tying in with other bright nickel components on doors and drawer fronts.
How Design Details Support Reliable Locking Results
The ANSI/BHMA Grade 2 cycle test rating of 20,000 cycles including key insertion and removal indicates the cam lock mechanism is designed for repeated locking and unlocking over time, which matters in frequently accessed drawers and doors. The revolutionary cylinder and cylinder extender arrangement lets the same cylinder be moved between different size cam lock bodies, so keying can stay consistent even as cabinet thickness changes from piece to piece. The spur washer with eyelet is meant to be screwed into the panel so it resists rotation, which keeps the locking position fixed relative to the cabinet front and reduces callbacks for re-tightening loose nuts. Key removable positions in both locked and unlocked states mean the key can be taken out after securing the cabinet or while it remains open, supporting different workflow preferences in shops or offices. Because the lock is keyed different and master keyed, each opening can have its own key while still operating under a master key hierarchy for supervisors or facility managers.
Common Questions About Olympus Disc Tumbler Cam Lock
What applications is this Olympus disc tumbler cam lock designed for?
The Olympus disc tumbler cam lock is designed for drawers and for right-hand or left-hand doors, so it suits typical cabinet casework that needs keyed locking points.
How does the 1-13/16 max cylinder length affect cabinet design?
The 1-13/16 max cylinder length means the combined thickness of front and frame must stay within that length, guiding material and face construction choices.
What does the ANSI BHMA Grade 2 20,000 cycle test indicate?
The ANSI/BHMA Grade 2 20,000 cycle test indicates the cam lock has been tested for repeated locking, unlocking, and key operations in typical service conditions.
How does the 90 degree cam turn help during installation?
The 90 degree cam turn lets the cam move from open to locked with a quarter turn, simplifying alignment with strikes and frame edges on drawers and doors.
What is the role of the spur washer with eyelet?
The spur washer with eyelet is intended to be screwed into place to prevent the lock body from rotating and to keep the fixing nut from loosening over time.
How does the master keyed and keyed different setup work in practice?
The keyed different and master keyed configuration lets each lock have its own key while still operating under a master key for higher-level access control.
Choose This Olympus Cam Lock For Coordinated Casework
The Olympus disc tumbler cam lock 961-14A-MKKD combines a 2 inch cylinder, 1-13/16 max cylinder length, and 90 degree cam turn to address common drawer and cabinet door layouts in one part number. The patented cylinder and cylinder extender system supports changing body sizes without losing keying control, which helps align multiple cabinet conditions to a single key plan. With lipped or overlay construction supported by a 1-1/2 inch straight cam and flush construction handled by a 1-1/8 inch extension, 11/32 inch offset cam, this bright nickel lock fits varied face conditions in the same project. Use these verified details to match your cabinet fronts, frame thickness, and locking layout to this Olympus cam lock for efficient, consistent installations.
