Hettich Optimat Self-Close 1/2" Overlay 3D Face-Frame Hinges, 105° Dowel - 9295583

Hettich Optimat Self Close Hinge For Face Frames

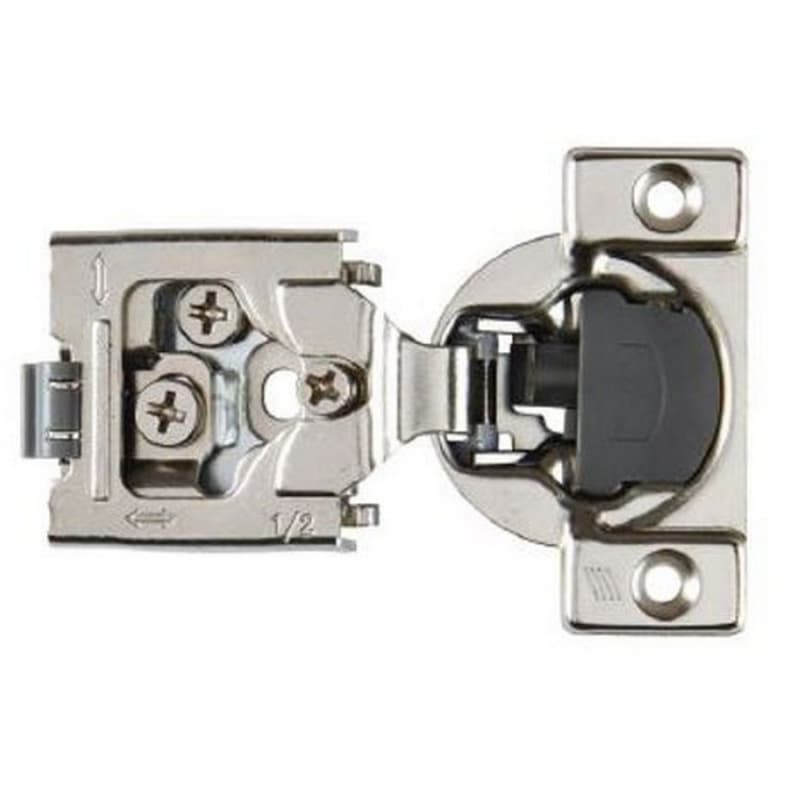

Hettich Optimat self close hinge is a concealed face frame hinge designed as a compact two-piece clip-on system, which streamlines installing and removing cabinet doors during shop work or onsite adjustments. The hinge provides 1/2 inch overlay on face frame cabinets, so doors land consistently on standard face frame layouts. A 105 degree opening angle allows doors to swing wide enough for access while staying controlled in typical kitchen and shop runs. The integrated silent system in this self-close hinge slows door closing, which reduces impact on the cabinet and helps maintain alignment over time. A 35mm cup diameter fits standard 1-3/8 inch cup boring, so existing 35mm machining patterns carry over without change. The hinge is designed for door thickness up to 3/4 inch, keeping it aligned with common cabinet door construction in many woodworking shops.

Key Optimat Hinge Details That Speed Work

• The two-piece clip-on hinge design lets the cup mount to the door and the face frame mount stay on the cabinet, which simplifies hanging and removal when fitting doors or making finish adjustments.
• Integrated silent system in the self-close mechanism slows and cushions closing, which helps limit slamming forces on hinges and face frames during everyday cabinet use.
• Six-way adjustability on this face frame hinge offers side, depth, and height cam adjustments, which supports precise door reveals and alignment without reboring or shifting mounting locations.
• The 1/2 inch overlay setup matches a common face frame door layout, which helps keep overlay planning straightforward on runs using multiple Optimat hinges.

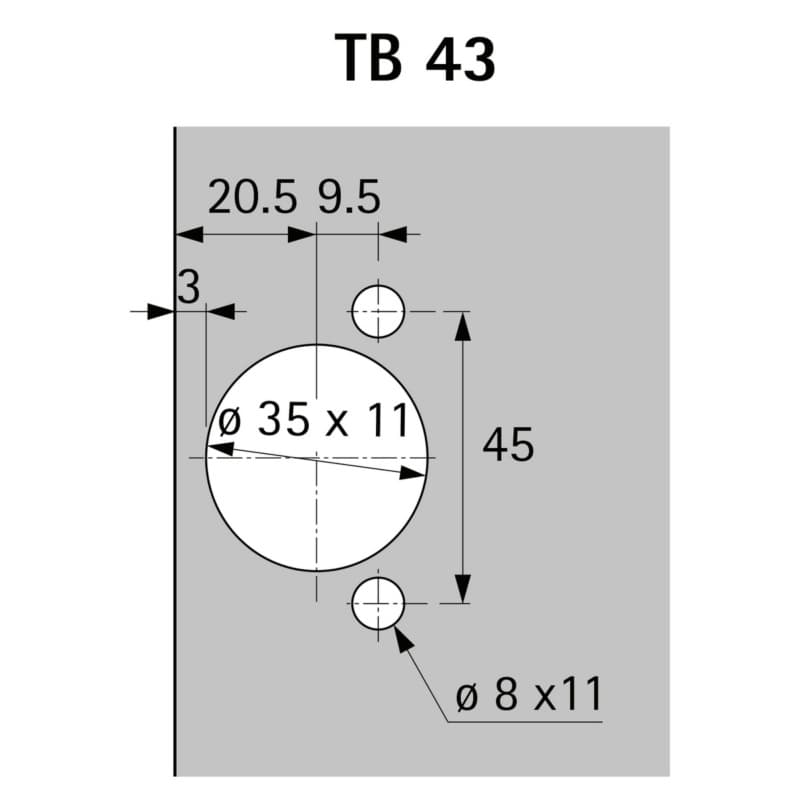

• A cup distance of 1/8 inch from the door edge and a 35mm cup diameter follow standard hinge boring practices, which fits well with existing 35mm boring equipment and jigs in the shop.

Face Frame Mounting And 3D Adjustment Details

This Optimat concealed cabinet hinge is built as a 6-way adjustable face frame hinge, so side, height, and depth can be dialed in using cams instead of moving the mounting points. Side adjustment under 1 inch overlay uses a plus or minus 1.3mm cam, and for overlays over 1 inch it uses a plus or minus 1.7mm cam, which offers controlled lateral movement for consistent gaps. Depth adjustment uses a plus 2.6mm cam, allowing the door to move in and out relative to the face frame for a clean plane with adjacent doors. Height adjustment of plus or minus 1.4mm gives vertical tuning, helping line up top and bottom reveals across a bank of doors without redrilling.

Using This 3D Face Frame Hinge In Cabinet Runs

Where The 1/2 Inch Overlay Hinge Works Best

This concealed face frame hinge is suited to cabinets using a 1/2 inch overlay layout on face frames, aligning well with many kitchen, bath, and shop cabinet designs that standardize on this overlay. The 35mm cup diameter and 1/8 inch cup distance from the door edge match typical 35mm line boring or single-head boring patterns, which helps integrate it into existing drilling processes. A door thickness range up to 3/4 inch covers common solid wood and panel door constructions, so one hinge type can be used across many door styles in the same project. The 105 degree opening angle supports day-to-day access to cabinet interiors while keeping the motion controlled by the concealed mechanism.

Adjustment Range That Supports Repeatable Results

The Optimat clip-on hinge design lets the installer separate the door from the frame-mounted plate quickly, which is useful when finishing doors or adjusting reveals across multiple openings. Side adjustment using plus or minus 1.3mm or plus or minus 1.7mm cams, depending on overlay, offers measurable lateral movement that helps bring doors into line along stiles. The plus 2.6mm depth adjustment cam gives room to move the door closer to or farther from the face frame, aligning the door face with neighboring doors or drawer fronts. Height adjustment of plus or minus 1.4mm helps set parallel top and bottom gaps along a run, reducing the need to alter boring locations after initial drilling. The hinge meets and exceeds the minimum requirements of ANSI/BHMA A156.9, which signals performance in line with recognized cabinet hardware standards in typical woodworking environments.

Common Questions About This Hettich Optimat Hinge

Selecting This Hettich Hinge For Your Next Run

The Hettich Optimat self close hinge combines a 1/2 inch overlay layout, 105 degree opening angle, and 35mm cup format, which lines up with common cabinet construction and boring routines. Its two-piece clip-on design and 6-way cam adjustments support efficient hanging, removal, and fine-tuning of doors across a full cabinet run. With an integrated silent system and ANSI/BHMA A156.9 performance, this hinge fits well when you want a concealed face frame hinge that supports precise reveals and controlled closing on everyday cabinetry.
