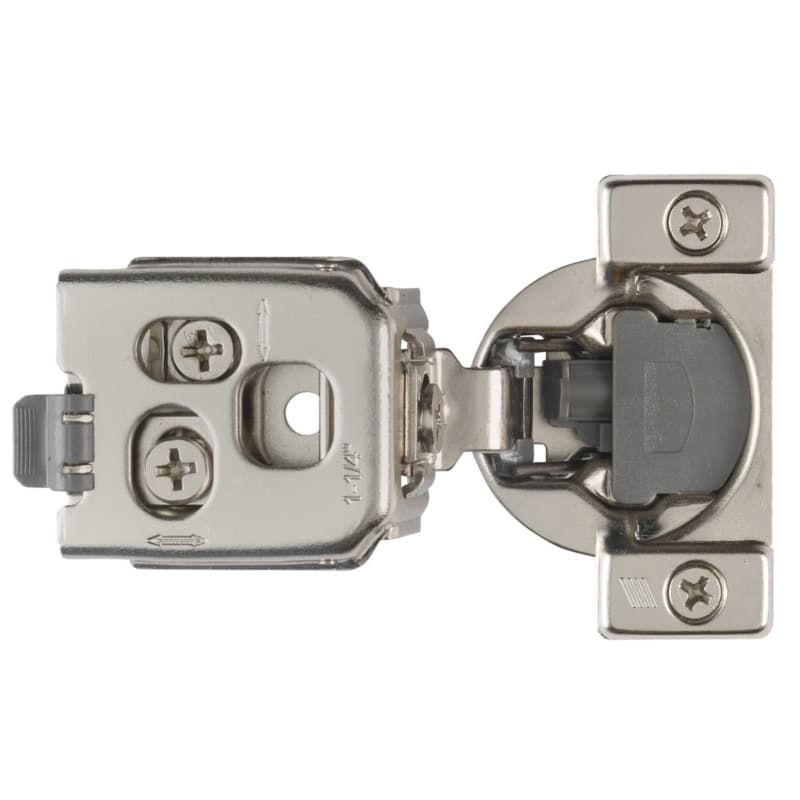

Hettich Optimat Self-Close 1-1/4" Overlay 3D Face-Frame Hinges Nickel, 105° Dowel - 9285008

Hettich Optimat Self-Close Hinge For Face Frames

Hettich Optimat self-close hinge gives you a compact concealed hinge for face frame cabinets that closes the door quietly and consistently. The hinge uses a two-piece Optimat clip-on design, so the cup mounts to the door while the separate mounting plate stays on the face frame, which supports quick door removal and re-hanging during shop work or field service. The integrated Silent System controls the closing motion, so doors are pulled shut smoothly to protect the cabinet and door edges in everyday use. This model is built for a 1-1/4 inch overlay, so it positions the door to overlap the face frame by that amount for a typical full-overlay look on many face frame layouts. As a concealed cabinet hinge, it stays hidden when the door is closed, which keeps the installed cabinet line clean while still giving you functional adjustment.

Key Optimat Clip-On Hinge Details For Pros

• The Optimat clip-on hinge is a two-piece compact hinge with the cup and plate separated, which simplifies mounting during production and allows fast removal when finishing or adjusting doors in the field.
• An integrated Silent System is built into this hinge, which manages the closing action so doors self-close smoothly against the frame for calmer motion and controlled contact on every cycle.
• Optimat is described as a 6-way adjustable face frame hinge, which means you have cam-based side, depth, and height adjustments to fine-tune overlay, reveal, and alignment after boring and mounting.
• This model is specified as a 1-1/4 inch overlay hinge, which positions the door edge relative to the face frame to achieve a larger overlay that suits many full-overlay cabinet layouts.
• The hinge is rated at 105 degrees opening, which lets doors swing out far enough for comfortable access to the cabinet interior while maintaining controlled movement at the end of travel.
• This hinge is supplied in a nickel finish, which gives the hardware a clean, neutral appearance that blends well in most cabinet interiors and is suitable for typical indoor woodworking environments.

Face Frame Hinge Fit, Boring, And Adjustment

This 3D face-frame hinge is listed for door thickness up to 3/4 inch, so standard cabinet doors in that range will sit correctly in the cup and move as intended. The cup diameter is specified at 1-3/8 inch, or 35mm, which matches common European-style boring setups used in cabinet shops and on-site jigs. A minimum drilling depth of 7/16 inch, or 11mm, allows the cup to seat fully in the door without bottoming out, supporting secure attachment. Cup distance is given as 1/8 inch, or 3mm, which defines how far the cup bore sits from the door edge and helps locate the overlay relative to the face frame. Side, depth, and height adjustments are cam driven, so once holes are bored and plates fixed, fine-tuning is done with simple cam turns rather than re-drilling.

Using Hettich 9285008 Hinges In Cabinet Projects

Where This Concealed Hinge Works Best

This concealed cabinet hinge from Hettich America Corporation is classified as a concealed face frame hinge, so it is suited for face frame cabinets where the hinge hardware needs to stay out of sight. The 1-1/4 inch overlay configuration supports layouts that call for a larger overlay on the frame, which is common on many full-overlay kitchen and bath installations. Because the hinge opening is specified at 105 degrees, the door swings out far enough for comfortable access to shelves and hardware inside the cabinet, which is helpful around busy work zones. The hinge is part of the Optimat compact family, so the hinge cup and mechanism sit tight to the door, which is beneficial in narrow cabinets or where interior space is at a premium. Nickel finish on the hinge fits well with standard interior hardware, so the inside of the cabinet looks consistent with other concealed components used in the build.

Adjustment, 3D Alignment, And Repeatable Results

The Optimat hinge is described as a 6-way adjustable face frame hinge, so it offers three axes of adjustment that can be worked from both sides of the cabinet run for precise alignment. Side adjustment is cam-based and specified as plus or minus 1.3mm under 1 inch overlay and plus or minus 1.5mm over 1 inch overlay, so you can nudge doors horizontally to tune gaps and reveals between doors or to the frame. Depth adjustment is listed as plus 2.6mm cam, which lets you pull the door closer to or further from the face frame to align the door face with neighboring fronts along a run. Height adjustment is specified as plus or minus 1.4mm via cam, which lets you shift the door up or down on the frame to correct for layout variations in boring or mounting. Dampening activation is given as 35 degrees, so the Silent System begins its work partway through the closing swing to transition the door from free movement into a controlled self-close for a consistent feel.

Common Questions About This Hettich Optimat Hinge

Select This Hettich Optimat Hinge For Face Frames

The Hettich Optimat self-close hinge with 1-1/4 inch overlay, 105 degree opening, and Silent System gives face frame cabinet projects a compact concealed hinge with 6-way cam adjustment. With 35mm cup boring, up to 3/4 inch door capacity, and defined side, depth, and height ranges, it supports accurate layout and clean reveals on new builds or hinge upgrades. For professional installers and serious DIY users working with face frame cabinets, this Optimat clip-on hinge offers a practical way to combine hidden hardware, controlled self-closing, and detailed 3D alignment in everyday cabinet runs.
