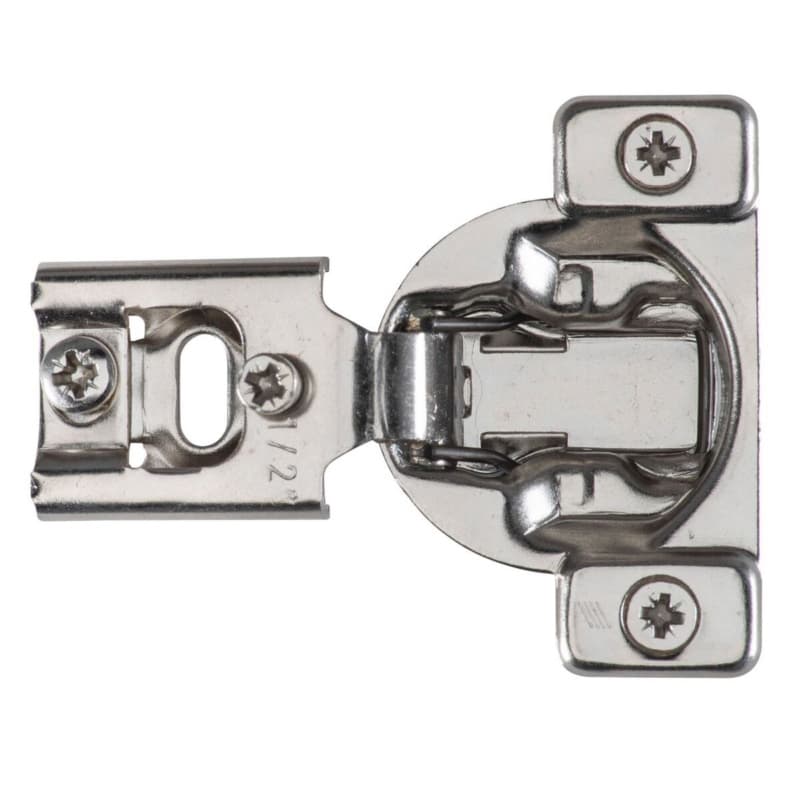

Hettich Optimat self-close hinge is a compact, two-piece concealed cabinet hinge designed for face-frame applications where a 1/2 inch overlay is required. The hinge belongs to the Optimat 3D series, giving you a 6-way adjustable face frame hinge that supports precise door positioning on professional cabinet jobs. A 105 degree opening angle lets the door swing open widely enough for everyday access while still controlling the motion within typical kitchen and bath layouts. The integrated silent system is built into the hinge, so the self-closing action also cushions the door at the end of travel, which helps protect the cabinet and door from impact during repeated daily use. This model uses a dowel design with 3-cam adjustment, which streamlines cup drilling and then gives you fine-tuning without removing the door.
This Optimat 3D, 1/2 inch overlay hinge is specified for face frame cabinets where the door overlays the frame by 1/2 inch, giving a known starting point for layout on production runs. The hinge is described as a 6-way-adjustable face frame hinge, combining side, height, and depth adjustment at the hardware, which supports in-place correction when doors are slightly off after drilling. Side adjustment under a 1 inch overlay is given as plus or minus 1.3mm by cam and over a 1 inch overlay as plus or minus 1.5mm by cam, so the lateral reveal can be dialed in with the cam system. Depth adjustment is listed as plus 2.6mm by cam and height adjustment as plus or minus 1.4mm by cam, allowing the door to be brought in, out, up, or down without remounting.
The hinge is specified as a concealed cabinet hinge in the face frame hinge category, so it is intended for cabinet doors where the hardware is hidden when the door is closed. A cup diameter of 1-3/8 inch, or 35mm, ties directly to standard European-style cup drilling, which suits many cabinet door boring patterns. The cup distance of 1/8 inch, or 3mm, defines how far the cup drilling center sits from the door edge, which supports consistent boring setups on drill presses or line-boring machines. A minimum drilling depth of 7/16 inch, or 11mm, for the cup ensures the hinge cup seats fully in the door without bottoming out, which matters when working with typical cabinet door thicknesses. The hinge is described for door thickness up to 3/4 inch, or 19mm, so it aligns with many standard cabinet door constructions, keeping the concealed cup and arm geometry inside typical material limits.
The hinge is identified as Optimat 3D with 3-cam adjustment, which ties the three axes of movement to cam mechanisms that can be rotated for fine-tuning. Side adjustment values of plus or minus 1.3mm under a 1 inch overlay and plus or minus 1.5mm over a 1 inch overlay give measurable lateral travel, which helps center doors relative to face frames and neighboring fronts. Depth adjustment of plus 2.6mm by cam lets the door move toward or away from the cabinet interior, which is useful when aligning doors with end panels or adjoining surfaces. Height adjustment of plus or minus 1.4mm by cam allows small vertical corrections at the hinge, which is important for achieving level top lines across a run of doors. The hinge is described as meeting and exceeding the minimum requirements of the ANSI/BHMA A156.9 standard, which signals that the hinge has been tested against an established cabinet hardware performance benchmark, supporting consistent operation over time.
The Hettich 9295568 Optimat model is a two-piece compact concealed cabinet hinge for face frame applications, so the hardware remains hidden when the door is closed while still allowing practical adjustment.
The hinge is specified as a 1/2 inch overlay hinge, so the cabinet door is designed to overlap the face frame by 1/2 inch, which simplifies layout for consistent runs of doors.
The Optimat hinge is listed for door thickness up to 3/4 inch, or 19mm, which matches many standard cabinet door constructions and keeps the cup and arm geometry within the material.
The hinge uses a 35mm cup diameter with a 1/8 inch, or 3mm, cup distance and a 7/16 inch, or 11mm, minimum cup drilling depth, which defines boring size and position on the door.
The hinge offers side, depth, and height adjustment via cams, so you can fine-tune reveals and door position directly on the installed hinge rather than altering drilling.
The hinge has a 105 degree opening angle, so the door swings open to a comfortable access position for everyday cabinet use without excessive projection into the room.
The Hettich Optimat self-close hinge with 1/2 inch overlay, 35mm cup, and dowel-mounted 3-cam adjustment provides a defined drilling pattern and measurable adjustment ranges that support repeatable cabinet door setup. Its classification as a 6-way-adjustable concealed face frame hinge demonstrates that side, height, and depth corrections stay available at the hinge, which is important when aligning multiple doors in a run. The integrated silent system and 105 degree opening angle work together so doors close under control and open to a practical range for everyday cabinet use. For projects calling for concealed cabinet hinges that meet ANSI/BHMA A156.9 requirements, this Optimat 3D hinge offers a consistent specification to match 3/4 inch thick doors on face frame cabinets.
Sold In: 1 Each
