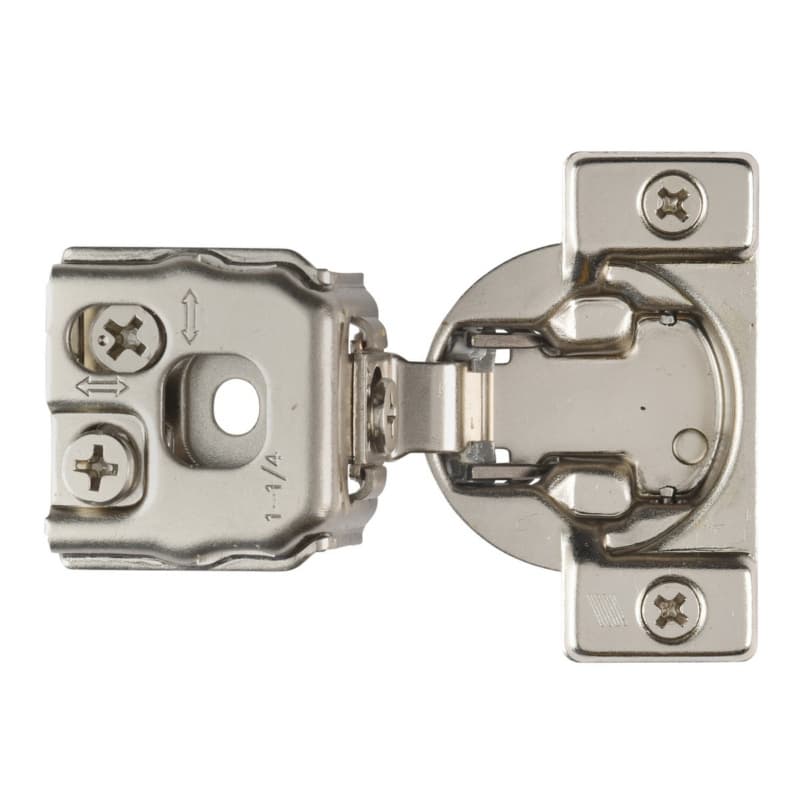

Hettich Optimat 3D face frame hinge is a concealed cabinet hinge designed as a compact two-piece clip-on hinge with an integrated silent system, so doors close quietly on everyday use in kitchens, baths, and built-ins. This self-close hinge is built for 1-1/4 inch overlay face-frame applications, giving you a standard overlay option for many residential cabinet runs. As a concealed face frame hinge, it keeps hardware out of sight, leaving a clean exterior while still giving you full access to 3D adjustments at the hinge side. The hinge is part of the Optimat 3D family, which is a 6-way adjustable face frame platform offered in three overlays, allowing consistent hardware selection across different cabinet layouts. As a concealed cabinet hinge, it aligns with projects that call for modern, frameless-style appearance on framed cabinet construction.
This Optimat 3D hinge is a face frame hinge with six-way adjustment, so you can fine-tune door alignment in height, side, and depth after the doors are hung. Side adjustment for under 1 inch overlay is plus or minus 1.3mm by cam, and side adjustment for over 1 inch overlay is plus or minus 1.5mm by cam, supporting precise gaps along the stile on varying overlay conditions. Depth adjustment of plus 2.6mm by cam lets you bring the door closer to or further from the face frame, helping achieve consistent reveals across a run. Height adjustment of plus or minus 1.4mm by cam lets you shift the door up or down on the mounting plate, which is useful for flushing tops and bottoms after the cabinet boxes are fixed.
This Hettich Optimat self close hinge offers an opening angle of 105 degrees, so the door clears the face frame enough for normal cabinet access without swinging excessively into walkways. The hinge uses a cup diameter of 1-3/8 inches, or 35mm, which matches standard European-style boring equipment, streamlining door preparation in the shop. Cup depth, listed as a minimum drilling depth of 7/16 inch, or 11mm, means the hinge seats fully in the door without breaking through a typical 3/4 inch, or 19mm, thick cabinet door. Cup distance of 1/8 inch, or 3mm, from the door edge sets the hinge position relative to the edge, which helps standardize boring patterns and jigs. Door thickness capacity up to 3/4 inch, or 19mm, aligns with common stock used for face-frame cabinet doors, so this hinge matches many standard panel builds.
The Optimat 3D hinge uses cam-based side, depth, and height adjustments, so installers can dial in reveals and margins with a screwdriver after the doors are mounted, reducing rework on prefinished parts. Side adjustment ranges of plus or minus 1.3mm under 1 inch overlay and plus or minus 1.5mm over 1 inch overlay give room to correct for small drilling or frame variations along the vertical stile. Depth adjustment of plus 2.6mm by cam allows the door to move in and out relative to the face frame, which helps align multiple doors flush across a bank of cabinets. Height adjustment of plus or minus 1.4mm by cam lets you shift the door vertically on the hinge, so you can straighten reveals along the top rail and toe kick lines without altering the casework. The hinge meets and exceeds the minimum requirements of ANSI/BHMA A156.9 standard, which indicates performance verified to that commercial cabinet hardware standard for everyday residential and light commercial use.
The Hettich Optimat 3D face frame hinge is rated for door thickness up to 3/4 inch, or 19mm, which matches many standard cabinet door constructions in residential shops.
The hinge uses a 35mm, or 1-3/8 inch, cup diameter with a minimum cup depth of 7/16 inch and a cup distance of 1/8 inch from the door edge, matching common European boring setups.
The Hettich Optimat self close hinge provides a 105 degree opening angle, allowing typical cabinet access while limiting door swing into adjacent traffic areas.
The Optimat 3D hinge offers side, depth, and height cam adjustments, so reveals and margins can be tuned on installed doors without reboring or changing the cabinet case.
As a concealed face frame hinge, this Optimat model mounts to framed cabinets while keeping the hardware hidden when the door is closed, supporting a clean cabinet appearance.
The Hettich Optimat 3D hinge meets and exceeds the minimum requirements of ANSI/BHMA A156.9, indicating cabinet hinge performance tested to that standard.
The Hettich Optimat 3D face frame hinge, manufacturer part 9295570, combines a 105 degree opening angle, 1-1/4 inch overlay, and a 35mm cup with dowel mounting, so it fits standard cabinet door construction with European boring patterns. Its 6-way cam adjustment in side, depth, and height lets you refine door reveals on site, which supports efficient finishing work across full kitchens or smaller projects. The integrated silent self-close function and ANSI/BHMA A156.9 performance rating position this concealed hinge as a practical choice for projects that call for smooth everyday operation. Use this hinge when you need a concealed face frame solution that aligns with common 3/4 inch, or 19mm, door builds and repeatable boring setups.
Sold In: 1 Each
