Hettich Optimat Self-Close 1-1/4" Overlay 3D Face-Frame Hinges Nickel, 105° Dowel - 9285004

Hettich Optimat Self-Close Hinge For 1-1/4 Inch Overlay

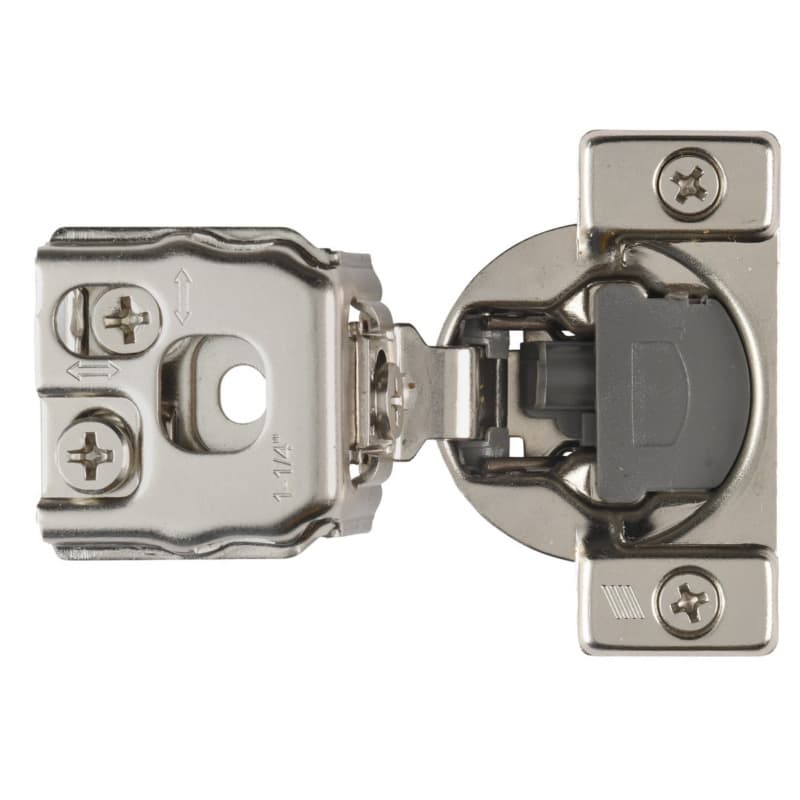

Hettich Optimat self-close hinge gives you a compact concealed cabinet hinge designed for face-frame work where a 1-1/4 inch overlay is required. This Optimat clip-on hinge is a two-piece compact hinge, so the cup mounts to the door while the arm connects to the face frame for a concealed, clean front. The hinge opens to 105 degrees, which provides a wide access angle for everyday cabinet use. A nickel finish on the hinge presents a neutral, job-site-friendly appearance at the hardware point. The hinge belongs to the concealed cabinet hinges product class, so it supports hidden hardware layouts in kitchens, baths, and general casework using face frames.

Practical Details That Support Cabinet Hinge Setup

• Optimat clip-on hinge design creates a two-piece compact hinge that lets the installer mount cup and arm separately, which supports straightforward hanging and later removal of the door during fitting.
• The hinge is described as a 6-way adjustable face frame hinge in three overlays, so the same hinge system supports overlay choice and fine-tuning in multiple directions during cabinet alignment work.
• An integrated silent system is built into the hinge, providing controlled self-close motion that helps doors settle gently, which is useful in residential and light commercial cabinet environments.
• This hinge meets and exceeds the minimum requirements of ANSI/BHMA A156.9 standard, so it has been tested against a recognized performance benchmark that matters on repeat-use cabinet installations.

Face Frame Hinge Cup And Overlay Fit Details

The hinge is made for face-frame cabinets and is described as a 1-1/4 inch overlay hinge, so it supports layouts where the door overlays the face frame by that amount. The stated door thickness capability is for doors up to 3/4 inch, which matches common cabinet door stock in many shops. The hinge cup diameter is 1-3/8 inch, or 35mm, so it works with standard 35mm hinge-boring equipment and jigs many installers already use. A cup distance of 1/8 inch, or 3mm, and a minimum drilling depth of 7/16 inch, or 11mm, define the boring pattern, which guides drilling so the cup sits correctly in the door.

Using The Hettich Optimat Hinge In Cabinet Workflows

Where This 1-1/4 Inch Overlay Hinge Fits Best

This hinge is categorized as a concealed face frame hinge, so it is intended for cabinet frames where the door overlays the face frame while keeping the hardware hidden. The 1-1/4 inch overlay specification defines the typical face-frame layout this hardware supports, which is useful when matching hinge choice to a planned reveal. The hinge is part of the Optimat clip-on line, so it suits projects where doors may be removed and reinstalled during finishing or fitting by clipping the hinge parts apart. Because door thickness is listed as up to 3/4 inch, this hinge matches many standard cabinet door builds using common panel and frame stock.

3D Adjustments And Silent System For Repeatable Results

The hinge is described as a 3D, 6-way adjustable face frame hinge, so it offers side, depth, and height adjustments that help installers dial in reveals after mounting. Side adjustment under 1 inch overlay is plus or minus 1.3mm by cam, and over 1 inch overlay it is plus or minus 1.5mm by cam, so the cam controls give lateral movement to straighten gaps along the cabinet frame. Depth adjustment of plus 2.6mm by cam lets the door move in and out relative to the cabinet, which is useful to flush doors across a run. Height adjustment of plus or minus 1.4mm by cam lets the door move up or down on the frame, helping align top and bottom edges across multiple doors. The hinge has an integrated silent system and is identified as self-close, so the hardware controls closing motion while pulling the door shut, which supports consistent closing behavior in daily use.

Key Hettich Optimat Hinge Questions From Installers

Selecting This Hettich Optimat Hinge For Your Next Job

This Hettich Optimat self-close hinge pairs a 1-1/4 inch overlay face-frame layout with a 35mm cup and 3/4 inch maximum door thickness, so it aligns with common cabinet constructions. With 6-way cam adjustment and an integrated silent system, it supports precise alignment and controlled closing behavior on residential and light commercial casework. For projects calling for a concealed 105 degree face frame hinge that meets ANSI/BHMA A156.9 requirements, this Hettich America Corporation Optimat model 9285004 provides the specified performance profile.
